The PET-7017-10 is a PoE-powered Ethernet analog input module for engineers who need voltage or current measurement on a networked I/O node. Its inputs can be set as 10 differential or 20 single-ended channels in software, and each channel can be given its own range, so one module can serve mixed sensor types on the same network.Each channel offers a choice of voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA, selected with jumpers. Resolution is 16-bit, and the module has two sampling modes: normal mode at 10 Hz total and fast mode at 50 Hz total. Open wire detection is available for 4 ~ 20 mA inputs, and differential channels are rated for 240 Vrms overvoltage protection.Configuration and monitoring are handled through a built-in web server with Web HMI, and the module supports Modbus TCP and Modbus UDP. Access is controlled by ID, password and IP filter. The unit is powered either from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

AR-200 CR is a dynamic signal acquisition module for vibration monitoring and analysis. It accepts two IEPE accelerometers, each supplied with a built-in 3 mA excitation current, and digitises the signals with a 16-bit converter. Sampling of both channels runs simultaneously, at rates up to 200 kHz per channel.Recordings are written to a Micro SD card, so data can be taken away and analysed offline. Capture can be started by a push button, a schedule, an analog threshold, a digital input or a remote command from the supplied utility on a host PC, which also lets you set the sampling rate and scheduling for each application. A single relay output and one digital input add basic event handling to the unit.The logger suits panel or machine installations that need to run unattended. It works from a wide +10 to +30 VDC supply, operates from -25 to +75 °C, and provides 4 kV contact ESD protection on all terminals. Mounting is by wall or DIN-rail.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation

The AR-400 is a dynamic signal acquisition module for vibration monitoring and analysis. It samples four channels simultaneously with 16-bit resolution and supplies a built-in 3 mA excitation current for IEPE accelerometers, so compatible sensors can be connected directly without an external supply.Acquired data is written to a micro SDHC card (4 to 32 GB), allowing offline analysis after capture. Recording can be started by push button, schedule, analog threshold, digital input or remote trigger from the utility software installed on a host PC, which also handles sample rate and sampling schedule settings.Suited to condition monitoring setups where vibration data must be captured at defined times or on defined events.Includes a relay output (Form A, 5A@250 VAC) and a digital input for use within trigger or control logic.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation

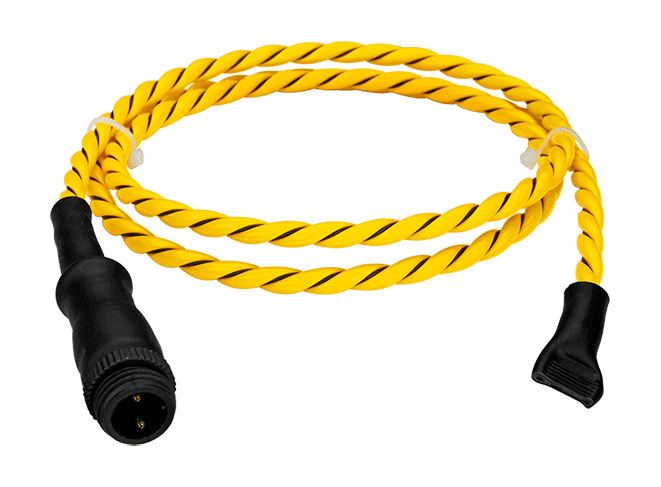

CA-LLD-DC100-L010 is a 1 m liquid leak detection cable for monitoring large areas where leaks may travel along an unpredictable route. Its sensing wires make it a practical choice for open floors and surfaces with several possible leak points, rather than a single fixed sensing spot.The cable has a 6 mm fluoropolymer carrier. Its sensing wires are 2 × 30 AWG, enclosed in a conductive fluoropolymer jacket. It can be fixed directly to water supply and return lines, so it can cover pipework as well as the surrounding floor area. The maximum continuous operating temperature is 70 °C.This ordering code is the without position variant, supplied in a 1 m length. It is RoHS and WEEE certified.ApplicationsLeak detection in open areasMonitoring water supply and return linesCovering larger surface areas with multiple potential leak points
