Controller/Server

The BRK-2841M CR is a metal-cased MQTT communication server for machine-to-machine and industrial IIoT networks. It acts as a broker for distributing MQTT messages and as a concentrator for field data, supporting MQTT V3.1, V3.1.1 and V5.0 clients.Broker features include QoS message delivery, retained messages, identity authentication, communication encryption, Last Will messages and bridging. Settings are made through the browser-based Web UI, which reduces the effort of setting up and maintaining a broker. For resilience, several units can be grouped into a redundant system using the bridge, cluster, load balancer and high-availability functions, so that a hardware or network failure does not halt field services.Data can be written directly to mainstream databases such as MySQL. During connection outages, data is buffered to a MicroSD card (sold separately) and back-filled once the link is restored.ApplicationsBridge architecture deploymentsRedundancy architecture deploymentsCluster architecture deploymentsPlastic injection molding machine monitoring

UA-2241M is an IIoT communication server for linking field devices with MES, ERP, SCADA and cloud platforms. It acts as a gateway to remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, and republishes that data as OPC UA, MQTT and SNMP at the same time.The unit also works as a data logger. I/O data can be written to a remote MS SQL, MySQL or MariaDB database and saved locally in CSV format on a microSD card. An offline data recovery mechanism is provided for the remote database, and data can be forwarded to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeak. IFTTT logic triggers can send event notifications to mobile apps.Hardware includes two RJ-45 Ethernet ports, two RS-485 ports (2500 VDC isolated), two RS-232 ports, a 1.0 GHz ARM CPU and a DIN-rail metal housing. One optional XV-board can add I/O or RS-485 expansion. The product is marked CE, UKCA, FCC, RoHS and WEEE.ApplicationsConnecting remote I/O and controllers to MES, ERP and SCADA systemsIIoT data collection and forwarding to cloud platformsHistorical I/O data logging to remote databases and local storageIT/OT protocol integration and interoperability

UA-2241MX-4GC CR is a metal IIoT communication server for engineers who need to connect field I/O and controllers to MES, ERP, SCADA or cloud services without writing custom middleware. It polls remote I/O and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, then republishes the data as OPC UA, MQTT and SNMP at the same time.Data logging is handled in two places. I/O values can be written directly to a remote MS SQL, MySQL or MariaDB database, with offline data recovery for the remote database, and kept as CSV files on a 32 GB microSD card. Cloud links cover Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT can trigger mobile app notifications when an event occurs.The CR variant carries the 4G LTE radio configured for the China frequency bands, with FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41. Security options include HTTPS, an OpenVPN client, SNMP V3, communication encryption and a dynamic blocklist with whitelist support.ApplicationsIIoT integration between operational technology devices and IT systemsConnecting remote I/O and controllers to MES, ERP and SCADA systemsCloud data upload to Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeakRemote data logging to MS SQL, MySQL and MariaDB databasesEvent notifications to mobile apps via IFTTT

The UA-2241MX-4GE is an IIoT communication server with a metal casing, designed to bridge field devices and IT systems. It reads data from remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT or EtherNet/IP, then republishes that data as OPC UA, MQTT and SNMP at the same time for MES, ERP, SCADA and cloud platforms.Data logging is handled in parallel. I/O values can be written directly to a remote MS SQL, MySQL or MariaDB database while a copy is kept as CSV files on the microSD card, and an offline data recovery mechanism supports the remote database. Cloud links cover Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT logic can trigger app notifications when an event occurs.The 4G LTE (FDD) variant with the CR ordering code is offered for Asia only, except China. Two Ethernet ports, RS-232 and RS-485 serial ports, and a DIN-rail mounted metal housing with a -25 ~ +75°C operating range suit industrial cabinet installations.ApplicationsConnecting shop-floor I/O and controllers to MES, ERP and SCADA systemsIIoT cloud data upload to Azure, AWS, IBM Cloud and ThingSpeakRemote data logging to MS SQL, MySQL and MariaDB databasesEvent-driven notifications through IFTTT

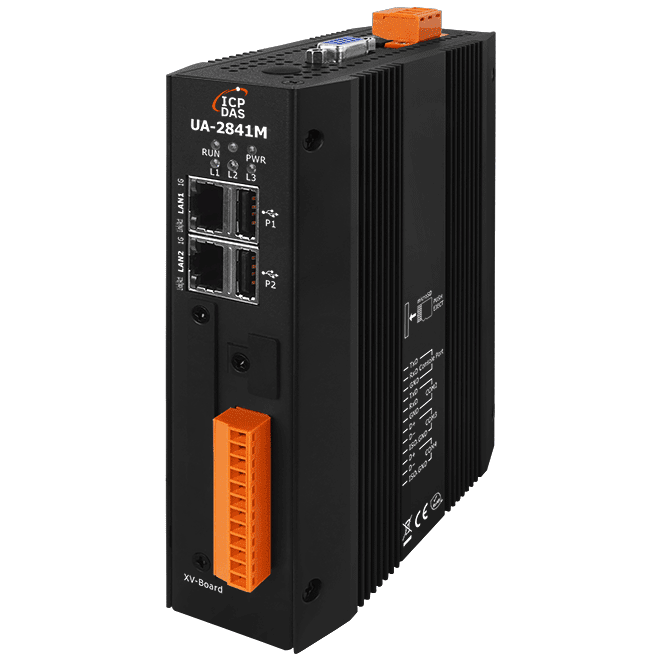

UA-2841M CR is an IIoT communication server that bridges operational technology devices and IT systems. It polls Modbus TCP, Modbus RTU/ASCII and EtherNet/IP devices and publishes the data over OPC UA, MQTT, SNMP and RESTful at the same time, which suits links to MES, ERP, SCADA and cloud services.Data logging works in two ways. Records can be written directly to a remote MS SQL, MySQL, MariaDB or PostgreSQL database, with up to three database connections and 1000 tags, or saved locally as CSV files on a microSD card. An offline data recovery mechanism is provided for the remote database.The metal-cased unit runs a quad-core ARM 1.6 GHz CPU with 2 GB DDR4 SDRAM and 8 GB eMMC storage, and mounts on DIN-rail. It accepts +12 ~ +48 VDC power and has an operating temperature range of -25 ~ +70°C.ApplicationsIndustrial IoT communication protocol conversionIT communication protocol conversionLocal and remote database records

IIoT Communication Server with 1 Ethernet Port (Plastic Case).

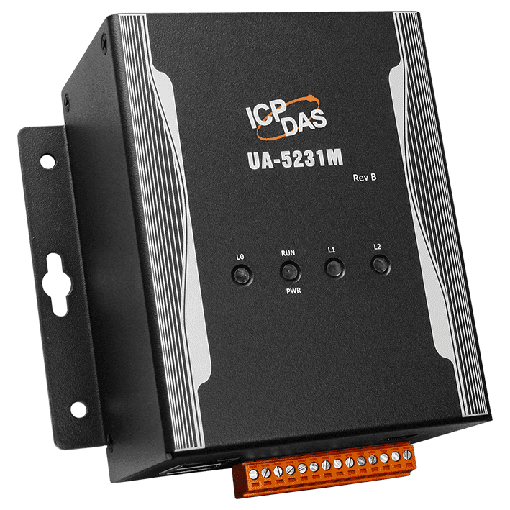

UA-5231M CR is an IIoT communication server that links IT and OT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT or EtherNet/IP and republishes that data as OPC UA, MQTT and SNMP at the same time, so one unit can serve MES, ERP, SCADA and cloud systems together.The data logger writes I/O data to a remote MS SQL, MySQL or MariaDB database and to CSV files on a microSD card, building a local historical record. An offline data recovery mechanism protects the remote database connection, which supports one database connection with up to 1000 tags. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT can trigger app notifications when an event occurs.Security options include HTTPS, an OpenVPN client, SNMP v3, communication encryption and dynamic blocklist and whitelist filtering. The metal case mounts on DIN-rail and is rated for -25 ~ +75°C operation. An optional XV-board can add I/O or RS-485 ports, on Rev.B units only.ApplicationsConnecting remote I/O and controllers to MES, ERP and SCADA systemsUploading I/O data to cloud IIoT platformsHistorical data logging to remote databases and local filesEvent-triggered notifications via IFTTT

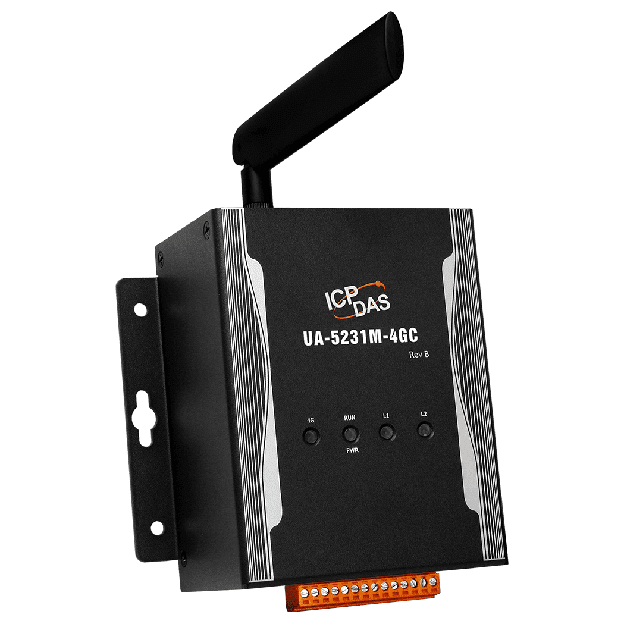

The UA-5231M-4GC CR is an IIoT communication server that bridges field devices and business or cloud systems. It works as an IIoT gateway, polling remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII and EtherNet/IP, then republishing the data as OPC UA, MQTT and SNMP at the same time. This suits integration with MES, ERP and SCADA platforms.Data logging works on two levels. I/O data can be written to a remote MS SQL, MySQL or MariaDB database, with one database connection supported and up to 1000 tags, and the remote database has an offline data recovery mechanism. A local copy is saved to microSD in CSV format. The unit also includes a PID logic operation function and IFTTT logic that can trigger app notifications.This metal-cased variant adds 4G LTE (FDD, TDD) communication and is specified for China. It mounts on DIN-rail and operates from -25 ~ +75°C. One optional XV-board can be fitted for I/O or RS-485 expansion on Rev.B units only. Certifications listed are RoHS and WEEE.ApplicationsConnecting remote I/O and controllers to MES, ERP and SCADA systemsUploading I/O data to cloud platforms such as Amazon Web Services, Microsoft Azure and IBM CloudLogging I/O data to remote SQL databases and local microSD storageTriggering event notifications to mobile apps via IFTTT

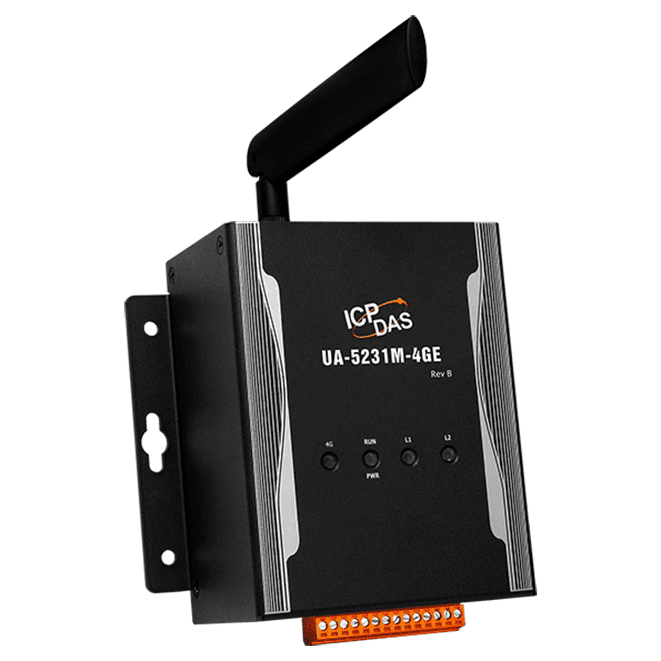

The UA-5231M-4GE CR is an IIoT communication server for linking field devices with IT systems. It reads data from remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII and EtherNet/IP, then makes that data available simultaneously over OPC UA, MQTT and SNMP. The 4G LTE (FDD) link allows it to reach cloud services and remote sites where a wired network is not available.For data logging, the unit can write I/O values to a remote MS SQL, MySQL or MariaDB database, supporting one database connection with up to 1000 tags, while also saving records to a local microSD card in CSV format. An offline data recovery mechanism is included for the remote database. Security features include HTTPS, an OpenVPN client, SNMP v3, communication encryption, and a dynamic blocklist and whitelist.Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT logic can trigger app notifications. A PID function is available for local control logic. The metal case is designed for DIN-rail mounting and is rated for an operating temperature of -25 ~ +75°C. This variant is intended for Asia only, except China.ApplicationsConnecting remote I/O modules and controllers to MES, ERP and SCADA systemsUploading I/O data to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeakLogging I/O data to remote SQL databases with local backup on microSDTriggering mobile app notifications from machine events via IFTTT

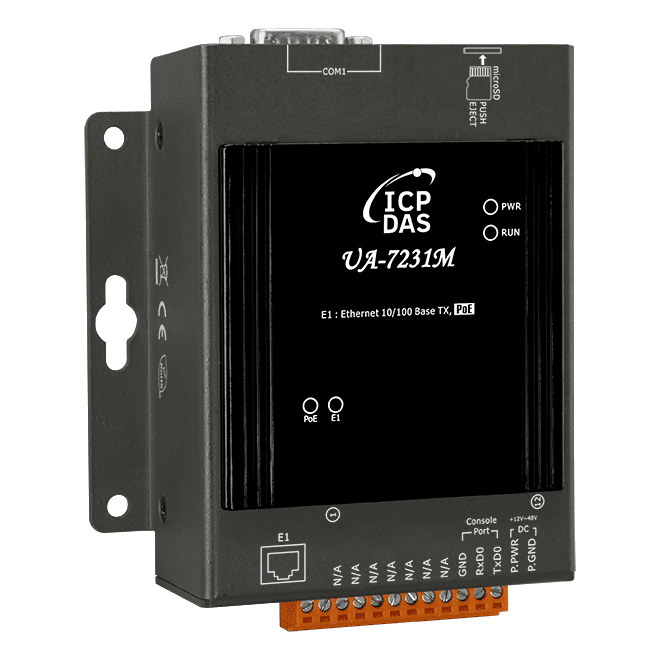

The UA-7231M CR is an IIoT communication server that links field devices to IT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, then republishes that data through OPC UA, MQTT and SNMP, which can run at the same time. This makes it a practical bridge between shop-floor equipment and MES, ERP or SCADA platforms.Data logging is built in. I/O values can be written to a remote MS SQL, MySQL or MariaDB database, or saved as CSV files on a microSD card. If the remote database becomes unavailable, the offline recovery mechanism helps keep the record intact. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT can trigger app notifications from events.The unit is powered from +12 ~ +48 VDC or via PoE (IEEE 802.3af, Class 1) and mounts on a DIN rail in a metal case. The CR ordering code is the RoHS-listed version of the UA-7231M.ApplicationsConnecting shop-floor I/O and controllers to MES, ERP and SCADA systemsIndustrial IoT data collection and cloud reportingHistorical data logging to remote databases or local microSD storageEvent-driven alerts through IFTTT mobile app notifications

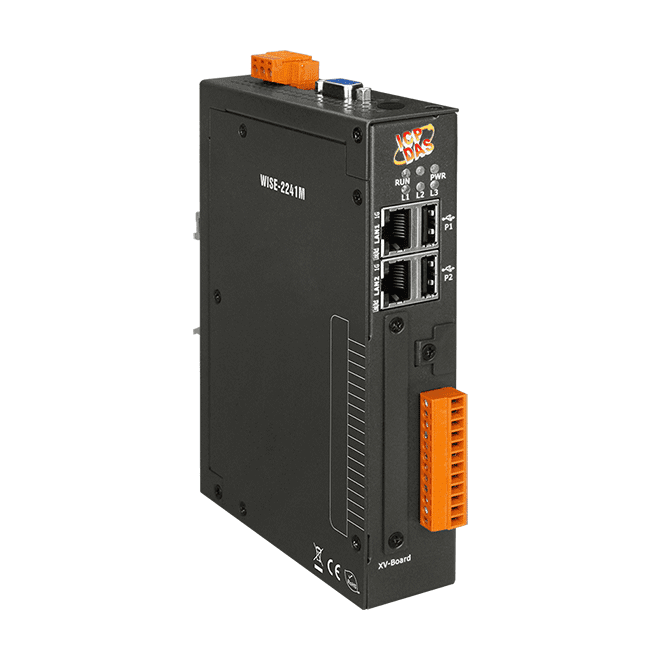

WISE-2241M is an IIoT edge controller that runs control and monitoring logic locally, so engineers can build IF-THEN-ELSE rules without writing code. Configuration is done through a web browser, with no extra software tool required.The controller gathers data from several sources at once. Its RS-485 ports take XV-board, DCON and Modbus RTU slave modules, with COM3 and COM4 each connecting up to 16 modules, and Ethernet takes Modbus TCP slave modules. Data can be logged and sent back as files or transferred in real time, and CGI commands allow integration with IP cameras and network devices.For higher-level integration, the unit supports Modbus TCP and RTU, SNMP, FTP and MQTT, and can send LINE and email messages. It connects directly to Microsoft Azure and IBM Bluemix IoT platforms, or to the IoTstar cloud management software. The metal case mounts on a DIN-rail and operates from -25 ~ +75 °C.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

WISE-2246M CR is a metal-cased IIoT edge controller for remote logic control and monitoring. Rules are set up on web pages in a browser, so IF-THEN-ELSE logic, timers and schedules can be configured without a separate programming tool.The controller can connect up to 32 DCON or Modbus RTU slave modules, with COM3 and COM4 each supporting up to 16, plus up to 16 Modbus TCP slave modules. It also handles XV-board I/O and CGI commands for iCAM IP cameras, and exchanges data over Modbus TCP/RTU, SNMP, FTP and MQTT, which suits it to bridging field devices and IT, MES or SCADA systems.Typical uses include building and factory automation, machine automation, and remote maintenance or monitoring of unmanned facility rooms. Note that this variant is marked For China Only, and WeChat messaging requires an enterprise WeChat account in China.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing EquipmentUnmanned Facility Room MonitoringIntelligent FactoryEnvironment Monitoring

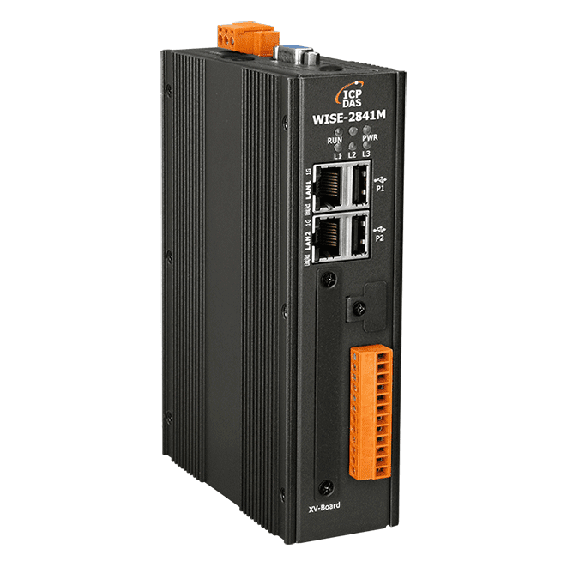

WISE-2841M CR is a metal-cased IIoT edge controller that is set up and monitored from a web browser, so no separate software tool is needed. Control logic is defined through web pages using IF-THEN-ELSE rules, which avoids conventional programming for most automation tasks.The controller gathers data from DCON or Modbus RTU slave modules on COM3 and COM4, Modbus TCP slave devices, I-7000 and M-7000 series I/O, (P)ET-7000 modules, WF-2000 devices and iCAM IP cameras, then forwards it through MQTT, SNMP traps or Modbus TCP master functions. For security, it supports HTTPS for web access, SFTP and FTPS for log file transfer, SNMP v3 and a VPN function for reaching devices on a protected network.Cloud links are available to Amazon Web Services, Microsoft Azure and IBM Bluemix IoT platforms, as well as ICP DAS IoTstar cloud management software. Real-time alerts can be sent via LINE Notify, Telegram, WeChat and email, making the unit suitable for building automation, factory and machine automation, and remote maintenance.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

The WISE-2841M-4GC CR is an IIoT edge controller that collects data from field I/O, runs local control rules and forwards results to hosts, IT systems and cloud platforms. Configuration and monitoring are carried out entirely in a web browser, so no additional software tool is needed and control logic is edited through web pages rather than programmed.Engineers will value the rule engine and the breadth of connectivity. IF-THEN-ELSE logic, timers, schedules and data logging can run on the unit, while Modbus TCP and Modbus RTU, DCON, MQTT and SNMP v2c/v3 cover common device and network integration. Encrypted links are available through HTTPS, SFTP and FTPS, and a VPN function is provided for access to isolated secure network segments.The -4GC CR variant adds 4G wireless communication and is listed for the China frequency band and for China only. Dual RJ-45 Ethernet ports, one RS-232 port and two isolated RS-485 ports give flexible wiring, and the unit mounts on a wall or DIN rail with an operating range of -25 ~ +75 °C.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

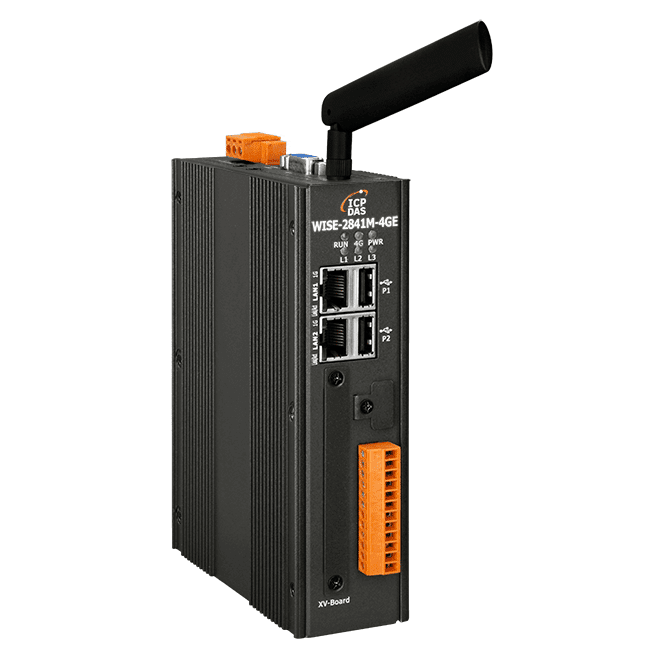

The WISE-2841M-4GE is a metal-case IIoT edge controller that is configured through a web browser, so no additional software tool is needed. Control logic is built on web pages rather than written as code, and IF-THEN-ELSE rules run directly on the controller. It suits engineers who want local automation logic, I/O monitoring and data handling at the edge without custom programming.On the connectivity side, the unit combines RS-485 and Modbus slave support with 4G wireless communication. It can read DCON, Modbus RTU and Modbus TCP slave modules, and it can send data and messages over Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3. HTTPS, SFTP and FTPS are available for encrypted access, and a VPN function allows connection to devices on a secured network.This ordering code is the 4G variant with a frequency band for EMEA, Korea, Thailand, India and Taiwan. The 4G system supports FDD LTE bands B1/B3/B5/B7/B8/B20, and the controller also supports a range of cloud platforms, including Amazon Web Services, Microsoft Azure and IBM Bluemix, as well as the IoTstar Cloud Management Software.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

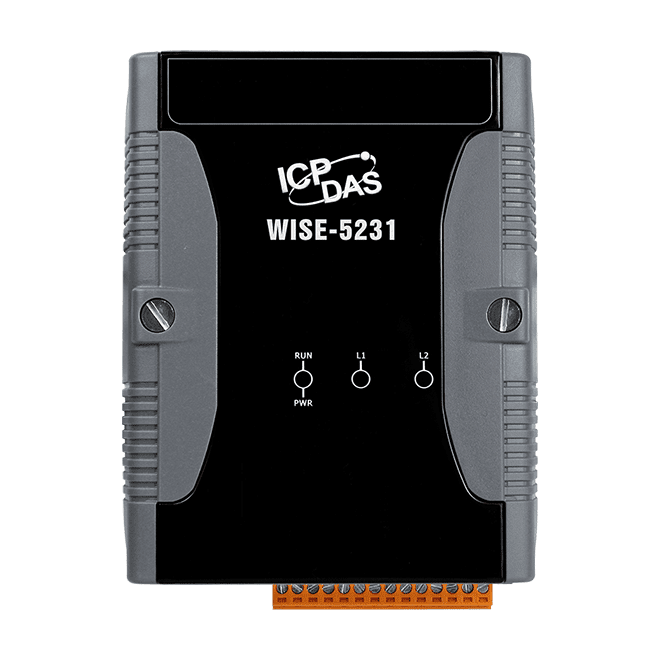

WISE-5231 CR is a plastic-case IIoT edge controller for engineers who need local control logic and I/O concentration without writing code. Logic is configured through built-in web pages in a browser, so no separate software tool is needed. IF-THEN-ELSE rules, timers, schedules and recipes run on the controller itself.The unit collects field data from several sources at once. It supports XV-board, DCON or Modbus RTU slave modules (up to 32, with COM3 and COM4 each taking up to 16) and Modbus TCP slave modules (up to 16). Data logging with file transfer, active I/O sending, and CGI command exchange with IP cameras and network devices are also supported. Communication runs over Modbus TCP/RTU, SNMP, FTP and MQTT, with LINE and email alerts for real-time notifications.For cloud integration, the controller connects to Microsoft Azure and IBM Bluemix IoT platforms and works with the IoTstar cloud management software. The CR ordering variant is supplied in a plastic case with a 12 ~ 48 VDC power input, a -25 ~ +75 °C operating range and DIN-rail mounting.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing EquipmentUnmanned Facility Room MonitoringEnvironment MonitoringAccess Control

WISE-5231M is a metal-cased edge controller for running control logic and monitoring remote I/O without writing code. Logic rules are set up through web pages in a standard browser, so no separate configuration software is needed. The IF-THEN-ELSE engine supports unlimited rules, alongside timers, schedules and data logging.The controller can gather data from several device types at once, including XV-board, DCON and Modbus RTU slave modules on its RS-485 ports, and Modbus TCP slave modules over Ethernet. Up to 32 DCON or Modbus RTU slave modules can be connected, with COM3 and COM4 each handling up to 16 modules individually. Data can be forwarded through MQTT, Modbus TCP/RTU, SNMP, FTP and email, and LINE notifications are available for real-time alerts.Cloud integration is supported through MQTT with Microsoft Azure and IBM Bluemix, and the unit works with the IoTstar cloud management software. The controller runs on a 32-bit ARM CPU at 1.0 GHz with a 32 GB microSD card, and accepts a 12 ~ 48 VDC supply. It is rated for -25 ~ +75 °C operation and can be installed on a DIN-rail or wall.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipmentUnmanned facility room monitoringIntelligent factoryEnvironment monitoring

The WISE-5231M-4GC CR is a metal-cased IIoT edge controller for remote logic control and monitoring. Its 4G wireless data communication uses the frequency band for China, making it suited to sites where cellular backhaul is needed instead of a fixed network connection.Control logic is created entirely in the built-in web pages, so no separate software tool or programming is needed. The IF-THEN-ELSE rule engine supports unlimited rules, alongside timer, schedule, data logger and recipe functions, with mathematical operations and internal registers available for process logic.On the field side, the controller accepts XV-board, DCON and Modbus RTU slave modules, plus Modbus TCP slave modules, and can exchange data with IP cameras and network devices through CGI commands. Data reaches IT, MES or SCADA systems over Modbus TCP/RTU, SNMP, FTP or MQTT, and it can publish directly to Microsoft Azure, IBM Bluemix or IoTstar cloud services.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing EquipmentUnmanned Facility Room MonitoringEnvironment Monitoring

The WISE-5231M-4GE is a metal-cased IIoT edge controller for remote logic control and monitoring of field I/O. Logic is configured through a web browser, so engineers can build IF-THEN-ELSE rules without writing code or installing additional software.On the I/O side, the controller connects XV-board, DCON and Modbus RTU slave modules, as well as Modbus TCP slave modules, allowing one unit to gather data from mixed hardware. Timers, schedules, data logging and recipe operations support local automation, while LINE, SMS and email messages can report events in real time.For remote connectivity, the 4G/3G interface and MQTT client allow data to reach IoT platforms such as Microsoft Azure and IBM Bluemix, or to be managed with ICP DAS IoTstar. The 4G frequency band is specified for EMEA, Korea, Thailand, India and Taiwan.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

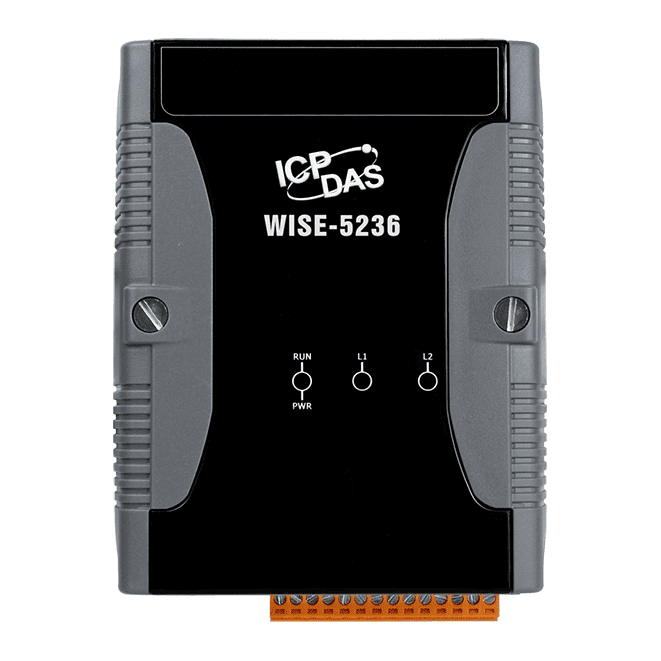

The WISE-5236 CR is an IIoT edge controller for running local control logic and monitoring field I/O. Logic is built through a web interface in the browser, so no separate software tool or programming is needed. Rules are written as IF-THEN-ELSE statements, and the controller can also handle timers, schedules and data logging.On the field side, the controller accepts XV-board, DCON and Modbus RTU slave modules, with up to 32 modules in total and up to 16 Modbus TCP slave modules. Upstream, it supports Modbus TCP and RTU, SNMP, FTP and MQTT, and it can send alerts by LINE, WeChat or email. This makes it useful as a concentrator and gateway between sensors, I/O and IT/SCADA systems.This ordering code is the plastic-housing variant, which the source data lists as for China only. Its applications include building automation, factory and machine automation, and remote maintenance.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipmentUnmanned facility room monitoringIntelligent factory monitoringEnvironment monitoring

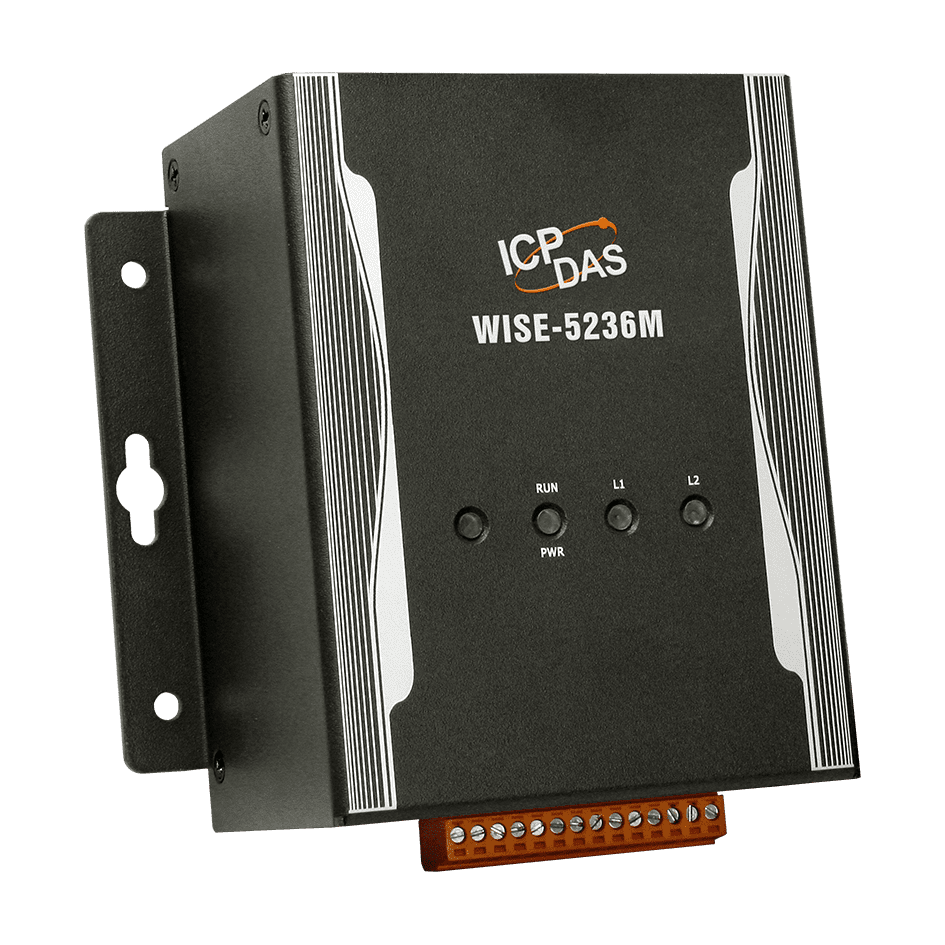

The WISE-5236M CR is a metal-cased IIoT edge controller for logic control, monitoring and data collection at the field level. Control logic is built through its web pages in a browser, so no separate programming tool is needed. Its IF-THEN-ELSE engine, timers, schedules and data logger run locally on the unit.On the I/O side, the controller connects to XV-board, DCON and Modbus RTU slave modules, and to Modbus TCP slave modules, letting you combine several device types on one unit. Communication options include Modbus TCP/RTU, SNMP, FTP and MQTT, with an MQTT client for Microsoft Azure and IBM Bluemix as well as MQTT brokers. Real-time message sending to LINE, WeChat and Email is also supported.The manufacturer lists this ordering code for China only. Note that WeChat messaging requires an Enterprise WeChat account in China. The unit is CE, UKCA, FCC, RoHS and WEEE listed and has a 12 ~ 48 VDC power input with DIN-rail or wall mounting.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing EquipmentUnmanned Facility Room MonitoringIntelligent FactoryEnvironment Monitoring

The WISE-5236M-4GC is a metal-cased IIoT edge controller for remote logic control and monitoring. Logic is configured through a web interface in a browser, so no separate software tool is needed and control rules can be built with IF-THEN-ELSE statements, without writing code. Timer, schedule and data logger functions are included for unattended operation.On the I/O side, the controller accepts XV-board, DCON or Modbus RTU slave modules on its serial ports, and Modbus TCP slave modules over Ethernet. It also supports CGI command exchange with IP cameras and network devices. For connectivity, it provides Modbus TCP/RTU, SNMP, FTP and MQTT, and can send LINE, WeChat, SMS and email messages. The 4G module is supplied for the China frequency band and this variant is intended for China only.This model suits engineers building monitoring and control systems in building, factory and machine automation, as well as remote maintenance and diagnosis projects that need local logic and a path to IoT cloud platforms such as Microsoft Azure and IBM Bluemix.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment
