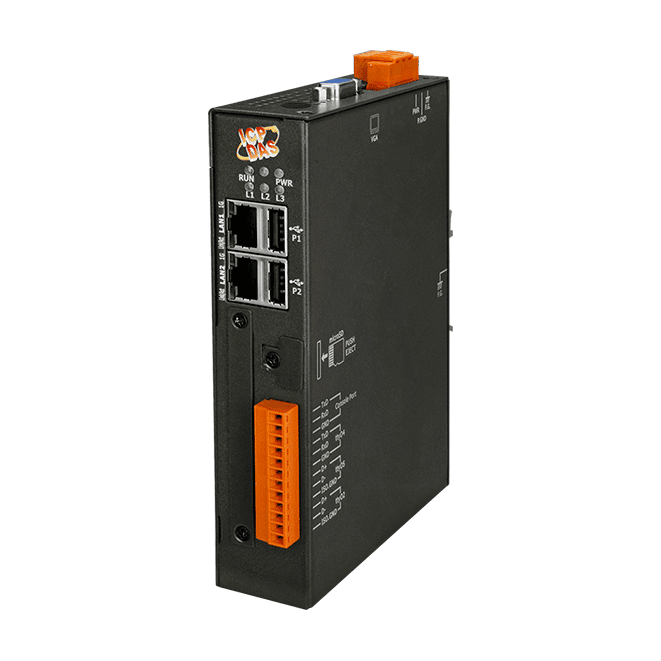

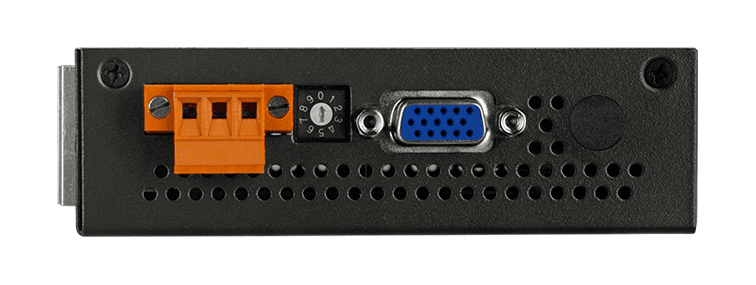

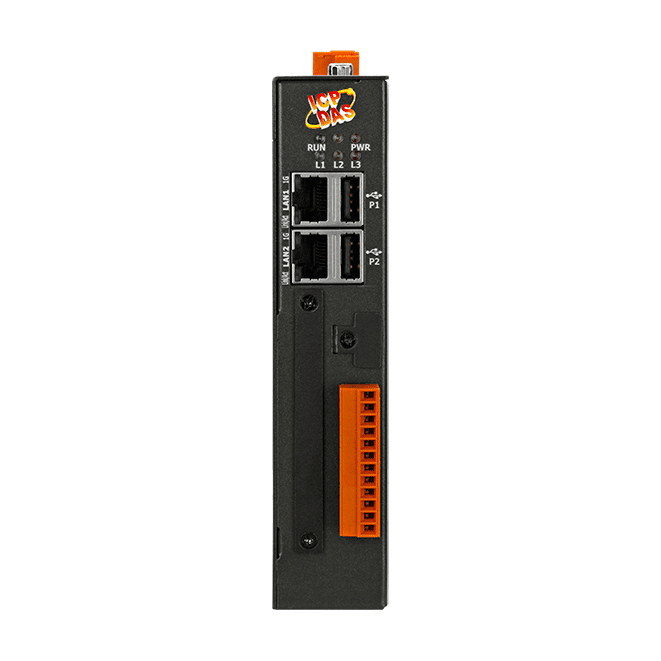

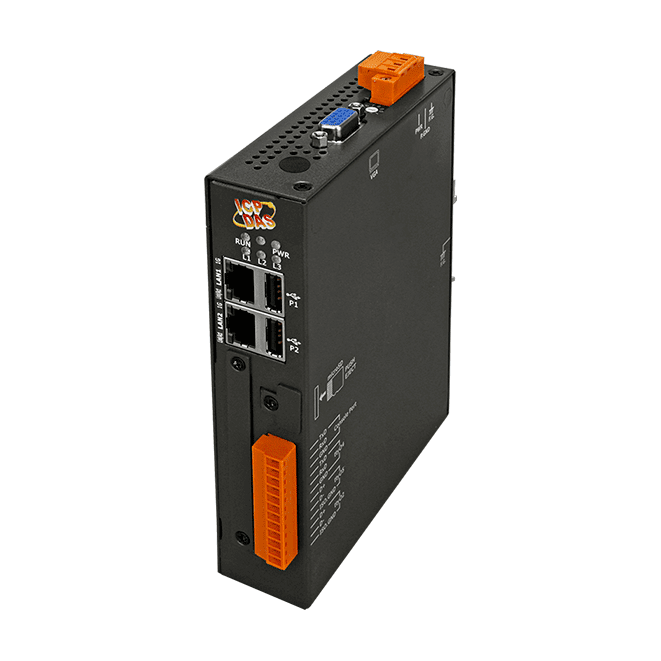

WISE-2246M IIoT Edge Controller with Browser-Based IF-THEN-ELSE Logic
WISE-2246M CR metal-case IIoT edge controller that runs IF-THEN-ELSE logic configured through a web browser, with Modbus TCP/RTU, SNMP and MQTT support.
- Browser-based IF-THEN-ELSE logic configuration with no separate programming tool required
- Connects up to 32 DCON or Modbus RTU slave modules and up to 16 Modbus TCP slave modules
- Supports XV-board I/O and CGI command control of iCAM IP cameras
- Modbus TCP/RTU, SNMP v2c/v3, FTP and MQTT protocol support
- Timer, schedule, data logger and recipe functions
- Quad-core ARM CPU at 1.6 GHz per core with built-in 32 GB microSD card
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WISE-2246M IIoT Edge Controller with Browser-Based IF-THEN-ELSE Logic"
WISE-2246M CR is a metal-cased IIoT edge controller for remote logic control and monitoring. Rules are set up on web pages in a browser, so IF-THEN-ELSE logic, timers and schedules can be configured without a separate programming tool.
The controller can connect up to 32 DCON or Modbus RTU slave modules, with COM3 and COM4 each supporting up to 16, plus up to 16 Modbus TCP slave modules. It also handles XV-board I/O and CGI commands for iCAM IP cameras, and exchanges data over Modbus TCP/RTU, SNMP, FTP and MQTT, which suits it to bridging field devices and IT, MES or SCADA systems.
Typical uses include building and factory automation, machine automation, and remote maintenance or monitoring of unmanned facility rooms. Note that this variant is marked For China Only, and WeChat messaging requires an enterprise WeChat account in China.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
- Unmanned Facility Room Monitoring
- Intelligent Factory
- Environment Monitoring
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 2 x RJ-45, 2 x RS-485, 1 x RS-232 |
| Isolation: | 2500 VDC (COM3, COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall, DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client (Support SFTP/FTPS) • FTP Server (Support TLS Encryption) • SNMP v2c / v3 & SNMP Trap • MQTT Client (Message Publish & Subscribe; Support SSL/TLS) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS • VPN |
| Function | • Web Interface for Configuration (Support HTTPS) • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, WeChat) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Amazon Web Services IoT Cloud platform • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 2 TB microSDXC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8W |
| Mechanical | |
| Dimensions (mm) | 44 × 164 × 129 (W x L x H) |
| Installation | Wall Mounting / DIN-Rail Installation; Optional |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
