XP-8000-CE6
The XP-8031-CE6 is a Windows CE 6.0 programmable automation controller built around a 1 GHz dual-core x86 processor. It suits engineers who want PC-style software development together with the deterministic behaviour expected from a PLC-class controller, and it is supported by hard real-time capability under Windows CE 6.0.Memory and storage comprise 2 GB DDR3 and 32 GB Flash, with 16 KB EEPROM and 512 KB MRAM for data retention. Communication is provided by two 10/100/1000BASE-T Ethernet ports, three RS-232 serial ports (3000 VDC isolated), four USB 2.0 host ports and a VGA port. A dual watchdog timer, a real-time clock and a 64-bit hardware serial number for software protection complete the main unit.This variant has no I/O expansion slots, so it does not accept the I-8K or I-87K modules offered by the XP-8131-CE6, XP-8331-CE6 and XP-8731-CE6. Software support includes .NET Compact Framework 3.5, a DLL SDK for Visual Studio .NET 2005/2008, and FTP and ASP services. The unit is rated for -25 ~ +75 °C operation and accepts a +10 ~ 30 VDC input with redundant power inputs.ApplicationsPC-based control software development in Visual Basic .NET or Visual C#Standalone controller tasks that do not require local I/O expansionSoftware applications requiring copy protection via the 64-bit hardware serial number

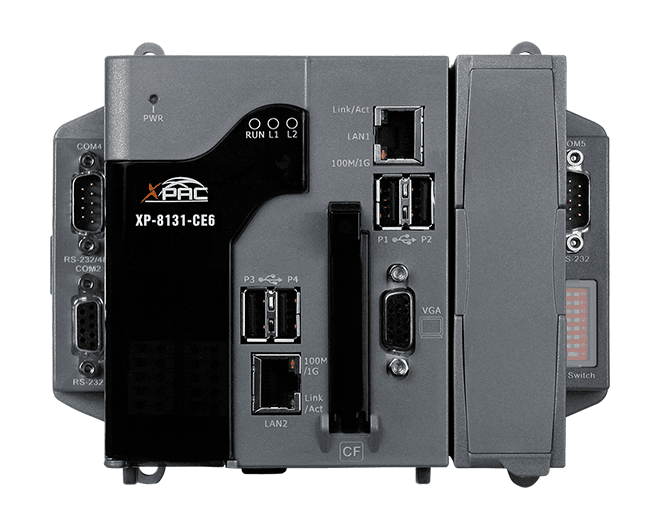

The XP-8131-CE6 is a programmable automation controller built around a 1 GHz dual-core x86 CPU running Windows CE 6.0. Its single I/O expansion slot accepts high-profile I-8K parallel and I-87K serial I/O modules, so you can add input and output capacity without changing the controller platform.Windows CE 6.0 gives the controller hard real-time capability, a small core, fast boot and deterministic control. The unit can also run PC-based control software such as Visual Basic .NET and Visual C#, which suits projects where a traditional PLC structure needs to be combined with Windows application development.Memory and connectivity include 2 GB DDR3 SDRAM, 32 GB flash storage, dual 10/100/1000BASE-T Ethernet ports, serial COM ports, four USB 2.0 host ports and a VGA output. A 64-bit hardware serial number is available for software copy protection, and the redundant power input and dual watchdog timer support robust installations.ApplicationsPC-based industrial control using Windows CE applicationsSystems combining PLC-style I/O with Windows software development in .NET

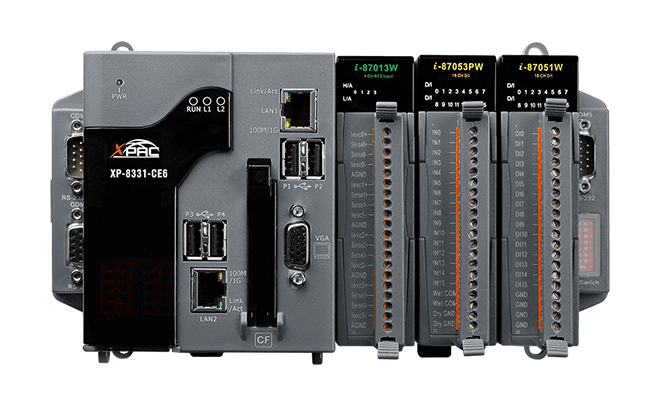

The XP-8331-CE6 is a standard programmable automation controller built around a 1 GHz dual-core x86 CPU and Windows CE 6.0. It offers three expansion slots for high-profile I-8K parallel and I-87K serial I/O modules, so engineers can scale the I/O count to suit a control panel without changing the controller platform.Windows CE 6.0 provides hard real-time capability, a small core footprint, fast boot and deterministic control. The unit includes 2 GB DDR3 memory, 32 GB flash, 16 KB EEPROM and 512 KB MRAM for data retention, along with a built-in real-time clock and dual watchdog timer. A 64-bit hardware serial number supports software copy protection, and the software stack includes .NET Compact Framework 3.5 and an SDK DLL for Visual Studio .NET 2005/2008.Connectivity includes two 10/100/1000BASE-T Ethernet ports, serial ports for RS-232 and RS-485, four USB 2.0 host ports and a VGA output. The controller accepts +10 ~ 30 VDC with redundant power inputs and operates from -25 ~ +75 °C. It is supplied with CE, UKCA, FCC, RoHS and WEEE documentation and can be mounted on a DIN rail or wall.ApplicationsIndustrial control with modular I/O expansionMachine and process control requiring Windows-based softwareSystems needing a VGA display output on the controllerSoftware-protected control applications using the hardware serial number

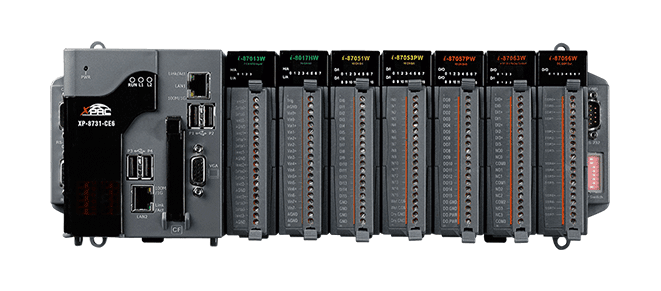

XP-8731-CE6 is the largest member of the XP-8000-CE6 PAC series, combining a 1 GHz dual-core x86 processor with Windows CE 6.0. Its seven expansion slots accept high-profile I-8K parallel and I-87K serial I/O modules, so one controller can handle a wide mix of digital, analogue and serial I/O in a single installation.The unit suits engineers who want deterministic, real-time control alongside PC-style software development. It supports .NET Compact Framework 3.5 and a DLL-based SDK for Visual Studio .NET 2005/2008, so control applications can be written in languages such as Visual Basic .NET or Visual C#. The 64-bit hardware serial number can be used to protect software against copying.Connectivity includes two 10/100/1000BASE-T Ethernet ports, five serial ports (RS-232/485), four USB 2.0 host ports and a VGA output. Dual watchdog timers, a real-time clock and redundant power inputs support reliable operation, and the controller is rated for -25 ~ +75 °C. Ordering code XP-8731-CE6 CR covers the 7-slot version; the 0-, 1- and 3-slot variants are listed separately.ApplicationsPC-based control with .NET applications on a rugged DIN-rail controllerSystems combining parallel and serial I/O expansionSerial device communication over RS-232/485 ports
