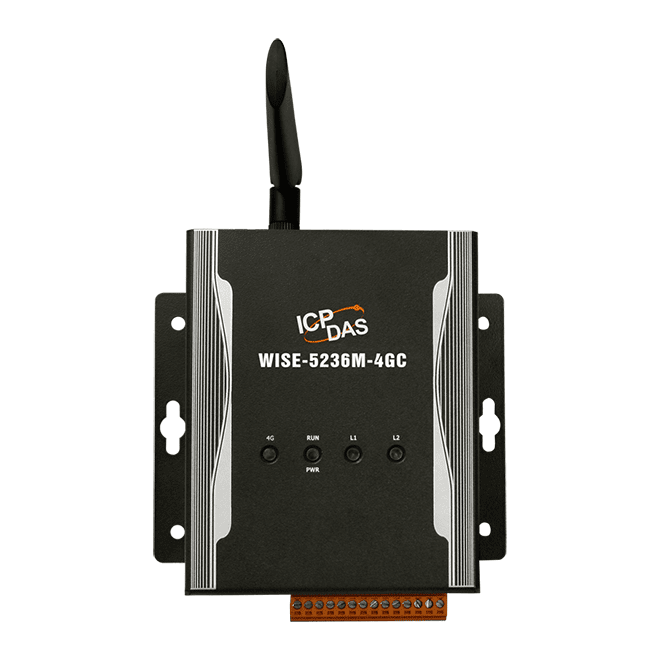

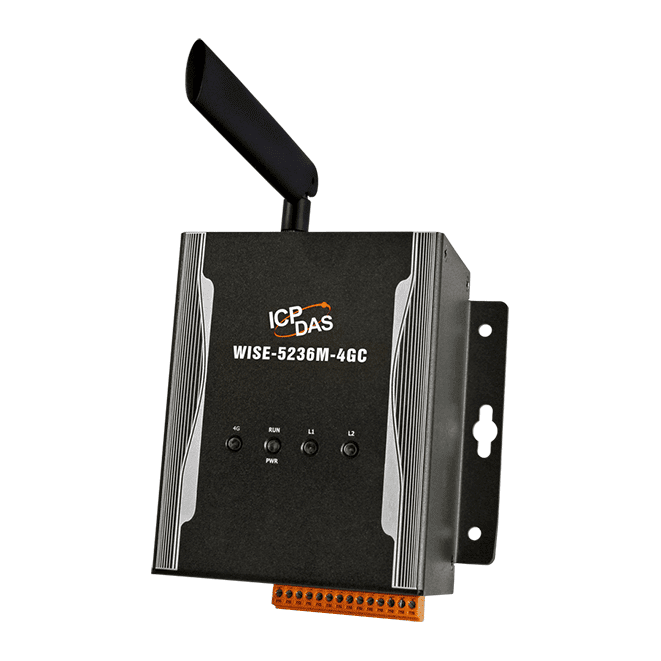

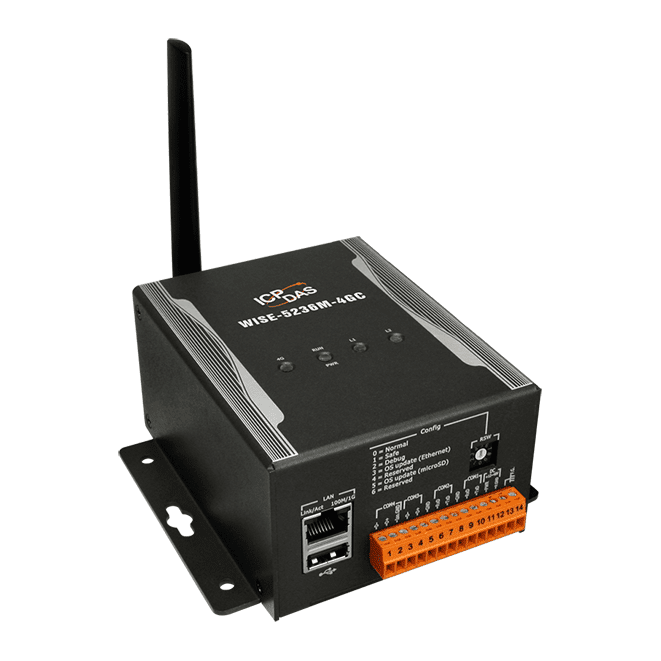

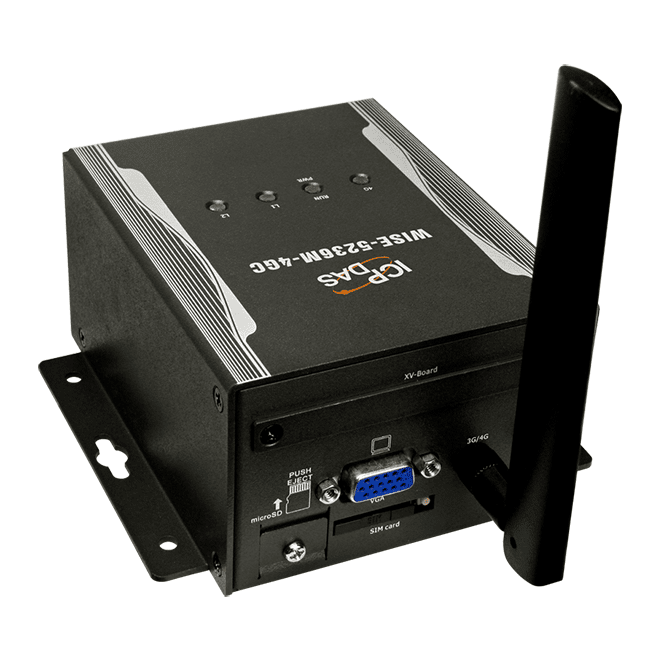

WISE-5236M-4GC IIoT Edge Controller, Metal Case with 4G, China Frequency Band
Metal-case IIoT edge controller with browser-based IF-THEN-ELSE logic, Modbus TCP/RTU, SNMP and MQTT support, and 4G communication for the China frequency band.
- Browser-based configuration with IF-THEN-ELSE logic rules, no separate software tool required
- Connects XV-board, DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Supports Modbus TCP/RTU, SNMP, FTP and MQTT client communication
- Timer, schedule, data logger and recipe functions for unattended operation
- LINE, WeChat, SMS and email message sending for real-time alerts
- Integration with Microsoft Azure and IBM Bluemix IoT cloud platforms and ICP DAS IoTstar
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WISE-5236M-4GC IIoT Edge Controller, Metal Case with 4G, China Frequency Band"
The WISE-5236M-4GC is a metal-cased IIoT edge controller for remote logic control and monitoring. Logic is configured through a web interface in a browser, so no separate software tool is needed and control rules can be built with IF-THEN-ELSE statements, without writing code. Timer, schedule and data logger functions are included for unattended operation.
On the I/O side, the controller accepts XV-board, DCON or Modbus RTU slave modules on its serial ports, and Modbus TCP slave modules over Ethernet. It also supports CGI command exchange with IP cameras and network devices. For connectivity, it provides Modbus TCP/RTU, SNMP, FTP and MQTT, and can send LINE, WeChat, SMS and email messages. The 4G module is supplied for the China frequency band and this variant is intended for China only.
This model suits engineers building monitoring and control systems in building, factory and machine automation, as well as remote maintenance and diagnosis projects that need local logic and a path to IoT cloud platforms such as Microsoft Azure and IBM Bluemix.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 1 Ethernet (RJ-45), 3 COM |
| Isolation: | COM4 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, WeChat) • non-SSL & SSL Email sending function • SMS message sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running 1 x Modem Status 1 x Mobile Network Status |
| 2G System | |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10; GPRS station class B |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 900/2100 MHz; TD-SCDMA 1900/2100 MHz; CDMA2000 (BC0) 800 MHz |
| 4G System | |
| Data Transmission Rate | Download: Max. 100 Mbps; Upload: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 MHz; TDD LTE: B38/B39/B40/B41 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 6.5W |
| Mechanical | |
| Dimensions (mm) | 117 × 126 × 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
