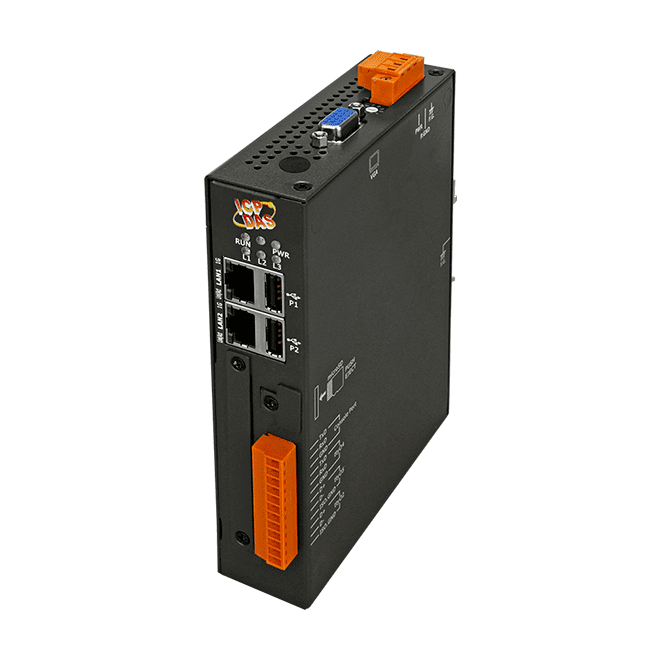

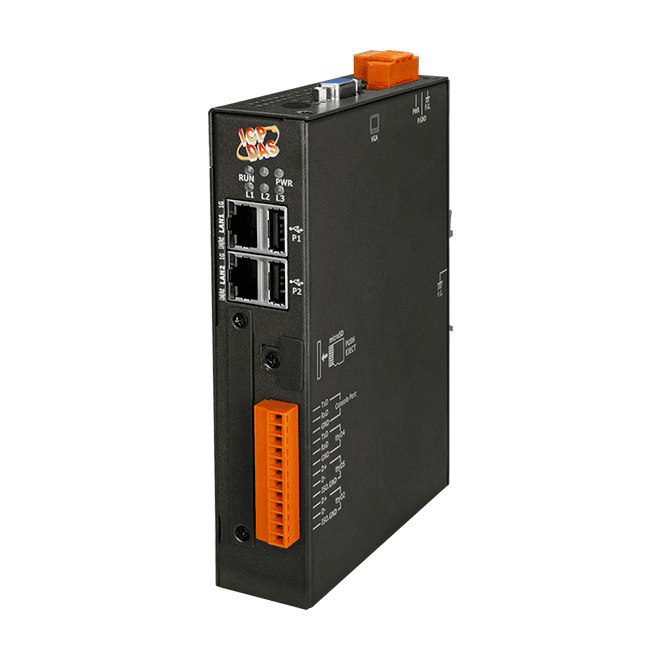

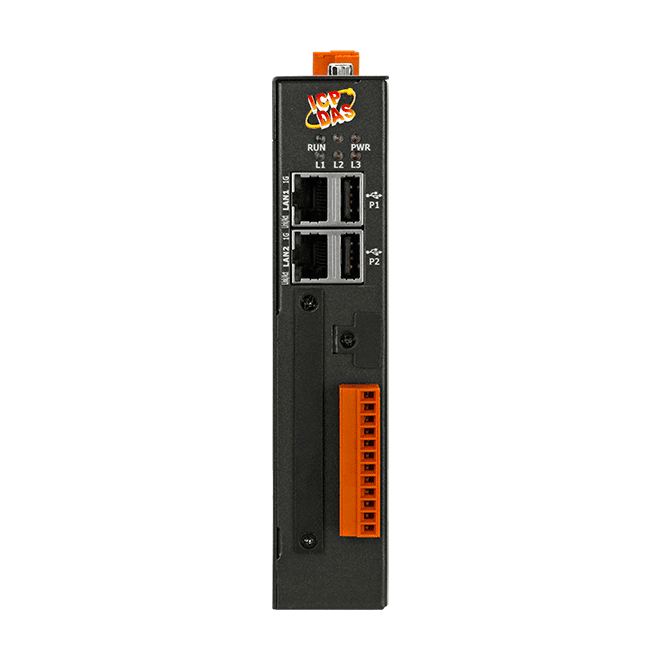

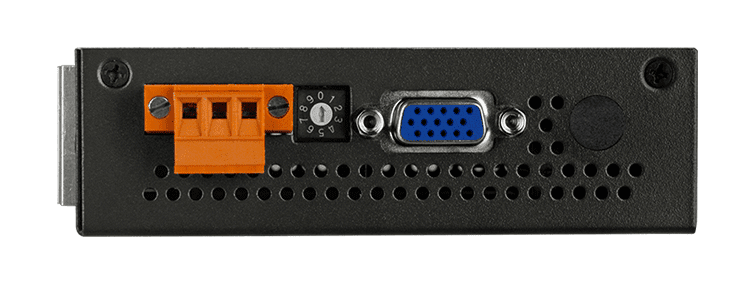

WISE-2241M IIoT Edge Controller, Metal Case with Modbus TCP/RTU and MQTT
IIoT edge controller with browser-based IF-THEN-ELSE logic, supporting XV-board, DCON, Modbus RTU and Modbus TCP modules, with MQTT, SNMP and IoT cloud connectivity.
- Browser-based configuration with web pages for control logic, no extra software needed
- IF-THEN-ELSE rule engine with unlimited rules, plus timer, schedule and recipe functions
- Connects XV-board, DCON or Modbus RTU slave modules (up to 32) and up to 16 Modbus TCP slave modules
- Data logging with files sent back, plus active I/O transmission for real-time data
- CGI command sending and receiving for IP cameras and network devices
- Modbus TCP/RTU, SNMP, FTP and MQTT client support, with LINE and email alerts
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WISE-2241M IIoT Edge Controller, Metal Case with Modbus TCP/RTU and MQTT"
WISE-2241M is an IIoT edge controller that runs control and monitoring logic locally, so engineers can build IF-THEN-ELSE rules without writing code. Configuration is done through a web browser, with no extra software tool required.
The controller gathers data from several sources at once. Its RS-485 ports take XV-board, DCON and Modbus RTU slave modules, with COM3 and COM4 each connecting up to 16 modules, and Ethernet takes Modbus TCP slave modules. Data can be logged and sent back as files or transferred in real time, and CGI commands allow integration with IP cameras and network devices.
For higher-level integration, the unit supports Modbus TCP and RTU, SNMP, FTP and MQTT, and can send LINE and email messages. It connects directly to Microsoft Azure and IBM Bluemix IoT platforms, or to the IoTstar cloud management software. The metal case mounts on a DIN-rail and operates from -25 ~ +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 2 x RJ-45 Ethernet, 1 x RS-232, 2 x RS-485 |
| Isolation: | 2500 VDC (COM3, COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8W |
| Mechanical | |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
