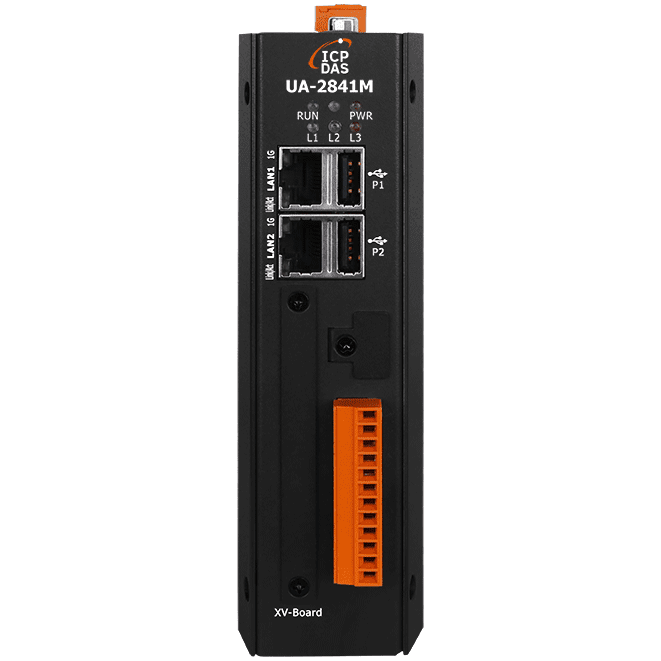

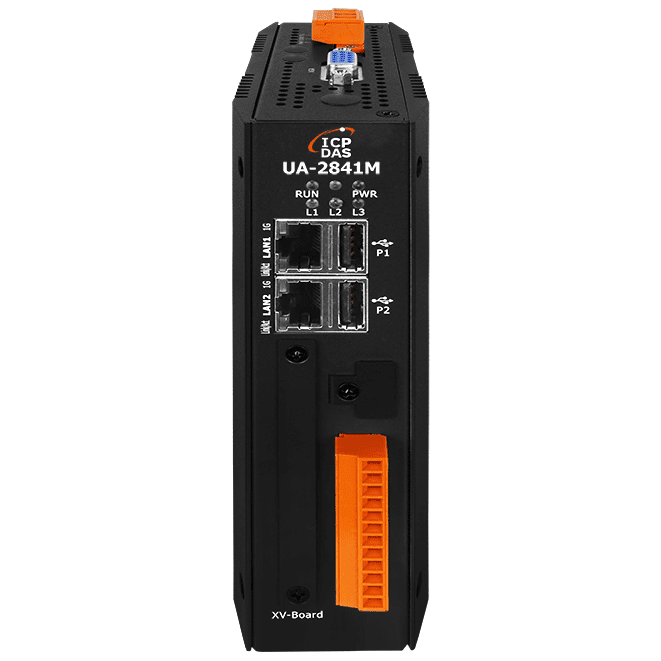

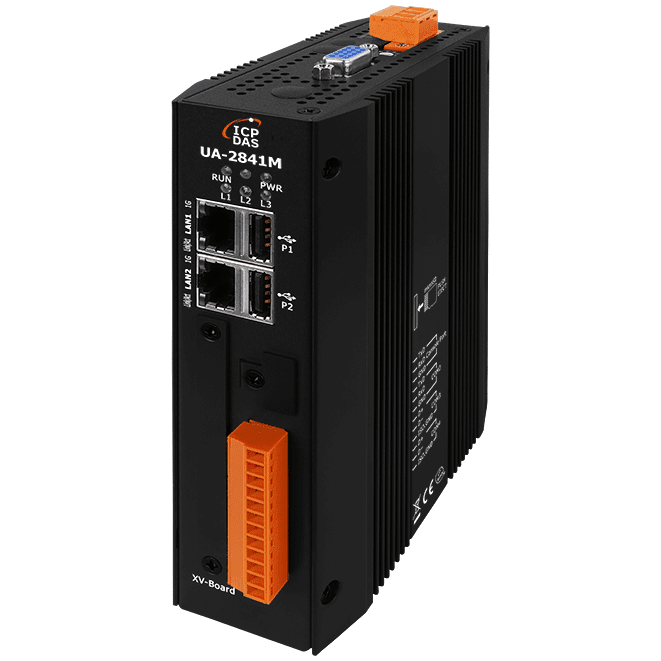

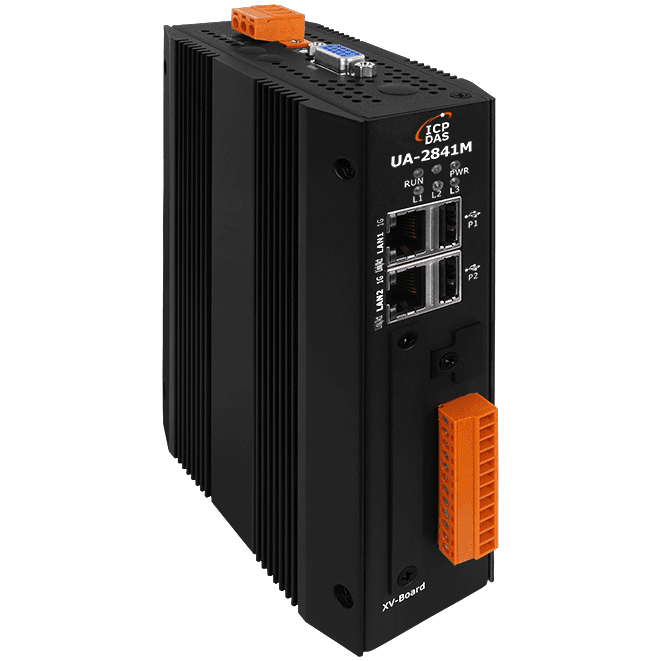

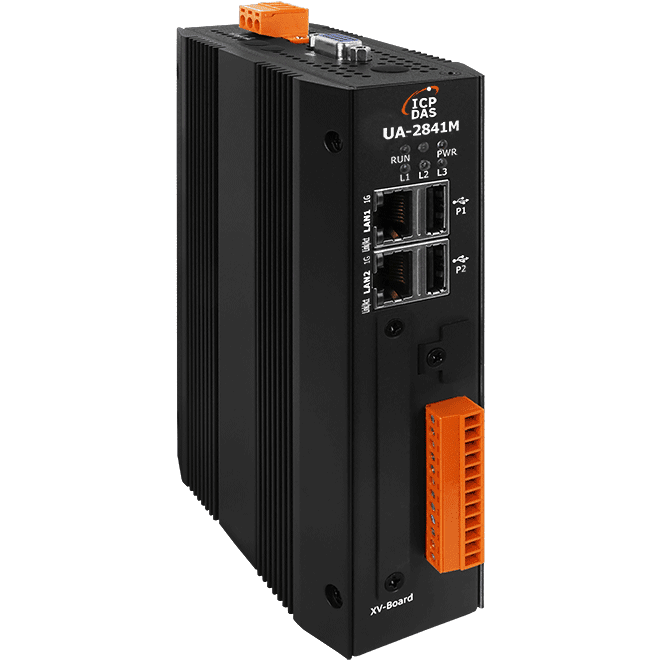

UA-2841M IIoT Communication Server, Quad-core ARM, 2 Ethernet Ports
IIoT communication server that reads Modbus TCP/RTU/ASCII and EtherNet/IP devices and republishes data over OPC UA, MQTT, SNMP and RESTful, with remote database and local CSV logging.
- Simultaneous OPC UA, MQTT, SNMP and RESTful protocol support for MES, ERP and SCADA integration
- Modbus TCP master, Modbus RTU/ASCII master and EtherNet/IP scanner for device access
- Logging to MS SQL, MySQL, MariaDB or PostgreSQL databases, plus local CSV files on microSD
- Offline data recovery mechanism for the remote database
- Built-in MQTT broker including WebSocket
- Security features include HTTPS, OpenVPN client, SNMP v3, communication encryption, dynamic blocklist and whitelist
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "UA-2841M IIoT Communication Server, Quad-core ARM, 2 Ethernet Ports"
UA-2841M CR is an IIoT communication server that bridges operational technology devices and IT systems. It polls Modbus TCP, Modbus RTU/ASCII and EtherNet/IP devices and publishes the data over OPC UA, MQTT, SNMP and RESTful at the same time, which suits links to MES, ERP, SCADA and cloud services.
Data logging works in two ways. Records can be written directly to a remote MS SQL, MySQL, MariaDB or PostgreSQL database, with up to three database connections and 1000 tags, or saved locally as CSV files on a microSD card. An offline data recovery mechanism is provided for the remote database.
The metal-cased unit runs a quad-core ARM 1.6 GHz CPU with 2 GB DDR4 SDRAM and 8 GB eMMC storage, and mounts on DIN-rail. It accepts +12 ~ +48 VDC power and has an operating temperature range of -25 ~ +70°C.
Applications
- Industrial IoT communication protocol conversion
- IT communication protocol conversion
- Local and remote database records
| Product type: | IIoT communication server |
|---|---|
| Ports: | 2 |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card in CSV format. |
| Remote Database | Record I/O data, and send to the remote database of MS SQL, MySQL, MariaDB and PostgreSQL. Support max. 3 Database connections, with a max. 1000 Tags. |
| Software | |
| OS | Linux Kernel 5.10.72 |
| Protocol | · OPC UA Server · MQTT Broker/Client · Modbus TCP Master · Modbus RTU/ASCII Master · EtherNet/IP Scanner · SNMP Agent · OpenVPN Client · RESTful |
| Function | · Internal Module · PID Function |
| IoT Service Integration | · Microsoft Azure · Amazon Web Services · IBM Cloud · ThingSpeak · IFTTT |
| Main Unit | |
| CPU | ARM Quad-Core CPU, 1.6 GHz |
| System Memory | 2 GB DDR4 SDRAM |
| Storage | 8 GB eMMC microSD socket with one 32 GB microSD card (support up to 32 GB microSDHC card or 2 TB microSDXC card) |
| Non-Volatile Memory | 64 KB FRAM 128 KB MRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |

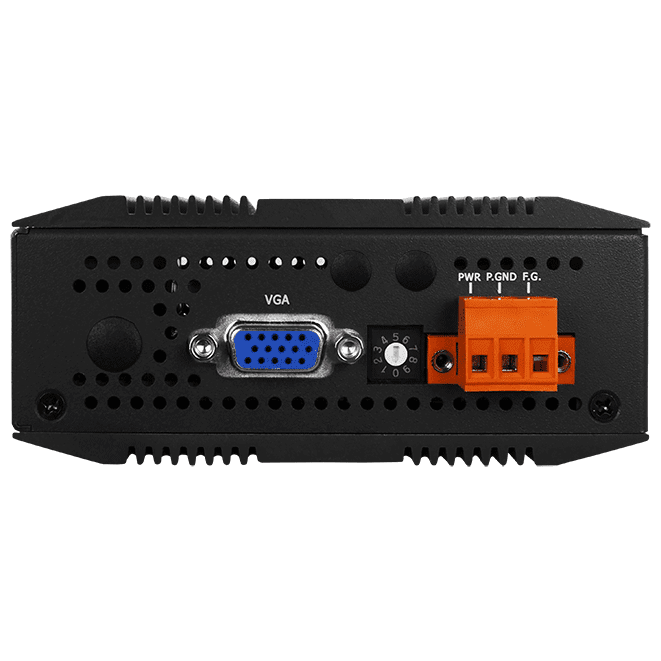

| Signal | VGA (Analog RGB), reserved |
| LED Indicators | |
| Status | 1 x PWR 1 x RUN 3 x User Defined LEDs |
| HMI | |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1, 8O1, 8N2, 8E2, 8O2 (Among which, Modbus RTU is available in: 8N1, 8E1, 8O1, 8N2) |
| USB | |
| Connector | 2 x 2.0 host |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 10 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 46 x 164 x 129 (W x L x H) |

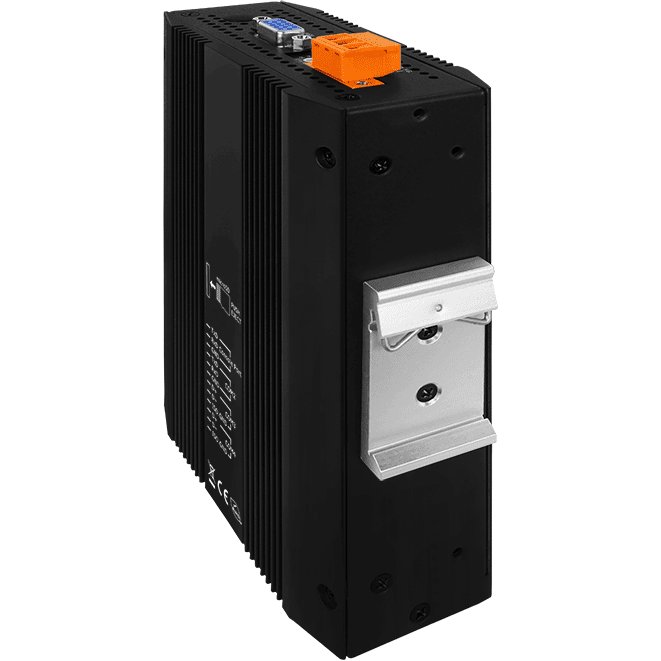

| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
