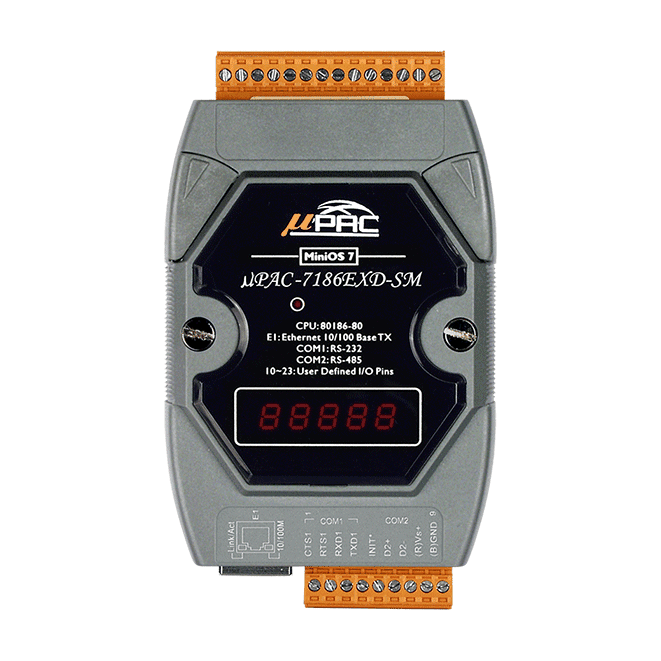

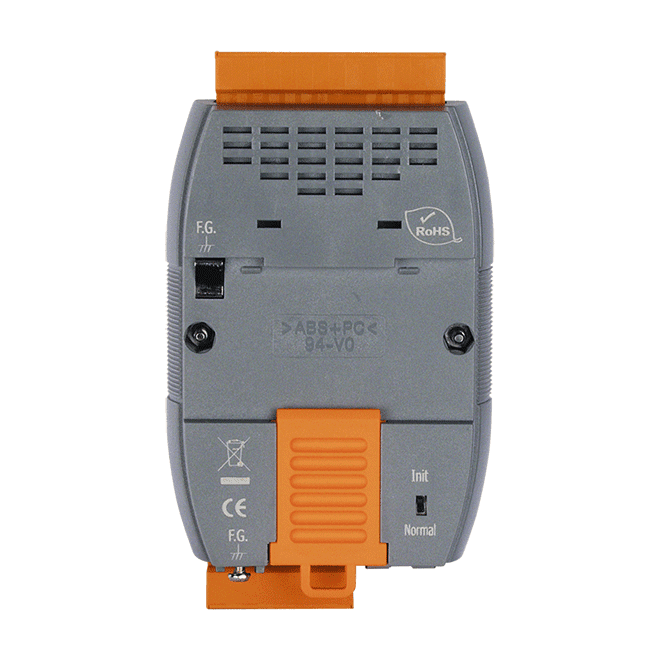

uPAC-7186EXD-SM-G Ethernet PAC, MiniOS7 with RS-232/485 and 5-digit LED
Compact Ethernet programmable automation controller with an 80 MHz 80186-class CPU, MiniOS7 framework, RS-232 and RS-485 serial ports and an I/O expansion bus.
- 80186-class CPU at 80 MHz running the MiniOS7 framework with C language development
- One 10/100 Base-TX Ethernet port (RJ-45) for network connectivity
- RS-232 and RS-485 serial ports with speeds up to 115200 bps
- Modbus libraries for SCADA communication
- 512 KB flash, 16 KB EEPROM, 640 KB SRAM and 31 bytes NVRAM
- I/O expansion bus supporting one X-board, with more than 50 boards available
3 137,33 kr per stk.
| 1–9 stk. | 3 137,33 kr | |
|---|---|---|
| 10–30 stk. | 3 043,83 kr | −3 % |
| 31+ stk. | 2 981,50 kr | −5 % |
Produktinformasjon "uPAC-7186EXD-SM-G Ethernet PAC, MiniOS7 with RS-232/485 and 5-digit LED"
The uPAC-7186EXD-SM-G is a compact programmable automation controller for engineers who need to bring serial equipment onto Ethernet. It pairs an 80186-class CPU running at 80 MHz with the MiniOS7 framework, so application code can be written in C using ICP DAS development tools.
Connectivity covers one 10/100 Base-TX Ethernet port and both RS-232 and RS-485 serial ports, with serial speeds up to 115200 bps. Standard Modbus libraries are provided, allowing the controller to be polled or read by SCADA packages such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix. An I/O expansion bus accepts one X-board, and more than 50 expansion boards are listed for this platform.
This gray-cover variant is supplied with 512 KB flash, 16 KB EEPROM and 640 KB SRAM, plus a real-time clock, watchdog timer and 64-bit hardware serial number. It is rated for -25 to +75 °C operation and mounts on a DIN rail. Status is shown on a five-digit 7-segment LED display and system indicators.
Applications
- Adding Ethernet connectivity to existing serial devices
- Modbus-based data exchange with SCADA software
- Distributed local control and data acquisition on a DIN rail
- Expanding I/O functions through a single expansion board
| Product type: | Programmable automation controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 1 x Ethernet, 2 x serial |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 640 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System 1 x PoE |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
