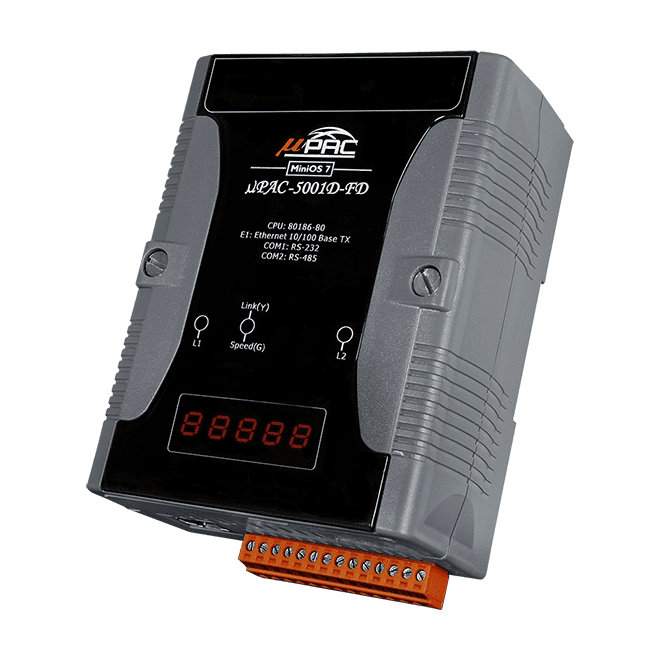

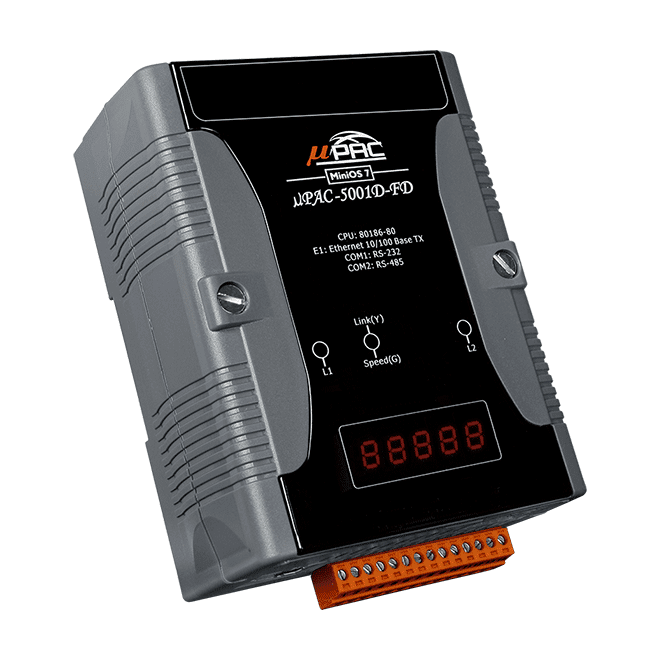

uPAC-5001D-FD Ethernet PAC, 80186-80 CPU, MiniOS7, 256 MB NAND Flash
The uPAC-5001D-FD is an Ethernet programmable automation controller with RS-232 and RS-485 ports, MiniOS7 firmware and a 5-digit 7-segment LED display for local status.
- MiniOS7 firmware with C language development toolkit and Modbus libraries
- 1 x RJ-45 10/100 Base-TX Ethernet port plus 1 x RS-232 and 1 x RS-485 serial ports
- Serial-to-Ethernet integration with Modbus communication to SCADA software
- XW-board I/O expansion bus for adding analogue, digital and serial functions
- 512 KB Flash, 16 KB EEPROM, 256 MB NAND Flash and microSD storage up to 32 GB
- Redundant power inputs, +12 ~ 48 VDC, 2.5 W consumption
4 248,90 kr per stk.
| 1–9 stk. | 4 248,90 kr | |
|---|---|---|
| 10–30 stk. | 4 124,23 kr | −3 % |
| 31+ stk. | 4 041,13 kr | −5 % |
Produktinformasjon "uPAC-5001D-FD Ethernet PAC, 80186-80 CPU, MiniOS7, 256 MB NAND Flash"
The uPAC-5001D-FD is a programmable automation controller for engineers who need to bring serial devices onto Ethernet without a separate gateway. Its 80186-80 CPU runs the MiniOS7 framework, and the C language development toolkit with Modbus libraries lets you build the control logic and communication routines on the controller.
Serial devices on the RS-232 or RS-485 ports can be polled and presented over the 10/100 Base-TX Ethernet port, and the standard Modbus protocol provides a route to common SCADA packages. For storage, the unit combines 512 KB of Flash, 16 KB of EEPROM and 256 MB of NAND Flash, with microSD expansion up to 32 GB. A real-time clock and a watchdog timer support unattended operation.
Hardware can be extended through the XW-board I/O expansion bus, which gives access to analogue and digital I/O and serial ports on add-on boards from the uPAC-5000 range. Redundant power inputs accept +12 to 48 VDC, and the DIN-rail housing suits control cabinet installation across an operating range of -25 to +75 °C.
Applications
- Serial device integration into Ethernet and Internet networks
- SCADA connectivity via Modbus
- Distributed control and data acquisition with I/O expansion boards
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 3 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NAND Flash | 256 MB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Storage Expansion | Yes, support up 32 GB microSD card |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 91 x 123 x 52 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
