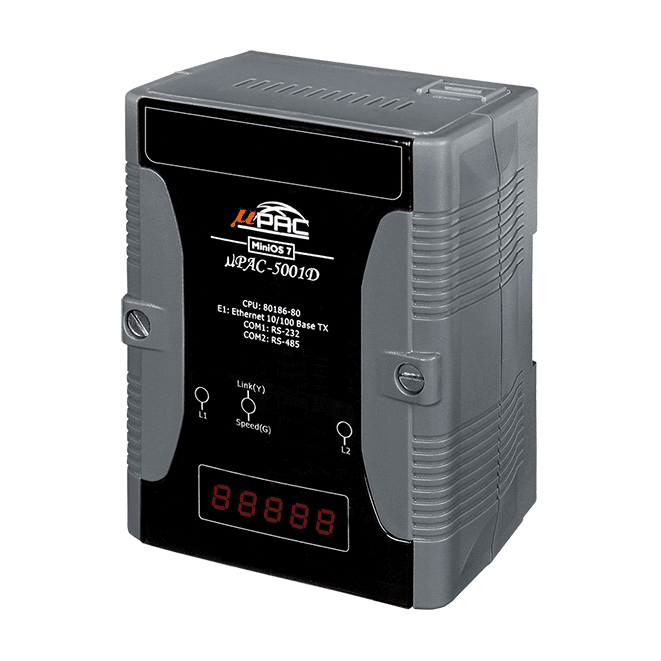

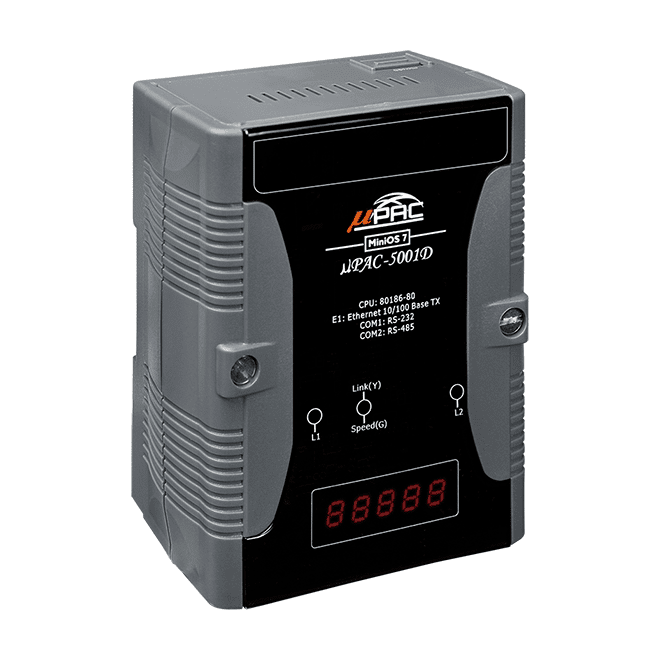

uPAC-5001D Ethernet PAC, MiniOS7 Controller with 5-Digit 7-Segment Display
Programmable automation controller with an 80186 CPU, MiniOS7, Ethernet, RS-232/RS-485 and an I/O expansion bus, for connecting serial devices to Ethernet networks and Modbus-based SCADA.
- Built-in MiniOS7 operating system with C language software development toolkits
- 10/100 Base-TX Ethernet, plus one RS-232 and one RS-485 port at up to 115200 bps
- 512 KB Flash, 16 KB EEPROM, 512 KB SRAM and microSD storage expansion up to 32 GB
- I/O expansion bus interface for XW-board expansion modules
- 5-digit 7-segment LED display and 2 programmable status LEDs
- Redundant power inputs, +12 ~ 48 VDC, 2.5 W consumption
3 978,80 kr per stk.
| 1–9 stk. | 3 978,80 kr | |
|---|---|---|
| 10–30 stk. | 3 864,52 kr | −3 % |
| 31+ stk. | 3 781,41 kr | −5 % |
Produktinformasjon "uPAC-5001D Ethernet PAC, MiniOS7 Controller with 5-Digit 7-Segment Display"

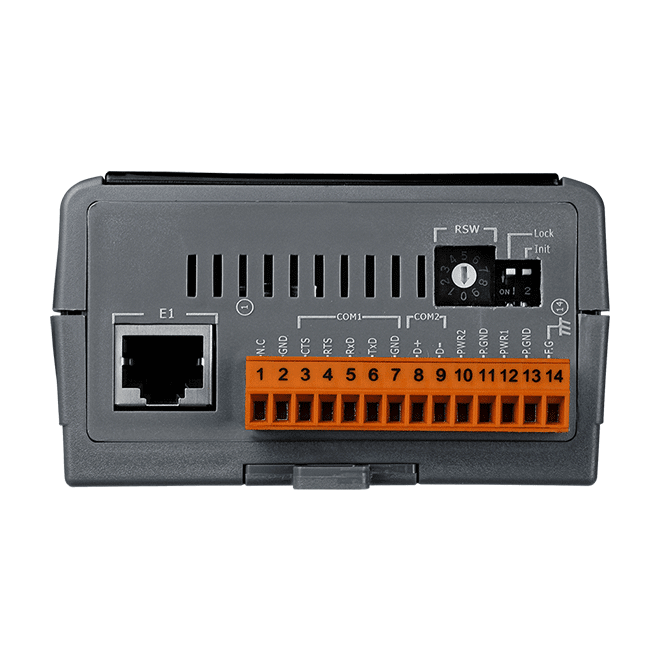

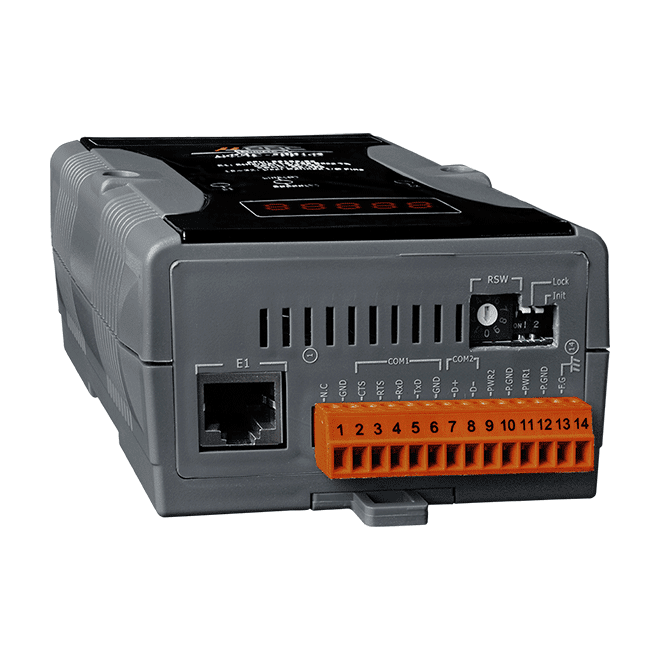

The uPAC-5001D is a compact programmable automation controller built around an 80186 CPU running at 80 MHz under the MiniOS7 framework. It suits engineers who need to bring serial field devices onto an Ethernet network, with one 10/100 Base-TX port alongside an RS-232 and an RS-485 port for device connections.

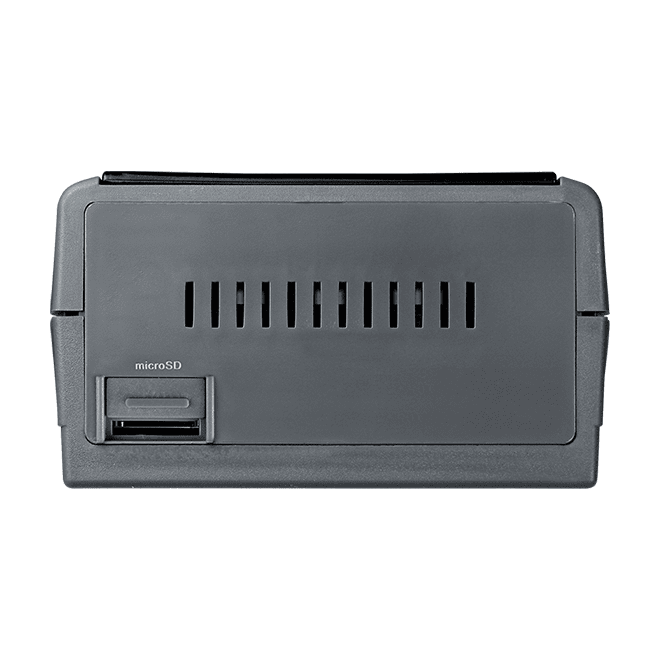

Application code is written in C using the supplied software development toolkits, including Modbus libraries, so that data from serial equipment can be exposed to SCADA packages over the standard Modbus protocol. Storage comprises 512 KB of Flash, 16 KB of EEPROM and a microSD slot that accepts cards of up to 32 GB.
For local hardware expansion, the controller provides an I/O expansion bus that accepts XW-board modules. Local feedback comes from a 5-digit 7-segment LED display and two programmable status LEDs, and the unit has redundant power inputs for a supply range of +12 ~ 48 VDC. This ordering code is the RoHS-compliant version.
Applications
- Integrating serial devices into Ethernet and Internet communication
- Modbus-based communication with SCADA software such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix
- Expandable I/O systems using XW-board modules on the expansion bus
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 3 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Storage Expansion | Yes, support up 32 GB microSD card |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 91 x 123 x 52 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
