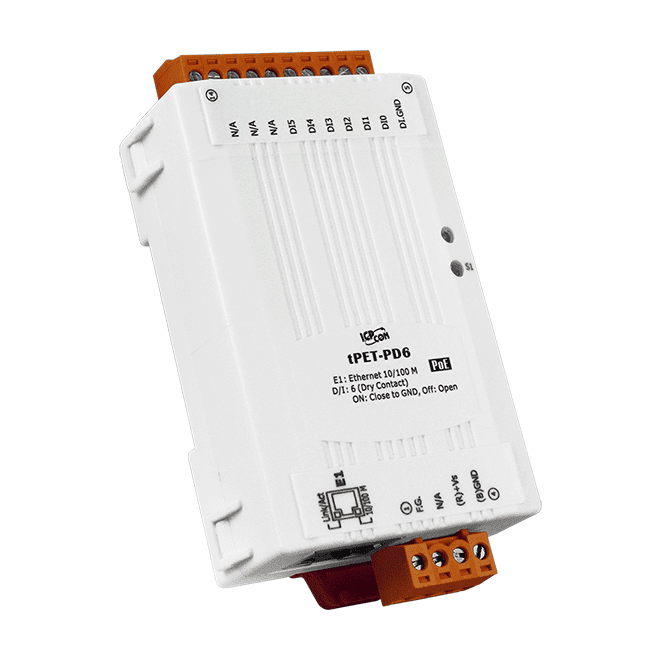

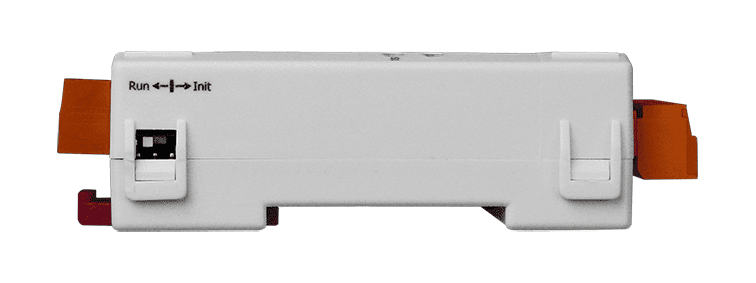

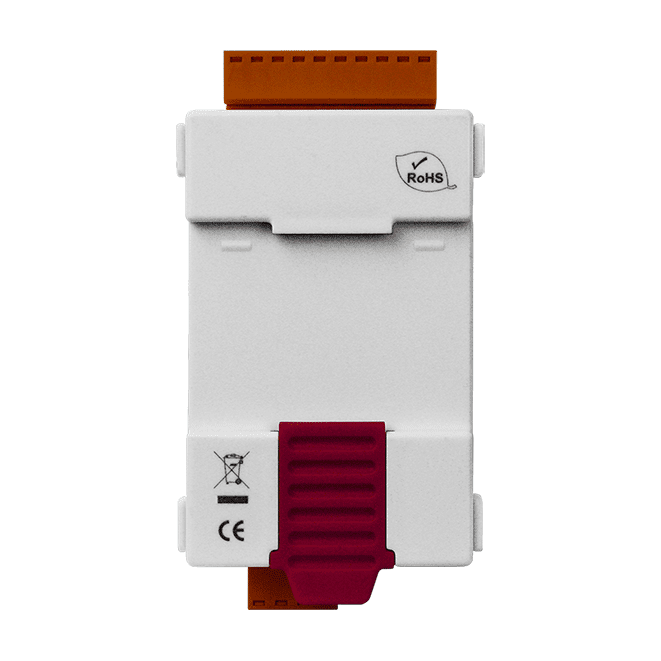

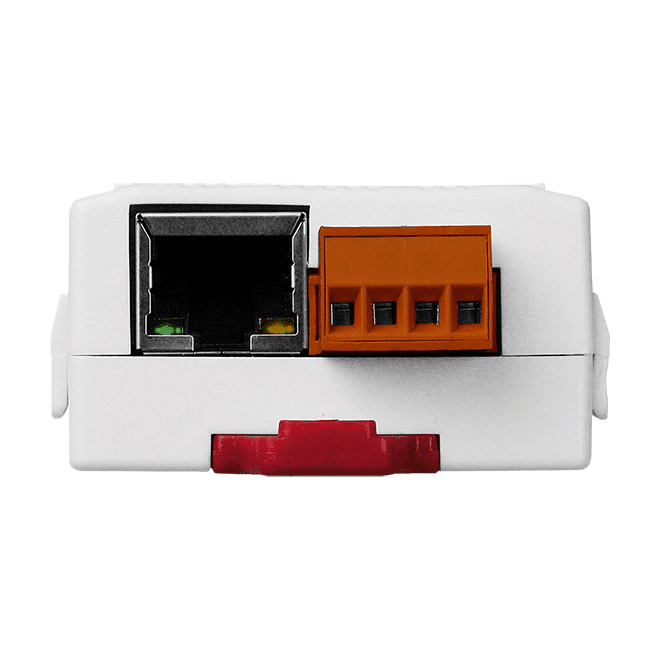

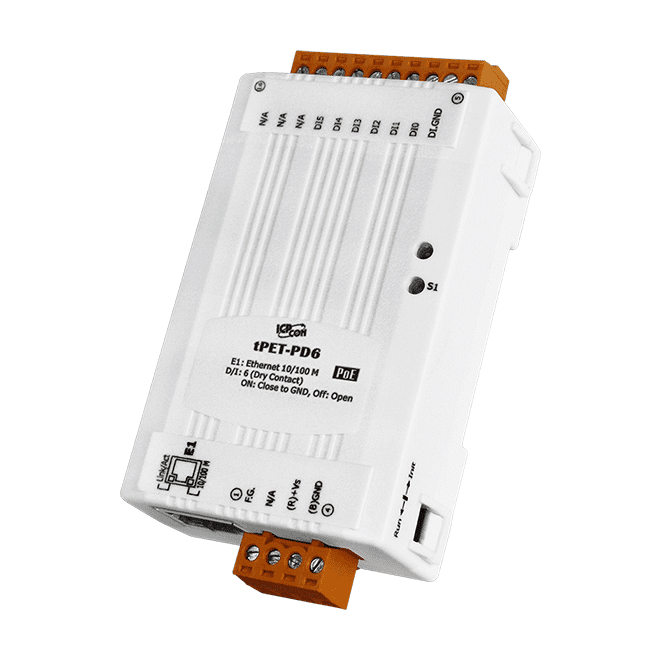

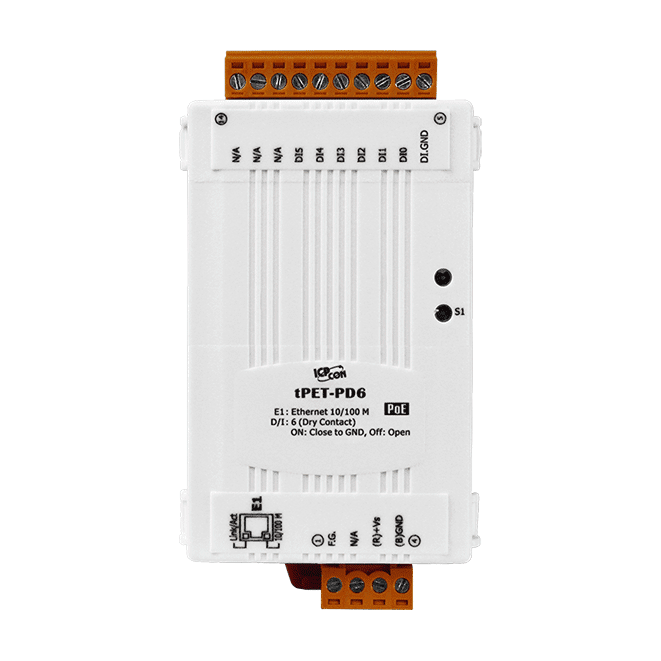

tPET-PD6 Tiny PoE Ethernet I/O Module, 6-ch Dry Contact DI
Compact PoE Ethernet I/O module with six dry-contact digital inputs, 32-bit counters and Modbus TCP, Modbus UDP and MQTT support for remote monitoring and control.
- Six dry-contact digital inputs with 32-bit counters, latched DI and frequency measurement (3.5 kHz without filter)
- Modbus TCP, Modbus UDP and MQTT over a single 10/100 Base-Tx RJ-45 port
- PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC terminal block power input with reverse polarity protection
- Dual watchdog with CPU and host monitoring
- I/O pair connection (push and pull) over Ethernet
- Built-in web server for configuration and firmware update via Ethernet
1 236,23 kr per stk.
| 1–9 stk. | 1 236,23 kr | |
|---|---|---|
| 10–30 stk. | 1 205,07 kr | −3 % |
| 31+ stk. | 1 173,90 kr | −5 % |
Produktinformasjon "tPET-PD6 Tiny PoE Ethernet I/O Module, 6-ch Dry Contact DI"
The tPET-PD6 CR is a compact Ethernet I/O module that brings six dry-contact digital inputs onto a 10/100 Base-Tx network. It suits engineers who need remote status monitoring and counting without a large footprint, with configuration handled through the built-in web server.
Each input supports latched DI, 32-bit counting and frequency measurement, and the module can pair its DI channels with a remote DO device over Ethernet, polling local inputs and writing to the remote device in the background. Communication runs over Modbus TCP, Modbus UDP or MQTT, so it can be integrated with HMI, SCADA, PLC and other software systems.
Power can come from PoE (IEEE 802.3af, Class 1) over a standard Category 5 cable, or from a +12 to +48 VDC terminal block input where no PoE switch is available. A CPU watchdog and a host watchdog help maintain operation, and the module mounts on DIN-rail or can be embedded directly into a machine.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | 10/100 Base-TX |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 6 |
| Ports: | 1 x RJ-45 |
| PoE: | Yes |
| Isolation: | 3750 Vrms |
| Power input: | PoE (IEEE 802.3af, Class 1) / +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Effective Distance | 500m (max.) |
| Isolation | 3750 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.3 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
