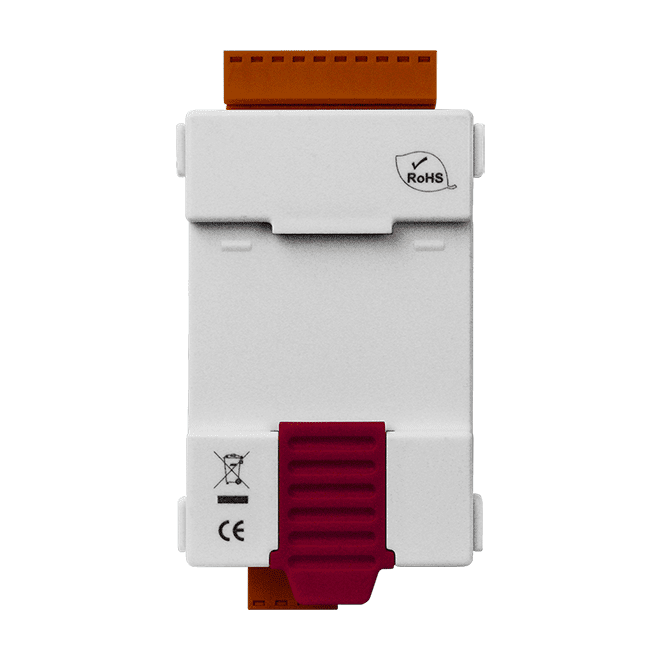

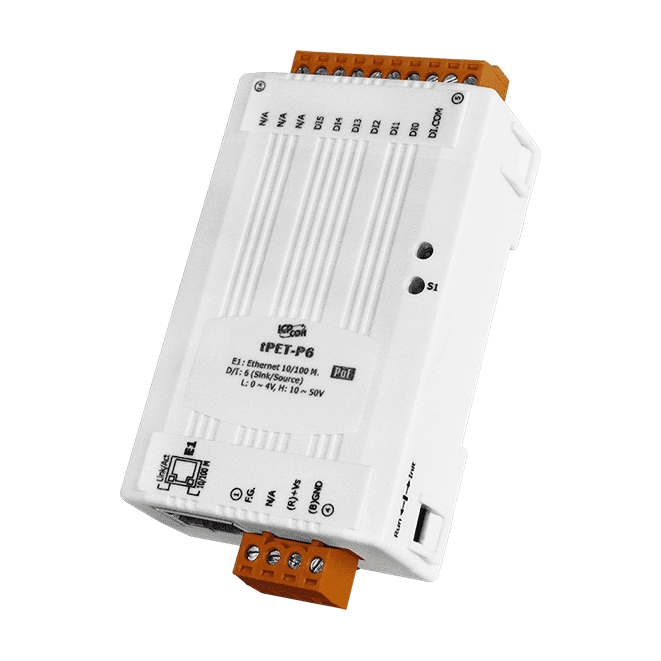

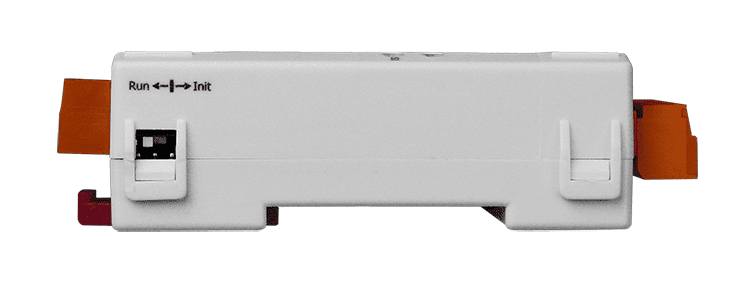

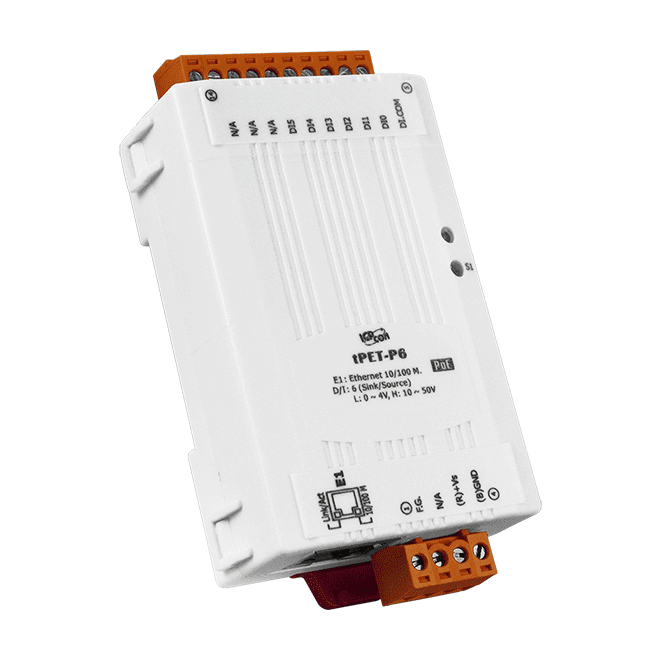

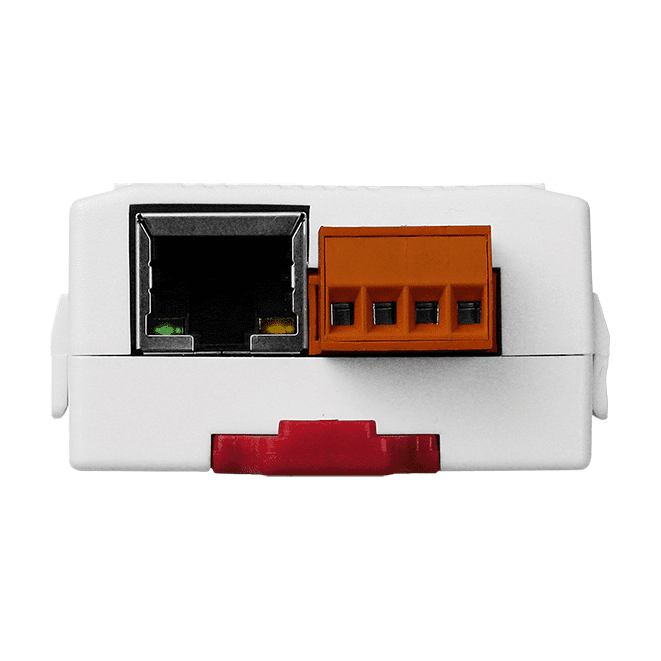

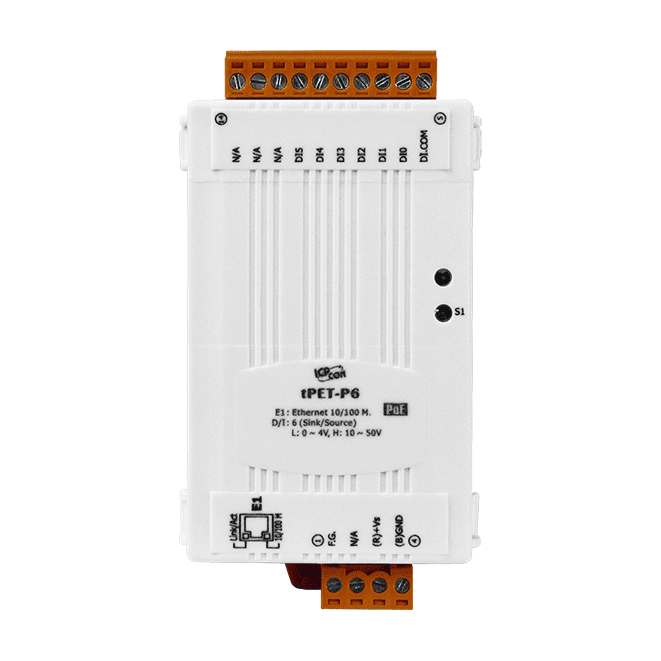

tPET-P6 PoE Ethernet I/O Module, 6-ch Wet DI Input
Compact PoE-powered Ethernet module with six wet-contact digital inputs, reporting over Modbus TCP/UDP and MQTT. Suited to DIN-rail installations where space is tight.
- Six wet-contact digital inputs with sink/source (NPN/PNP) wiring and 3750 Vrms isolation
- Modbus TCP, Modbus UDP and MQTT support over a single 10/100 Base-Tx RJ-45 port
- IEEE 802.3af Class 1 PoE with a redundant +12 to +48 VDC terminal block power input
- Latched DI, 32-bit DI counters and frequency measurement
- I/O pair connection (push and pull) for DI-to-remote-DO control over Ethernet
- Dual-watchdog: CPU watchdog plus host watchdog with predefined safe value
1 101,18 kr per stk.
| 1–9 stk. | 1 101,18 kr | |
|---|---|---|
| 10–30 stk. | 1 059,63 kr | −4 % |
| 31+ stk. | 1 038,85 kr | −6 % |
Produktinformasjon "tPET-P6 PoE Ethernet I/O Module, 6-ch Wet DI Input"
The tPET-P6 is a tiny Ethernet I/O module that brings six sink/source wet-contact digital inputs onto a 10/100 Mbit/s network. It can be read and controlled from SCADA, HMI and PLC systems using Modbus TCP, Modbus UDP or MQTT, and its built-in web server handles configuration without extra software.
Each input supports latched detection, 32-bit counting and frequency measurement, with a 3.5 kHz frequency rating when the input filter is disabled. The I/O pair connection feature lets the module poll local inputs and write to a remote device over Ethernet in the background, which is useful for simple distributed control without a central controller in the loop.
Power can come from a standard Category 5 cable via IEEE 802.3af Class 1 PoE, or from a +12 to +48 VDC terminal block input when no PoE switch is available. A dual-watchdog arrangement covers both the module firmware and the host, with a programmable safe value for outputs if the host fails. The unit is housed in a 52 x 95 x 27 mm enclosure for DIN-rail mounting.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 6 |
| Ports: | 1 |
| PoE: | Yes |
| Isolation: | 3750 Vrms |
| Power input: | PoE (IEEE 802.3af, Class 1) / +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
