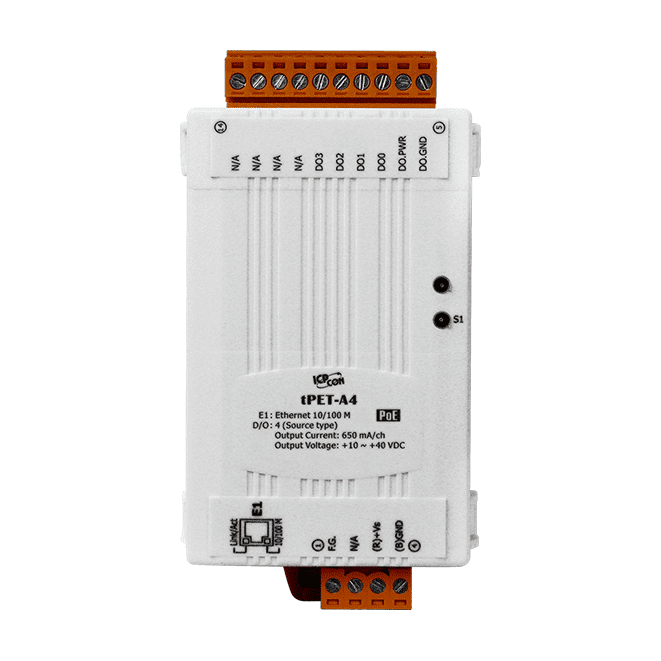

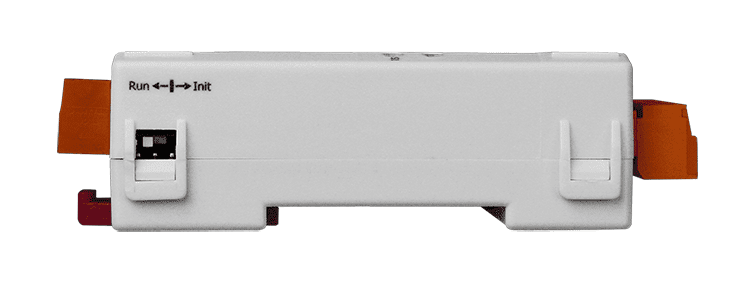

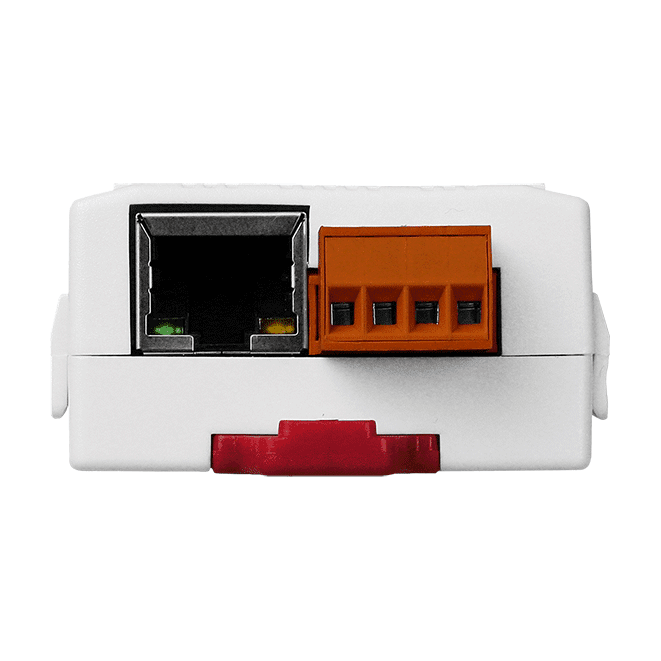

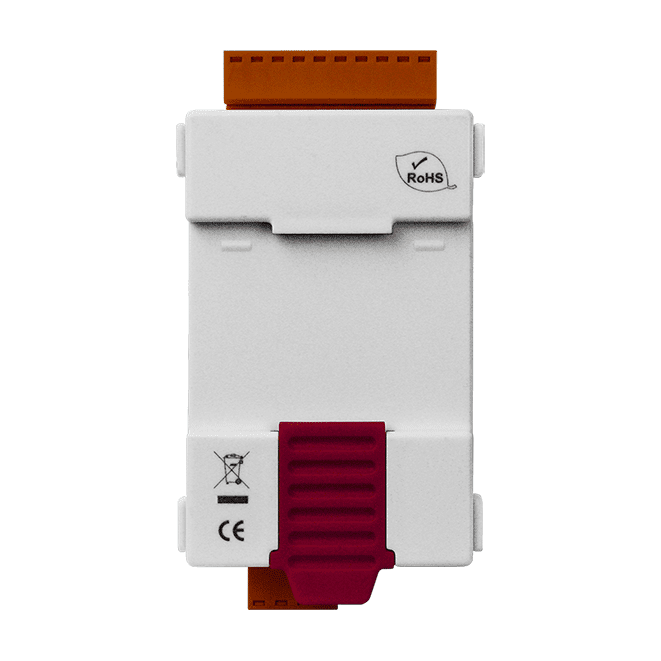

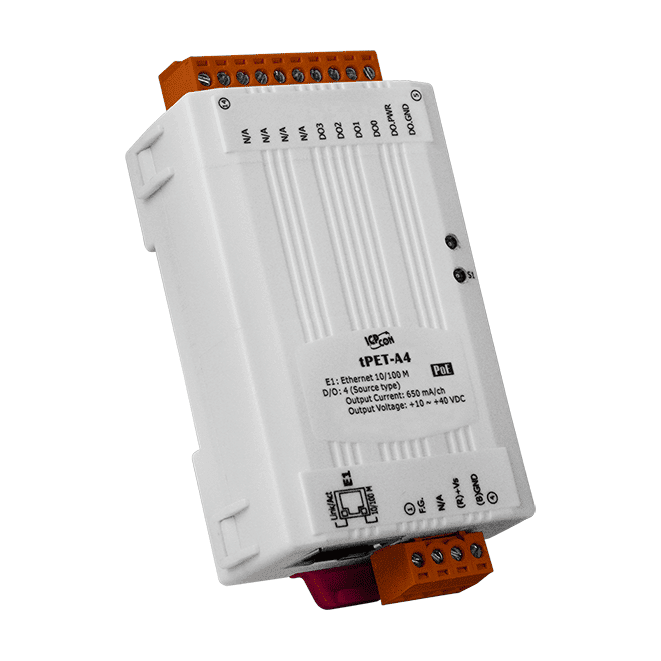

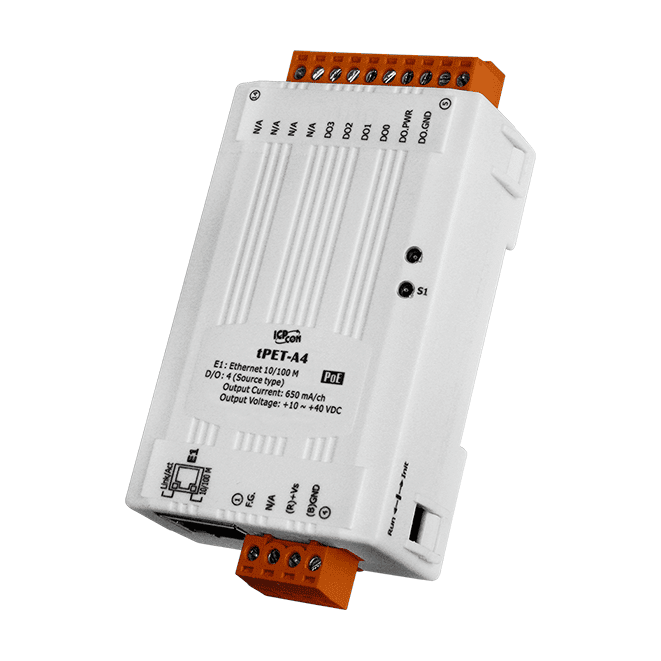

tPET-A4 Tiny PoE Ethernet Module, 4-ch Digital Output (Source/PNP)
Compact PoE Ethernet I/O module with four source-type digital outputs, Modbus TCP/UDP and MQTT support, and dual-watchdog protection for remote control.
- Four open-collector digital outputs, source (PNP) type, 650 mA per channel, +10 to +40 VDC load voltage
- Modbus TCP, Modbus UDP and MQTT protocols over 10/100 Base-Tx Ethernet
- Dual watchdog: CPU and host, with programmable DO power-on and Safe Values
- PoE (IEEE 802.3af, Class 1) with redundant +12 to +48 VDC terminal block input
- Built-in web server for configuration, with password and IP filter access control
- Short-circuit protection on outputs and 3750 Vrms isolation
1 163,51 kr per stk.
| 1–9 stk. | 1 163,51 kr | |
|---|---|---|
| 10–30 stk. | 1 132,35 kr | −3 % |
| 31+ stk. | 1 111,57 kr | −4 % |
Produktinformasjon "tPET-A4 Tiny PoE Ethernet Module, 4-ch Digital Output (Source/PNP)"
The tPET-A4 is a compact Ethernet I/O module that gives engineers remote control of four source-type (PNP) open-collector digital outputs over 10/100 Base-Tx Ethernet. It supports Modbus TCP, Modbus UDP and MQTT, so it can be integrated with HMI, SCADA, PLC and other software systems.
A dual-watchdog design protects the process. The CPU watchdog resets the system if the built-in firmware runs abnormally, while the host watchdog switches the outputs to a predefined Safe Value if the controller fails. Power can come from PoE (IEEE 802.3af, Class 1) over a standard category 5 cable, or from a +12 to +48 VDC terminal block input when no PoE switch is available.
The module measures 52 x 95 x 27 mm (W x L x H), mounts on DIN-rail and can be embedded directly in a machine. Two removable terminal blocks simplify wiring. The operating range is -25 ~ +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital outputs: | 4 |
| Ports: | 1 |
| PoE: | Yes |
| Isolation: | 3750 Vrms |
| Power input: | PoE (IEEE 802.3af, Class 1), +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 to +40 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | +48 VDC |
| Short-circuit Protection | Yes |
| Isolation | 3750 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
