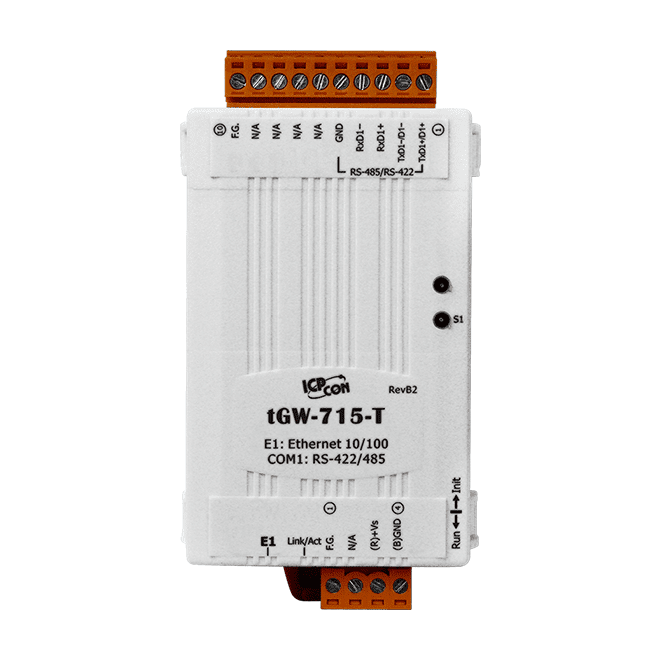

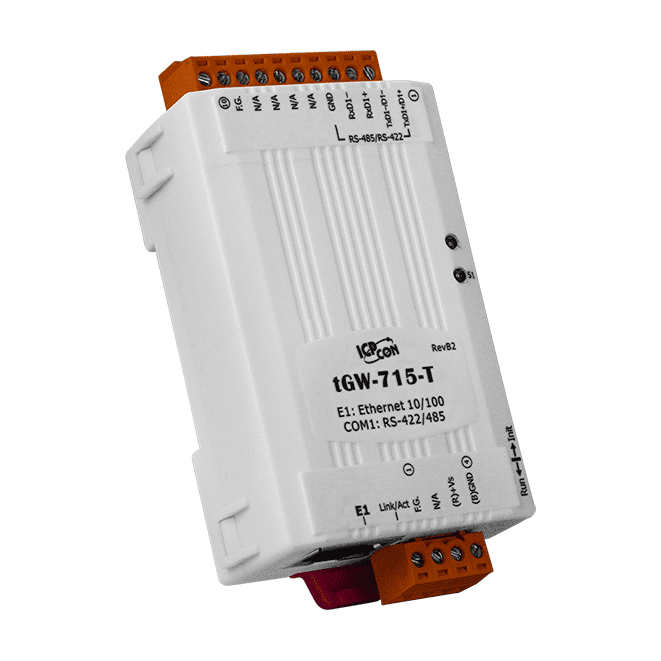

tGW-715-T Tiny Modbus TCP to RTU/ASCII Gateway, 1-port RS-422/485
Compact Modbus TCP to RTU/ASCII gateway with one RS-422/485 serial port, letting Ethernet masters reach serial Modbus devices. Terminal block power input and DIN-rail mounting.
- Supports Modbus TCP/UDP master and slave on the Ethernet side and Modbus RTU/ASCII master and slave on the serial side
- One RS-422/485 port with baud rates up to 115200 bps and automatic RS-485 direction control
- Up to 32 TCP masters per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced RS-485 bus loading
- Static IP or DHCP network configuration, UDP Search device discovery and HTTP web configuration
- Terminal block connector for easy wiring and DIN-rail mounting
1 288,17 kr per stk.
| 1–9 stk. | 1 288,17 kr | |
|---|---|---|
| 10–30 stk. | 1 257,01 kr | −2 % |
| 31+ stk. | 1 225,84 kr | −5 % |
Produktinformasjon "tGW-715-T Tiny Modbus TCP to RTU/ASCII Gateway, 1-port RS-422/485"
The tGW-715-T CR is a compact gateway that lets Modbus TCP and UDP masters communicate with serial Modbus RTU and ASCII devices over Ethernet. It is a practical way to bring legacy serial equipment into an Ethernet-based SCADA or HMI system without being limited by serial cable length.
The gateway can also be set up for pair-connection, serial-bridge or serial-tunnel applications, routing Modbus data over TCP/IP between two serial devices. This suits mainframes, servers or other serial equipment that uses Modbus RTU or ASCII but has no Ethernet capability of its own.
A read-cache stores previous requests and responses, so repeated requests from several masters to the same slave are answered immediately. This reduces traffic on the RS-485 bus and gives faster TCP responses. The -T variant takes its supply from a terminal block rated +12 ~ 48 VDC.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Modbus gateway |
|---|---|
| Interface: | RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| COM Ports | |
| Ports | 1 x RS-485/422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 mm x 95 mm x 27 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
