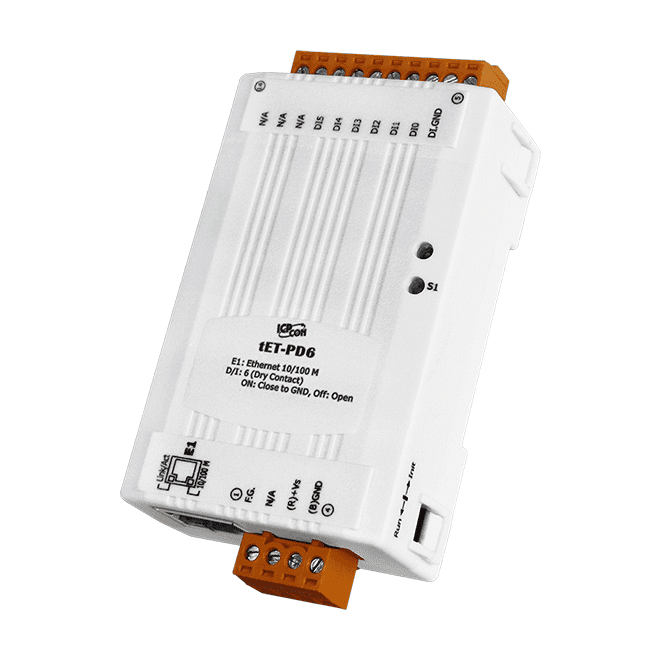

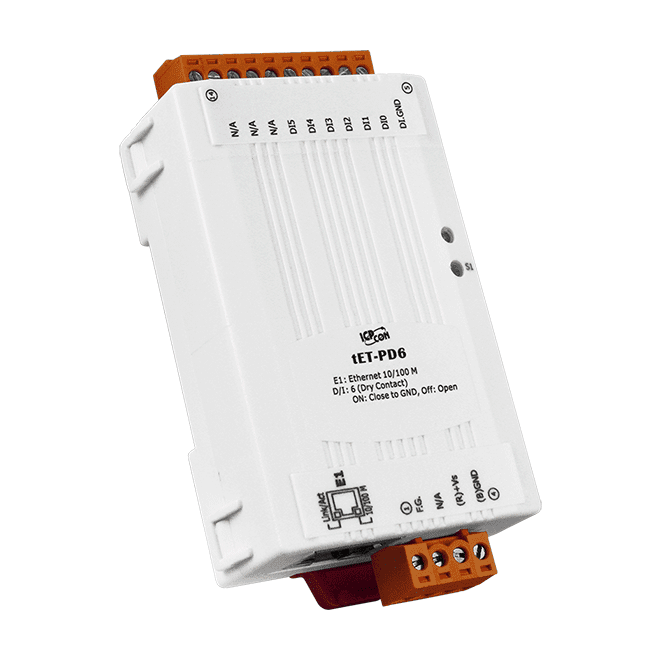

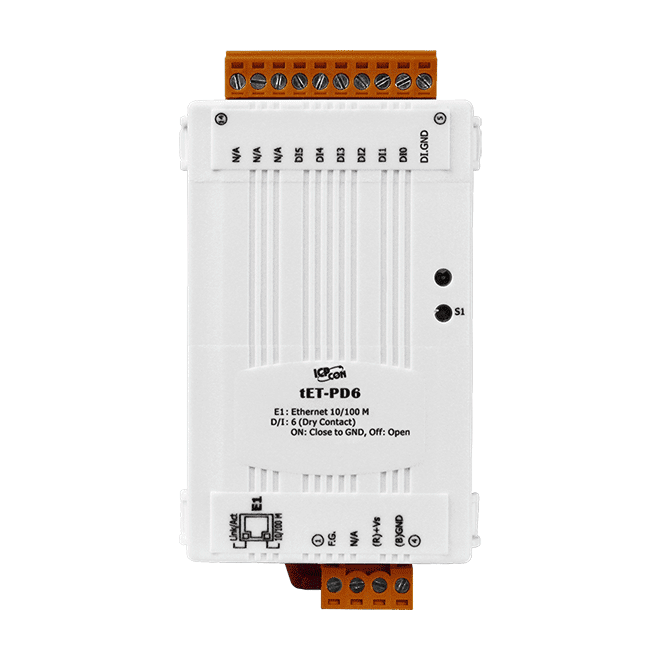

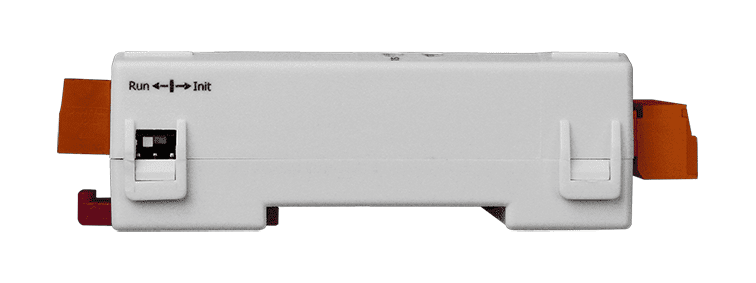

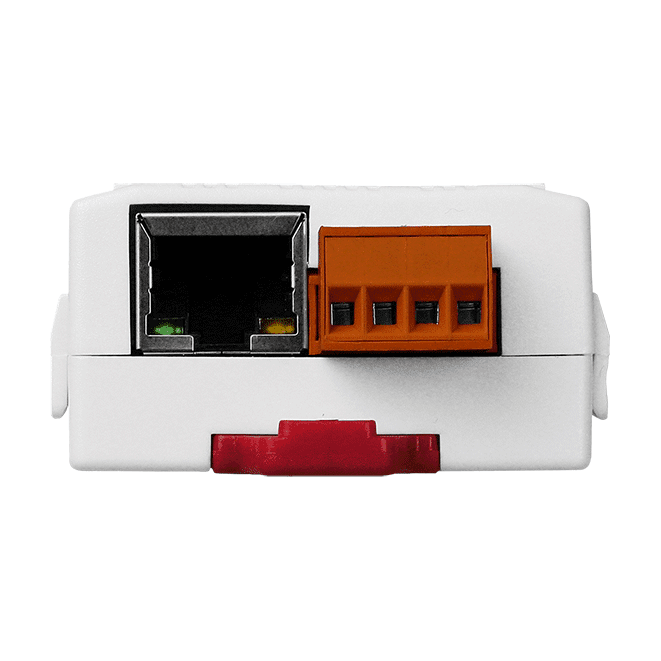

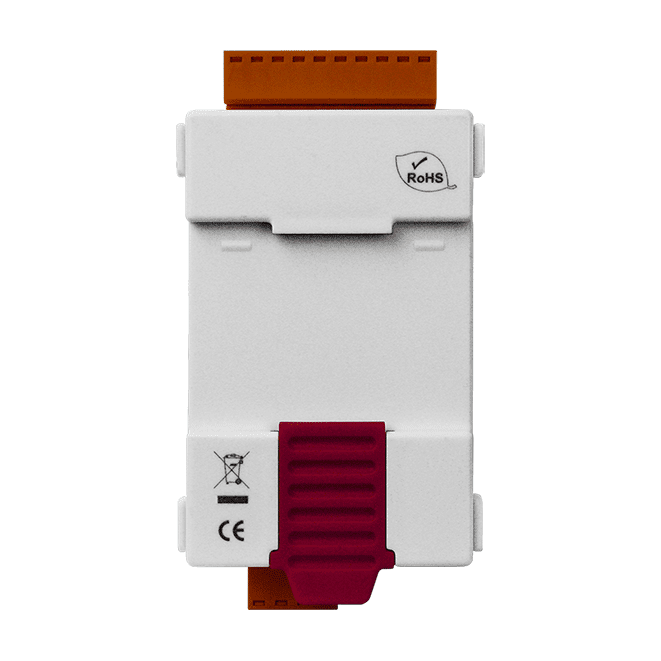

tET-PD6 Tiny Ethernet I/O Module, 6-ch Dry Contact Digital Input
Compact Ethernet I/O module with six dry-contact digital inputs, 32-bit counters and Modbus TCP, Modbus UDP and MQTT support for remote monitoring. DIN-rail mounted.
- Six dry-contact digital inputs with latched DI, 32-bit counters and frequency measurement
- Modbus TCP, Modbus UDP and MQTT protocols over one 10/100 Base-Tx RJ-45 port
- Built-in web server for configuration, with password and IP filter access control
- Dual-watchdog function: CPU watchdog and programmable communication watchdog
- I/O pair connection for DI to remote DO pairing over Ethernet
- Firmware update via Ethernet
1 153,12 kr per stk.
| 1–9 stk. | 1 153,12 kr | |
|---|---|---|
| 10–30 stk. | 1 111,57 kr | −4 % |
| 31+ stk. | 1 090,79 kr | −5 % |
Produktinformasjon "tET-PD6 Tiny Ethernet I/O Module, 6-ch Dry Contact Digital Input"
The tET-PD6 CR is a compact Ethernet module that monitors six dry-contact digital inputs and reports their status over a 10/100 Base-Tx network. It can be configured through its built-in web server and communicates using Modbus TCP, Modbus UDP or MQTT, so it can feed HMI, SCADA, PLC or other software systems without additional protocol converters.
Each input supports latched operation, 32-bit counting and frequency measurement, with a rated frequency of 3.5 kHz without filter and a minimum pulse width of 0.15 ms. The inputs are isolated to 3750 Vrms and the effective wiring distance is up to 500 m, which suits distributed sensing in plant and building installations.
The module uses a 32-bit MCU, a CPU watchdog and a host watchdog for added operational security, and its firmware can be updated over Ethernet. Its small housing mounts on a DIN rail and it is powered from a +12 to +48 VDC terminal block with reverse polarity protection. It operates from -25 to +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 6 |
| Ports: | 1 x RJ-45 |
| Isolation: | 3750 Vrms |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Effective Distance | 500m (max.) |
| Isolation | 3750 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.2 W |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
