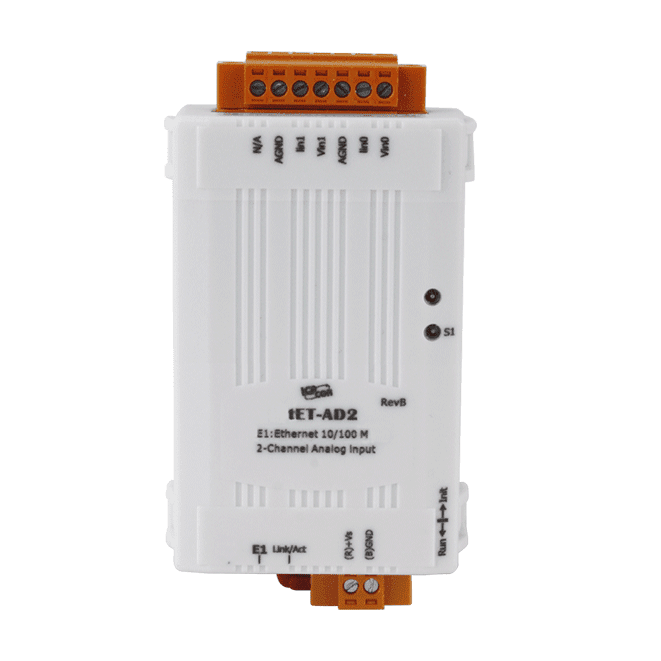

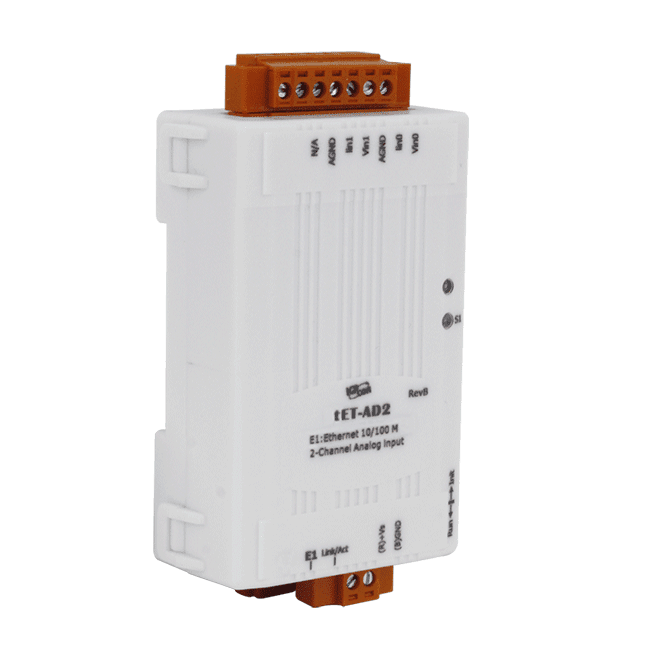

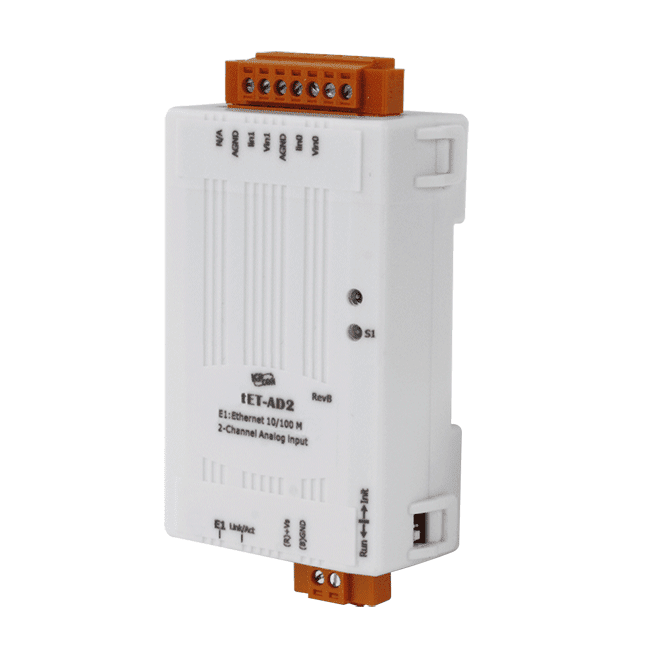

tET-AD2 Tiny Ethernet Module, 2-ch Isolated Analog Input
Compact Ethernet I/O module with 2 single-ended analog inputs for voltage and current signals, 16-bit resolution, and Modbus TCP/UDP and MQTT support.
- Two single-ended analog inputs with voltage (0 ~ 500 mV to 0 ~ 10 V) and current (0 ~ +20 mA, +4 ~ +20 mA) ranges, configurable per channel
- 16-bit resolution with selectable Normal Mode (10 Hz total) or Fast Mode (200 Hz total) sampling
- Modbus TCP, Modbus UDP, MQTT and SNMP V2c support over one 10/100 Base-Tx RJ-45 port
- 3000 VDC I/O isolation and 1500 VDC Ethernet isolation, with 120 VDC overvoltage protection
- Open wire detection for 4 to 20 mA inputs
- Built-in web server for configuration, with password and IP filter access control
1 381,67 kr per stk.
| 1–9 stk. | 1 381,67 kr | |
|---|---|---|
| 10–30 stk. | 1 340,12 kr | −3 % |
| 31+ stk. | 1 308,95 kr | −5 % |
Produktinformasjon "tET-AD2 Tiny Ethernet Module, 2-ch Isolated Analog Input"
The tET-AD2 CR is a DIN-rail Ethernet I/O module that brings two single-ended analog inputs onto a network. Each input can be configured for voltage ranges from 0 ~ 500 mV up to 0 ~ 10 V, or for current ranges of 0 ~ +20 mA and +4 ~ +20 mA, so one module suits a wide mix of field transmitters and sensors.
Data is available over Modbus TCP, Modbus UDP, MQTT and SNMP V2c through a single 10/100 Base-Tx RJ-45 port. Sampling can be switched between Normal Mode (10 Hz total across channels) and Fast Mode (200 Hz total), letting you trade accuracy for update speed. Open wire detection is provided for the 4 to 20 mA range.
Electrical robustness is a strong point: the module offers 120 VDC overvoltage protection, 3000 VDC isolation between I/O and the module, 1500 VDC isolation on the Ethernet side, and ESD and EFT immunity to IEC 61000-4-2 and IEC 61000-4-4. Configuration is handled through the built-in web server, with password and IP filter access control. The module is powered from a +12 to +48 VDC terminal block and is rated for -25 ~ +75 °C operation.
Applications
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Analog inputs: | 2 |
| Ports: | 1 |
| Isolation: | 3000 VDC (I/O), 1500 VDC (Ethernet) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Input | |
| Channels | 2 Single-ended |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 200 Hz (total channels) |
| Input Impedance | Voltage: 10 MΩ Current: 137 Ω |
| Overvoltage Protection | 120 VDC |
| Overcurrent Protection | 50 mA at 110 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 to 20 mA only |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 96 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
