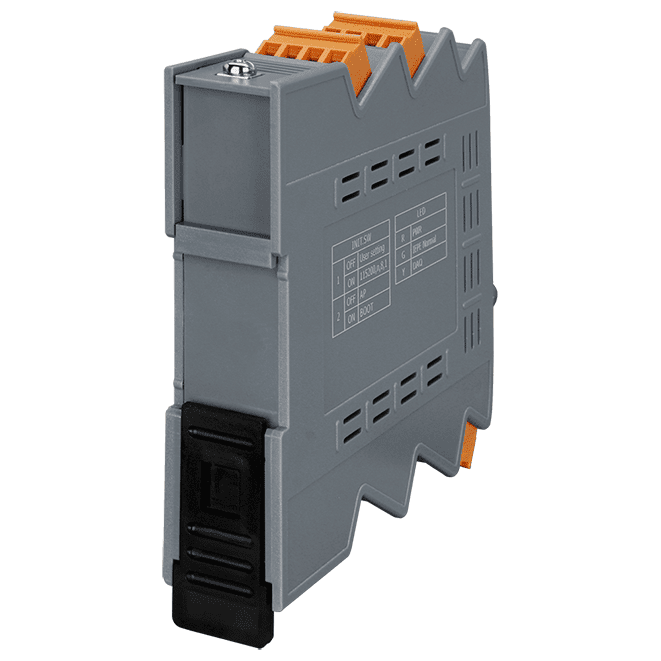

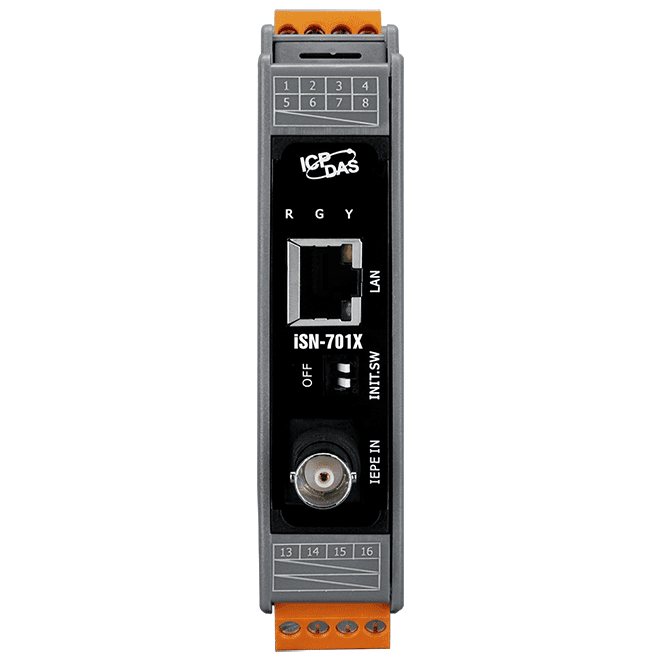

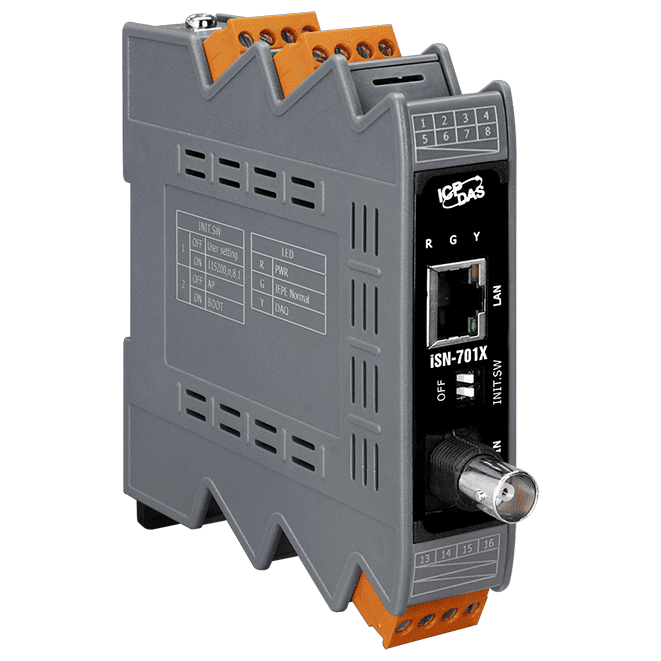

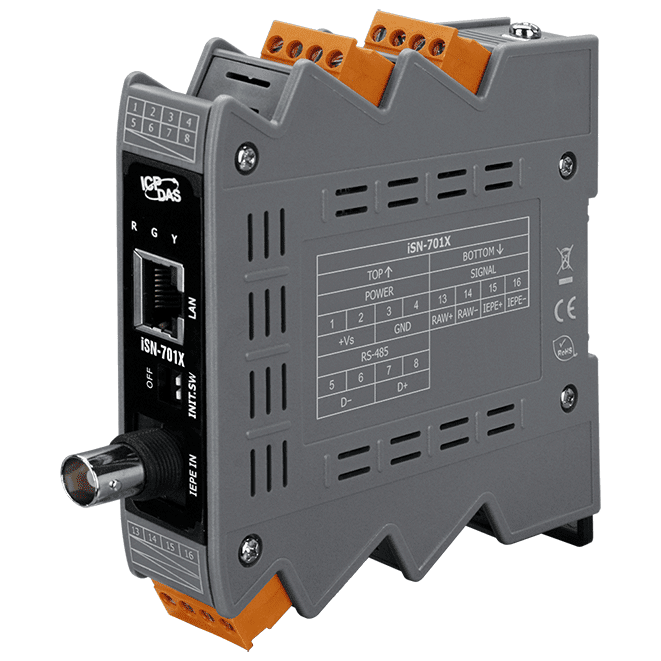

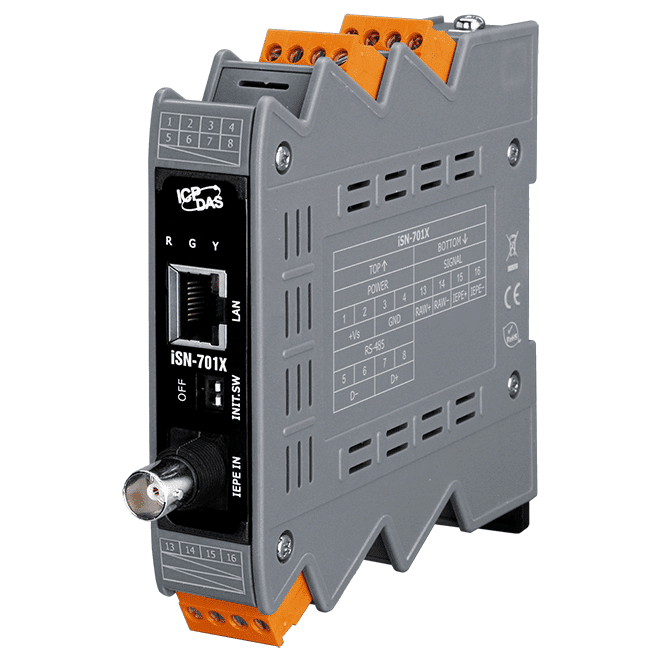

iSN-701X IEPE Vibration to Modbus TCP/RTU Converter, 1-Channel
1-channel IEPE vibration signal converter with Modbus TCP and Modbus RTU slave interfaces, 24-bit A/D conversion, 4 mA excitation current and DIN-rail mounting.
- 1-axis IEPE vibration measurement with built-in 4 mA excitation current
- 24-bit A/D converter, sampling rate 32 or 64 kHz, bandwidth 6 Hz ~ 6.4 kHz
- Modbus TCP slave on 1 x RJ-45 10/100Base-T(X) port
- Modbus RTU slave on 1 x RS-485 port, up to 115200 bps
- Converts vibration signal into eigenvalues with threshold alarm function
- LED indicators for sensor Normal/Open/Short and PWR, IEPE, DAQ status
3 978,80 kr per stk.
| 1–9 stk. | 3 978,80 kr | |
|---|---|---|
| 10–30 stk. | 3 864,52 kr | −3 % |
| 31+ stk. | 3 781,41 kr | −5 % |
Produktinformasjon "iSN-701X IEPE Vibration to Modbus TCP/RTU Converter, 1-Channel"
The iSN-701X converts a 1-axis IEPE accelerometer signal into eigenvalues that can be read directly over Ethernet or RS-485. The built-in 4 mA excitation current powers the sensor, and a 24-bit A/D converter handles the measurement, so the module can be connected to the accelerometer without a separate signal conditioner.
Measured values are available through Modbus TCP on the RJ-45 port or Modbus RTU on the RS-485 port. The module also provides a threshold alarm: an alarm is raised when a vibration eigenvalue exceeds its configured limit. LED indicators show sensor Normal, Open and Short status.
Engineers choosing this converter for vibration monitoring will find it suited to trend analysis, system monitoring and predictive maintenance schemes that need vibration data in a Modbus-based control or data system.
Applications
- Big data analysis
- System monitoring
- Trend analysis
- Predictive maintenance
| Product type: | Vibration signal converter |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Analog inputs: | 1 |
| Analog outputs: | 1 |
| Ports: | 2 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 X PWR 1 X IEPE 1 X DAQ |
| Analog Input | |
| Channels | 1 |
| Type | IEPE |
| Range | ±10 V |
| Resolution | 24 bit |
| Sampling Rate | 32, 64 (kHz) |
| Bandwidth | 6 Hz ~ 6.4 kHz |
| Excitation Current | 4 mA |
| Analog Output | |
| Type | Voltage x 1 |
| Range | Voltage: ±10 V |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Protocol | Modbus TCP |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 120 mm x 117 mm (W x L x H) |
| Installation | Din-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
