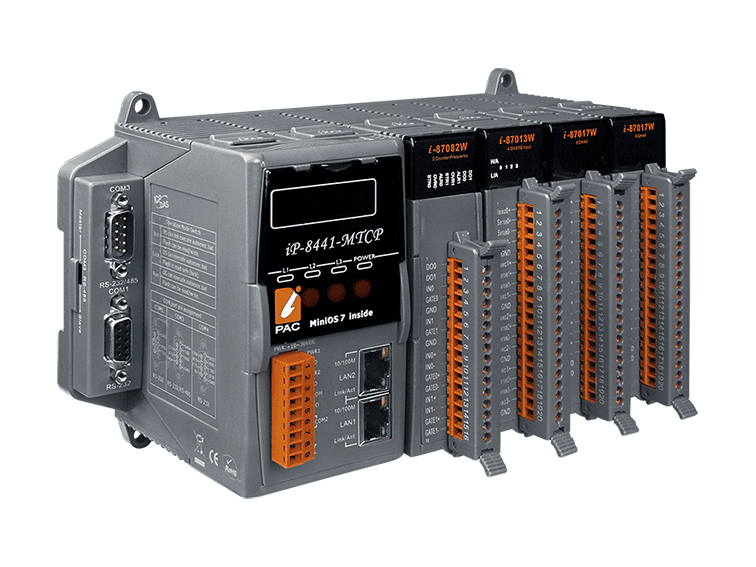

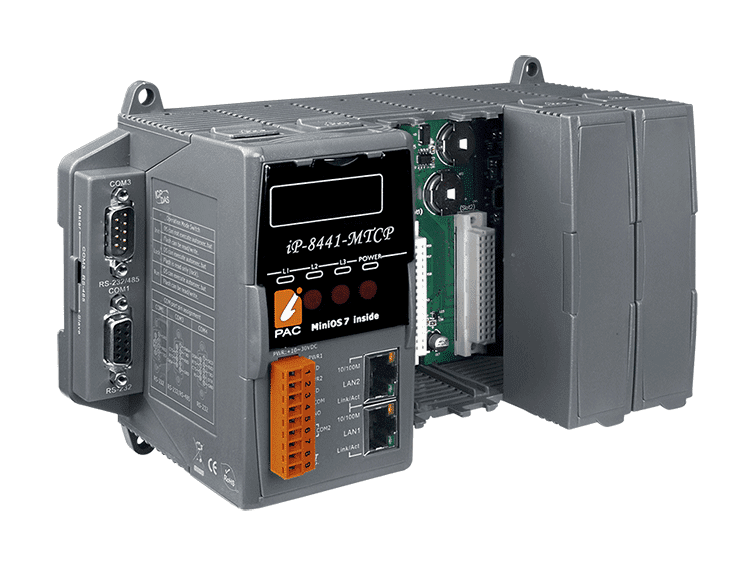

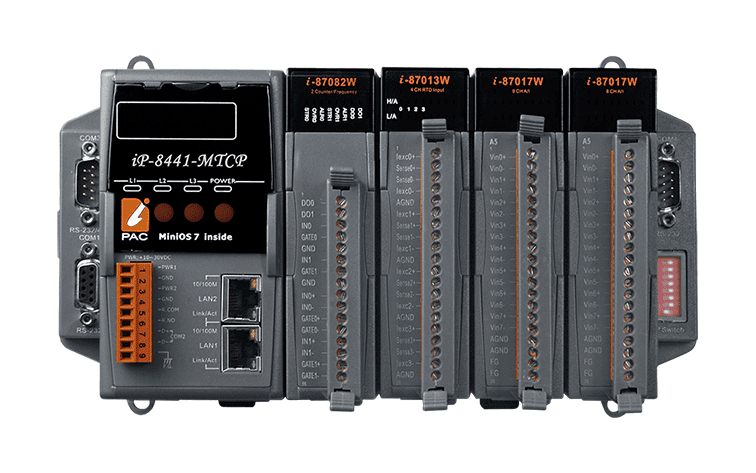

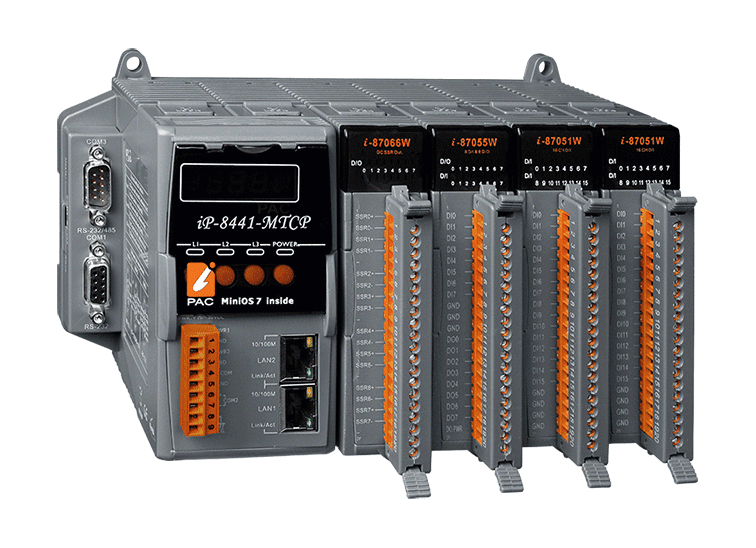

iP-8441-MTCP Modbus TCP I/O Expansion Unit, 4-Slot for I-8K/I-87K Modules
4-slot Modbus TCP expansion unit that brings I-8K and I-87K series I/O modules onto Ethernet, with two RJ-45 ports and Modbus RTU/ASCII serial support.
- Expands four slots of I-8K and I-87K series I/O modules over Ethernet
- Modbus TCP slave with Modbus TCP to RTU gateway function
- Two independent 10/100 Base-TX Ethernet ports (RJ-45)
- Wide 10 ~ 30 VDC power input with isolated power and redundant power input option
- Operating temperature -25 ~ +75 °C for harsh environments
- Auto configuration, LED fault indicators, dual watchdog, programmable power-on and safe values
6 014,94 kr per stk.
| 1–9 stk. | 6 014,94 kr | |
|---|---|---|
| 10–30 stk. | 5 838,34 kr | −3 % |
| 31+ stk. | 5 713,68 kr | −5 % |
Produktinformasjon "iP-8441-MTCP Modbus TCP I/O Expansion Unit, 4-Slot for I-8K/I-87K Modules"
The iP-8441-MTCP extends I-8K and I-87K series I/O modules over Ethernet, so analog, digital, counter and frequency channels can be read and controlled from a Modbus TCP host. Each unit provides four slots, and the range of supported modules covers more than 50 types, which makes it a practical choice when a distributed I/O layout must be built around an existing module set.
The unit is aimed at electrically noisy, harsh sites. It accepts a wide 10 ~ 30 VDC supply with isolated power input, carries a redundant power input option and operates between -25 and +75 °C. Installation and maintenance are simplified by auto configuration, LED fault indication, a dual watchdog, programmable power-on values and programmable safe values.
For integration, the Modbus TCP slave function is complemented by Modbus TCP to RTU gateway capability and Modbus RTU/ASCII slave operation on the serial ports. An SDK is available for Windows XP, Windows CE 5.0/6.0, Linux and MiniOS7, and the built-in MiniOS7 platform can be customised in C for 16-bit executables.
Applications
- Industrial monitoring and control
- Remote I/O expansion for SCADA, HMI and PLC systems
- Harsh or electrically noisy industrial environments
- Environmental monitoring over Modbus
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 2 Ethernet |
| Isolation: | 1 kV power, 3000 VDC RS-485 |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 768 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 1 x microSD card slot, supports up to 32 GB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Run, 1 x Module offline, 1 x WDT, 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 4 |
| HMI | |
| Buzzer | Yes |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus TCP Slave, Modbus TCP to RTU Gateway |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Protocol | Modbus RTU/ASCII Slave |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.7 W |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
