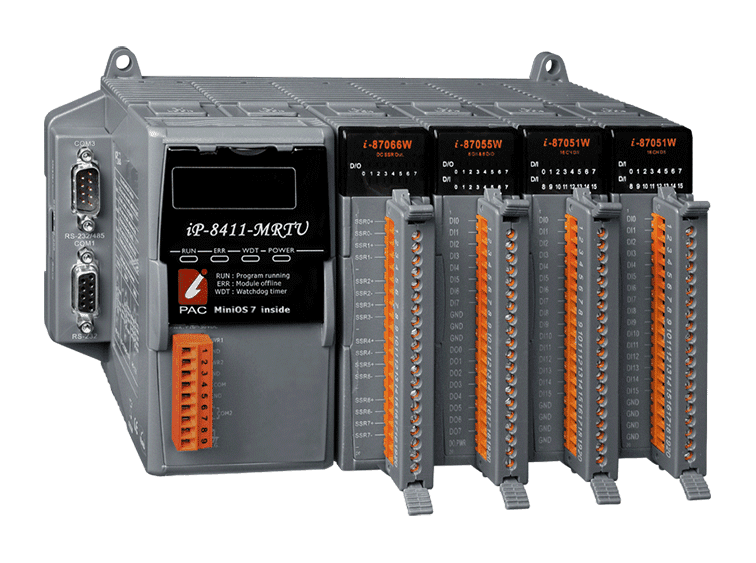

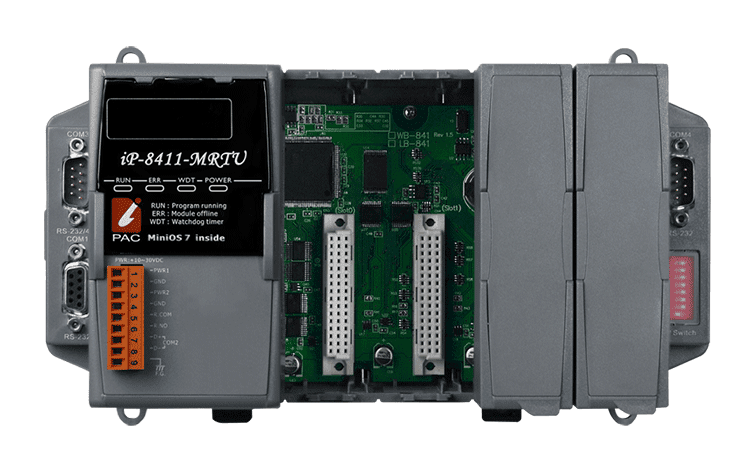

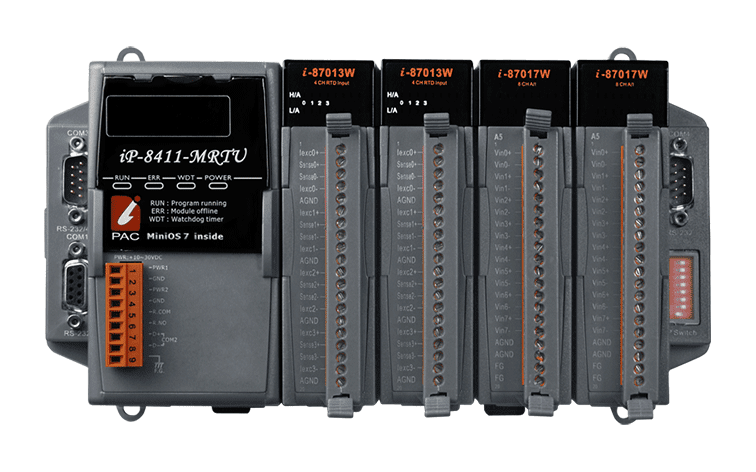

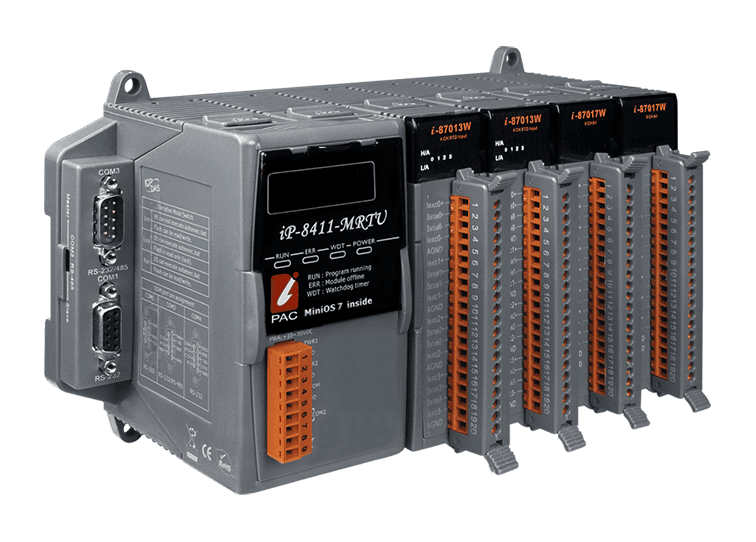

iP-8411-MRTU 4-Slot Modbus RTU I/O Expansion Unit for I-8K and I-87K Modules
Four-slot Modbus RTU/ASCII slave expansion unit for I-8K and I-87K series I/O modules, with a 10 ~ 30 VDC input range and -25 ~ +75 °C operating temperature.
- Modbus RTU/ASCII slave operation over serial ports
- Four slots for I-8K and I-87K series I/O modules
- Auto configuration to simplify module setup
- LED indicators for fault detection and system status
- Watchdog timer and redundant power inputs
- Isolated RS-485 port rated 3000 VDC
5 838,34 kr per stk.
| 1–9 stk. | 5 838,34 kr | |
|---|---|---|
| 10–30 stk. | 5 661,73 kr | −3 % |
| 31+ stk. | 5 547,46 kr | −5 % |
Produktinformasjon "iP-8411-MRTU 4-Slot Modbus RTU I/O Expansion Unit for I-8K and I-87K Modules"
The iP-8411-MRTU extends a serial Modbus network with four slots for I-8K and I-87K series I/O modules. It lets a Modbus RTU/ASCII master read and control analogue and digital I/O, counter and frequency modules over the serial port, so remote I/O can be added to monitoring and control systems without a separate controller.
The unit suits electrically noisy and demanding sites. It accepts a wide 10 ~ 30 VDC supply with isolated power input and redundant power inputs, and it operates between -25 ~ +75 °C. Auto configuration, LED fault indicators and a watchdog timer simplify commissioning and maintenance of the installed modules.
Because Modbus is widely supported by SCADA software, HMIs and PLCs, the unit can be integrated with common automation platforms. Mounting options are DIN-rail or wall, and the 8-bit DIP switch sets the device address.
Applications
- Industrial monitoring and control
- Remote I/O for SCADA, HMI and PLC systems
- Harsh or electrically noisy industrial environments
- Environmental monitoring
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | Modbus RTU/ASCII |
| Ports: | 4 |
| Isolation: | 3000 VDC (RS-485), 1 kV (power) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 4 GB microSD card (up to 32 GB) |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 3 x System (RUN, ERR, WDT), 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 4 |
| HMI | |
| Buzzer | Yes |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Protocol | Modbus RTU/ASCII Slave |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.7 W |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
