ZT-2550 RS-232/RS-485 to ZigBee Coordinator Converter
RS-232/RS-485 to ZigBee converter that acts as the ZigBee Coordinator for personal area wireless networks, with AES-128 encryption and DIN-rail mounting.
- Converts RS-232 or RS-485 serial traffic to a ZigBee network in the 2.4 GHz ISM band
- Acts as ZigBee Coordinator and manages up to 255 ZigBee routers
- Compliant with IEEE 802.15.4 and ZigBee Pro (ZigBee 2007)
- AES-128 encryption for wireless communication with adjustable RF output power up to 10 dBm EIRP
- Unicast and broadcast transmission options, with source identification for non-addressed device data
- Windows GUI configuration software and Topology Utility for network monitoring
2 285,47 kr per stk.
| 1–9 stk. | 2 285,47 kr | |
|---|---|---|
| 10–30 stk. | 2 212,75 kr | −3 % |
| 31+ stk. | 2 171,20 kr | −5 % |
Produktinformasjon "ZT-2550 RS-232/RS-485 to ZigBee Coordinator Converter"

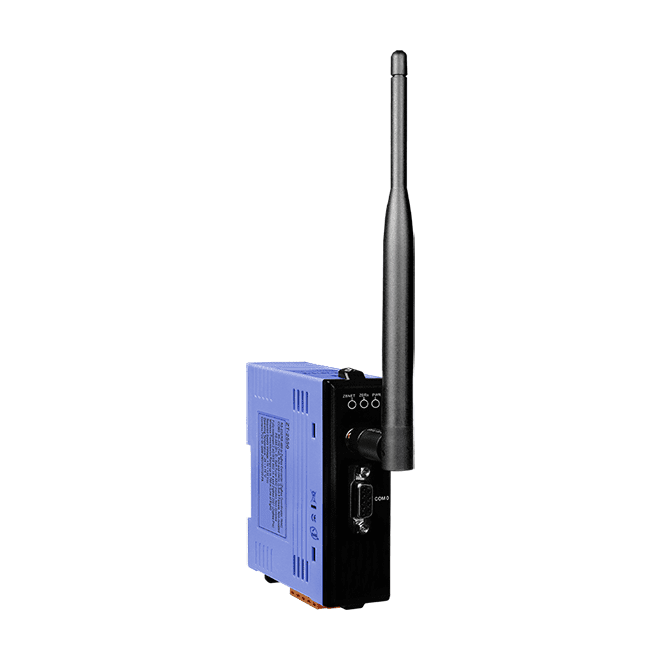

ZT-2550 CR is a compact wireless converter that takes an RS-232 or RS-485 serial link onto an IEEE 802.15.4 ZigBee network. It operates in the 2.4 GHz ISM band and is designed to take the ZigBee Coordinator role, which initialises the network and manages routing.
Engineers would choose this unit to bring serial devices into a ZigBee network without running cable between them. The coordinator manages up to 255 ZigBee routers, and the module can receive or bypass data from parent and child nodes. Unicast and broadcast transmission are both supported, with source identification for non-addressed device data.
- Adjustable RF output power up to 10 dBm EIRP
- Supports the Topology Utility for network monitoring and improvement
- Configured through a Windows GUI utility, including ZigBee parameters such as the PAN ID
- Plastic DIN-rail housing, 10 to 30 VDC input, -25 ~ +75 °C operating range
Applications
- Wireless extension of RS-232 and RS-485 serial devices
- Personal area ZigBee networks requiring a coordinator and router nodes
- Remote serial data collection over a ZigBee mesh
| Product type: | ZigBee Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | ZigBee |
| Ports: | 2 |
| Isolation: | Non-isolated (RS-485) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 8-bit microprocessor |
| LED Indicators | |
| Status | 1 x Power 1 x Net 1 x RxD |
| RF | |
| Channels | 16 |
| Transmission Power | Up to 10 dBm EIRP |
| ZigBee | |
| Antenna | 5 dBi Omni-Directional antenna |
| Max. Slaves | 255 |
| Transmission Distance (LoS) | 300 meters |
| COM Ports | |
| Ports | 1 x RS-232(TxD, RxD and GND; DB9 Female) 1 x RS-485(DATA+, DATA-; Internal ASIC Self-tuner; Non-isolated) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 30 x 87 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
