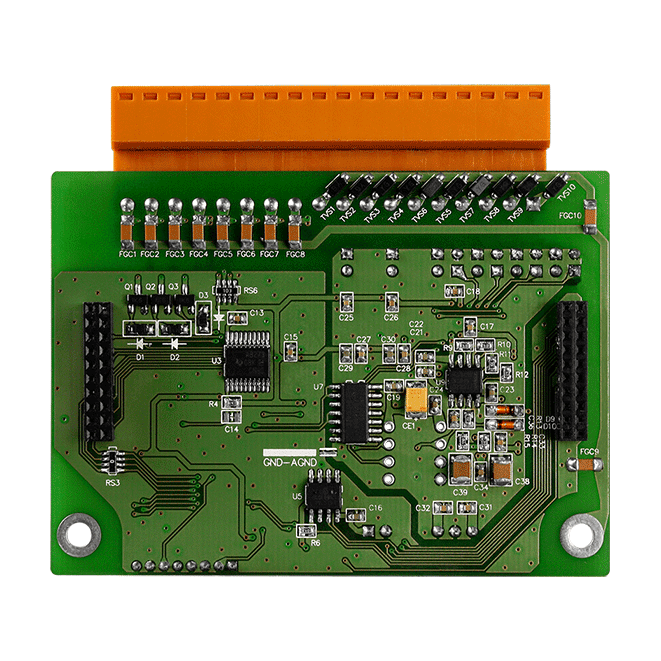

XW310C XW-Board Expansion, 4/8-ch Current Input, 2-ch Current Output
XW-board expansion for uPAC-5000, LP-51xx and WP-51xx PACs, adding 4/8-channel current input, 2-channel current output, and 3 digital input and 3 digital output channels.
- 4 differential or 8 single-ended current input channels, 0 ~ 20 mA, 12-bit resolution
- 4 KHz sampling rate on the analogue input channels
- 2-channel current output, 0 ~ 20 mA, 12-bit resolution
- 3-channel dry contact digital input with 30 VDC overvoltage protection
- 3-channel NPN sink open collector digital output, 10 ~ 40 VDC load voltage
- 200 mA per channel at 25 °C with 1.4 A overload protection
1 755,66 kr per stk.
| 1–9 stk. | 1 755,66 kr | |
|---|---|---|
| 10–30 stk. | 1 703,71 kr | −3 % |
| 31+ stk. | 1 662,16 kr | −5 % |
Produktinformasjon "XW310C XW-Board Expansion, 4/8-ch Current Input, 2-ch Current Output"
XW310C CR is an XW-board expansion module that adds analogue and digital I/O to uPAC-5000, LP-51xx and WP-51xx controllers. Each PAC accepts one XW-board, so this card is the way to extend a single controller's I/O with current measurement, current output and switching signals.
The analogue input section offers 4 differential or 8 single-ended channels with a 0 ~ 20 mA range, 12-bit resolution and a 4 KHz sampling rate. The two analogue outputs also cover 0 ~ 20 mA with 12-bit resolution. All analogue channels are non-isolated.
Three digital inputs are dry contact type, switched by closing to GND. Three digital outputs are NPN sink open collector, driving loads from +10 VDC to 40 VDC at up to 200 mA per channel at 25 °C, with overload protection rated at 1.4 A. The board draws 0.4 W and measures 66 mm x 82 mm x 13 mm.
Applications
- Extending I/O on uPAC-5000, LP-51xx and WP-51xx controllers
- Current signal acquisition and 0 ~ 20 mA analogue output
- Switching loads with NPN sink digital outputs
| Product type: | Expansion board |
|---|---|
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Analog Input | |
|---|---|
| Channels | 4/8 |
| Range | 0 ~ 20 mA |
| Resolution | 12-bit |
| Sampling Rate | 4 KHz |
| Input Impedance | 125 ohm |
| Overvoltage Protection | ±30 VDC |
| Isolation | non-isolated |
| Analog Output | |
| Channels | 2 |
| Range | 0 ~ 20 mA |
| Resolution | 12-bit |
| Voltage Output Capability | 20 mA |
| Isolation | non-isolated |
| Digital Input | |
| Channels | 3 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | 30 VDC |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Power | |
| Consumption | 0.4 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
