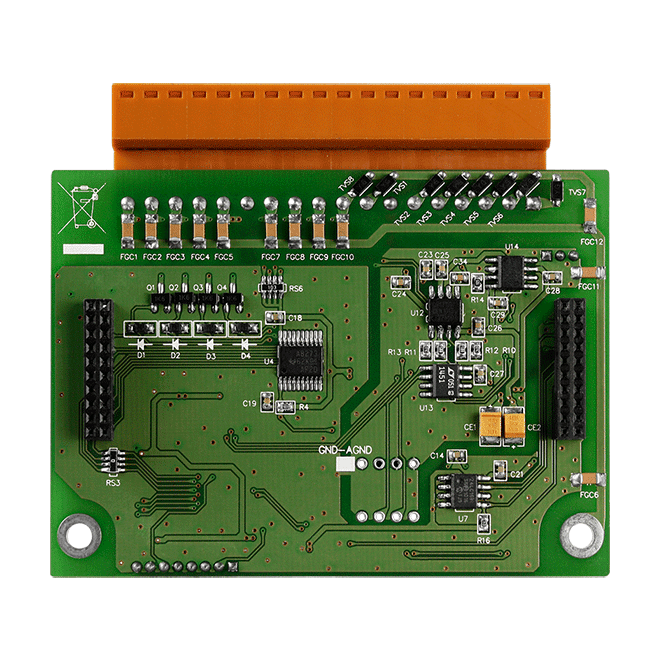

XW304 Expansion Board, 6-ch Voltage Input, 1-ch Voltage Output, 4-ch DI/DO
XW-board expansion for uPAC-5000, LP-51xx and WP-51xx PACs, adding 6 voltage inputs, 1 voltage output, 4 dry-contact digital inputs and 4 NPN sink digital outputs.
- 6 non-isolated voltage inputs with ±5 V and 0 ~ +5 V ranges, 12-bit resolution, 4 KHz sampling rate
- 1 non-isolated voltage output, ±5 V range, 12-bit resolution, 20 mA output capability
- 4 dry-contact digital inputs, overvoltage protected to 30 VDC
- 4 open-collector digital outputs, NPN sink, 10 ~ 40 VDC load voltage
- 200 mA per digital output channel at 25 °C, overload protection 1.4 A
- Plugs into uPAC-5000, LP-51xx and WP-51xx series controllers, one XW-board per PAC
1 714,10 kr per stk.
| 1–9 stk. | 1 714,10 kr | |
|---|---|---|
| 10–30 stk. | 1 662,16 kr | −3 % |
| 31+ stk. | 1 630,99 kr | −5 % |
Produktinformasjon "XW304 Expansion Board, 6-ch Voltage Input, 1-ch Voltage Output, 4-ch DI/DO"
The XW304 CR is an XW-board that adds analogue and digital I/O to the uPAC-5000, LP-51xx and WP-51xx series controllers. It combines six voltage inputs, one voltage output, four dry-contact digital inputs and four open-collector digital outputs on one board, which suits controllers that need a few extra signals.
Each host controller accepts one XW-board. The analogue inputs support ±5 V and 0 ~ +5 V ranges with 12-bit resolution and a 4 kHz sampling rate. The single analogue output covers ±5 V and is rated for 20 mA.
The digital outputs are NPN sink type with a 10 ~ 40 VDC load voltage, rated at 200 mA per channel at 25 °C and protected against overload up to 1.4 A. The board operates from -25 ~ +75 °C and carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Adding analogue and digital I/O to uPAC-5000, LP-51xx and WP-51xx controllers
| Product type: | Expansion board |
|---|---|
| Interface: | XW-board |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Analog Input | |
|---|---|
| Channels | 6 |
| Range | ±5 V, 0 ~ +5 V |
| Resolution | 12-bit |
| Sampling Rate | 4 KHz |
| Input Impedance | 1 M Ohm |
| Overvoltage Protection | ± 30 VDC |
| Isolation | non-isolated |
| Analog Output | |
| Channels | 1 |
| Range | ± 5 V |
| Resolution | 12-bit |
| Voltage Output Capability | 20 mA |
| Isolation | non-isolated |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | 30 VDC |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Power | |
| Consumption | 0.3 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
