XW111i 16-ch Isolated Sink DO XW-board for uPAC-5000, LP-51xx, WP-51xx
16-channel isolated sink-type (NPN) digital output expansion board for uPAC-5000, LP-51xx and WP-51xx controllers, with open-collector outputs rated for 10 ~ 50 VDC loads.
- 16 isolated digital output channels
- Sink-type (NPN) open-collector outputs
- Load voltage +10 VDC to +50 VDC
- 350 mA per channel at 25 °C with 1.4 A overload protection
- 3750 VDC isolation
- Operating temperature -25 ~ +75 °C
924,58 kr per stk.
| 1–9 stk. | 924,58 kr | |
|---|---|---|
| 10–30 stk. | 893,41 kr | −3 % |
| 31+ stk. | 872,63 kr | −6 % |
Produktinformasjon "XW111i 16-ch Isolated Sink DO XW-board for uPAC-5000, LP-51xx, WP-51xx"

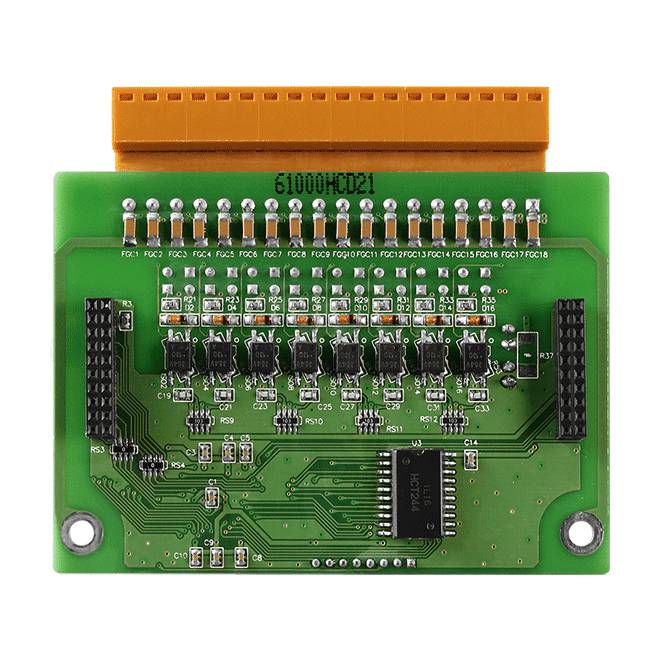

The XW111i CR adds 16 isolated digital outputs to a compatible PAC. It is an XW-board for the uPAC-5000, LP-51xx and WP-51xx series, so the controller's I/O can be extended without a separate remote module.
Output design: each channel is an open-collector, sink-type (NPN) output. Loads from +10 VDC to +50 VDC can be switched, with up to 350 mA per channel at 25 °C and 1.4 A overload protection, and the outputs are isolated to 3750 VDC.
Installation note: one PAC accepts only one XW-board, so plan the I/O count of each controller accordingly. The unit draws 0.2 W and is rated for an operating range of -25 ~ +75 °C.
Applications
- Switching DC loads from a uPAC-5000, LP-51xx or WP-51xx controller
- Adding isolated digital outputs to an existing PAC I/O configuration
| Product type: | Expansion board |
|---|---|
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ +50 VDC |
| Load Current | 350 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Isolation | 3750 VDC |
| Power | |
| Consumption | 0.2 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
