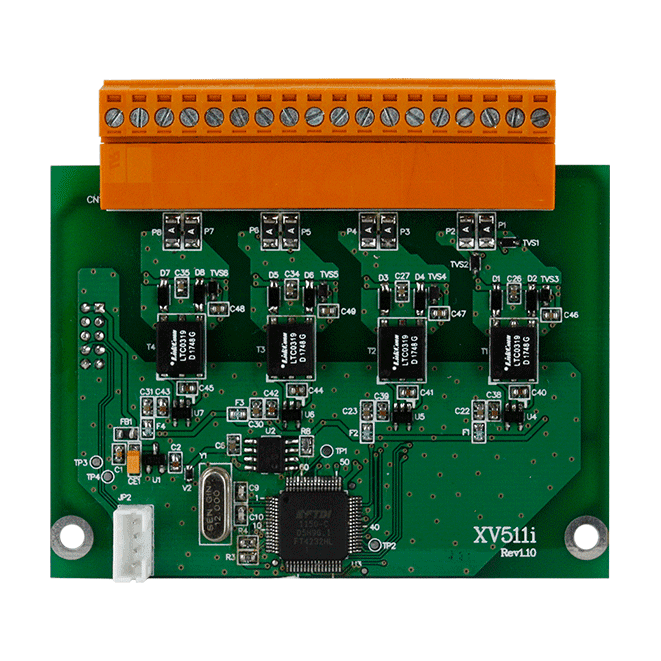

XV511i 4-Channel Isolated RS-485 Expansion Board, up to 921600 bps
Four isolated RS-485 ports for adding serial communication to UA-2241M, WP-2241M-CE7 and LP-2241M controllers, with baud rates up to 921600 bps.
- Four isolated RS-485 ports for expanding serial connectivity
- Maximum baud rate of 921600 bps per the source specification
- 4 kV ESD protection on the isolated RS-485 ports
- Designed for the UA-2241M, WP-2241M-CE7 and LP-2241M controllers
- Low power consumption of 0.74 W
- Compact board size of 66 mm x 82 mm x 14 mm
1 610,22 kr per stk.
| 1–9 stk. | 1 610,22 kr | |
|---|---|---|
| 10–30 stk. | 1 558,28 kr | −3 % |
| 31+ stk. | 1 527,11 kr | −5 % |
Produktinformasjon "XV511i 4-Channel Isolated RS-485 Expansion Board, up to 921600 bps"
The XV511i CR is a 4-channel RS-485 expansion board that adds isolated serial ports to the UA-2241M, WP-2241M-CE7 and LP-2241M controllers. It is useful where a controller needs more RS-485 connections than its onboard interfaces provide.
Each port is electrically isolated and protected against 4 kV ESD, which helps keep the serial bus robust in electrically noisy installations. Ports run at up to 921600 bps, so the board suits fast serial links as well as slower field devices.
The board draws 0.74 W and measures 66 mm x 82 mm x 14 mm (W x L x H). It is rated for an operating range of -25 ~ +75 °C, with storage from -30 ~ +80 °C and 10 ~ 90% RH non-condensing humidity. CE, UKCA, RoHS and WEEE certifications are listed.
Applications
- Adding RS-485 serial channels to UA-2241M, WP-2241M-CE7 and LP-2241M controllers
- Connecting multiple RS-485 field devices to a single controller
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-485 |
| Ports: | 4 |
| Isolation: | Isolated |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| COM Ports | |
|---|---|
| Ports | 4 x RS-485 |
| Baud Rate | 921600 bps Max. |
| Power | |
| Consumption | 0.74 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 14 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
