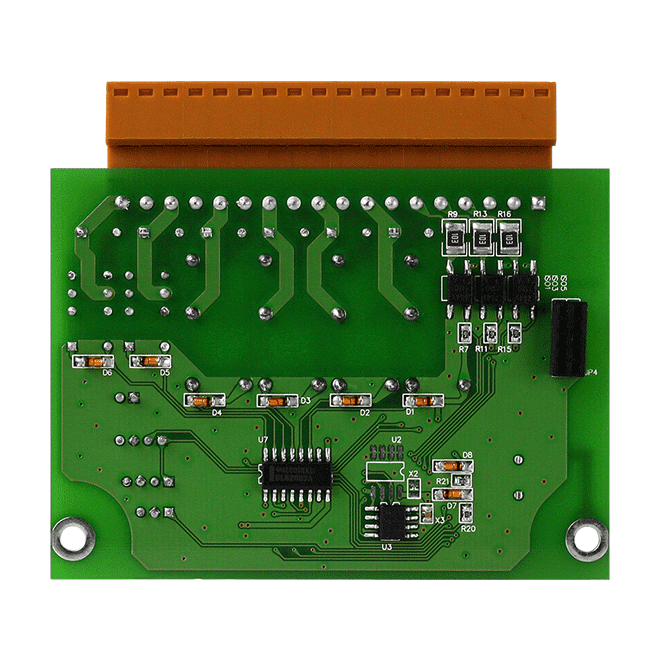

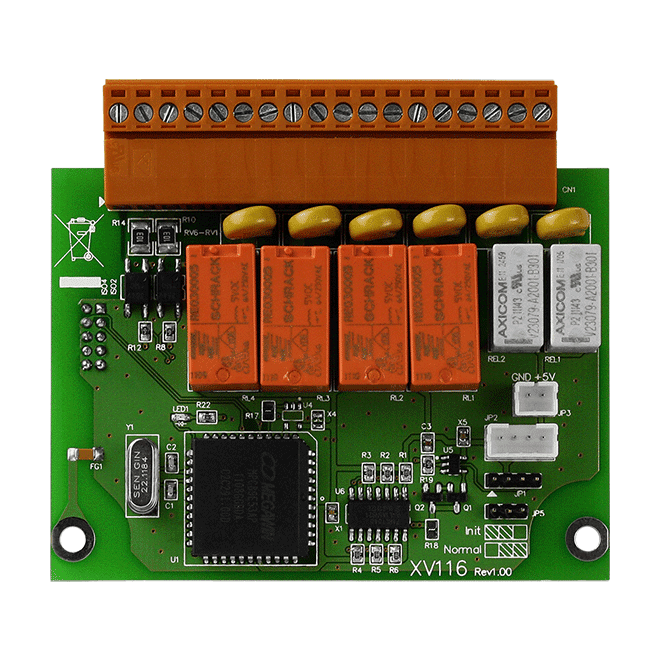

XV116 XV-Board Expansion, 5-ch Isolated DI and 6-ch Relay Output
The XV116 CR is an expansion board with 5 isolated wet-contact digital inputs and 6 Form A relay outputs, with Modbus/RTU over RS-232 and 3750 VDC intra-module isolation.
- 5 digital input channels with sink- or source-type wiring selected by wire connections
- 6 Form A relay outputs: 2 signal relays and 4 power relays
- Digital inputs can be used as 32-bit counters
- Configurable power-on value settings for outputs
- 70 VDC overvoltage protection on digital inputs
- 3750 VDC intra-module isolation and ±4 kV contact ESD protection
1 101,18 kr per stk.
| 1–9 stk. | 1 101,18 kr | |
|---|---|---|
| 10–30 stk. | 1 059,63 kr | −4 % |
| 31+ stk. | 1 038,85 kr | −6 % |
Produktinformasjon "XV116 XV-Board Expansion, 5-ch Isolated DI and 6-ch Relay Output"
The XV116 CR is a compact expansion board that combines five digital inputs with six Form A relay outputs. Each input can be wired as sink- or source-type, so it suits both NPN and PNP field devices without a different board variant.
Every digital input can also operate as a 32-bit counter, which makes the board useful for counting pulses and events. The outputs can be configured to take defined states at power-on. Two relays are rated for signal switching and four for power switching, giving a mix of contact ratings on a single board.
For noise-sensitive installations, the board provides 3750 VDC intra-module isolation and ±4 kV contact ESD protection on each terminal, with 70 VDC overvoltage protection on the digital inputs. It communicates via an RS-232 port using Modbus/RTU at 115200 bps, and is powered from a 5 VDC terminal block at up to 1.2 W.
Applications
- Industrial environments where noise immunity of digital I/O is important
- Pulse and event counting from wet-contact inputs
- Switching of signal and power loads through relay outputs
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital inputs: | 5 |
| Relay outputs: | 6 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Input/Counter | |
| Channels | 5 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
| Channels | Signal Relay: 2 (Channel 0,1) Power Relay: 4 (Channel 2 ~ 5) |
| Type | Signal Relay (Form A) Power Relay (Form A) |
| Contact Rating | Signal Relay: 2 A @ 30 VDC, 0.24 A @ 220 VDC, 0.25 A @ 250 VAC Power Relay: 6 A @ 35 VDC, 6 A @ 240 VAC |
| Operate Time | Signal Relay: 3 ms (typical) Power Relay: 5 ms (typical) |
| Release Time | Signal Relay: 4 ms (typical) Power Relay: 1 ms (typical) |
| Electrical Endurance | Signal Relay: 2 x 10^5 ops Power Relay: 1 x 10^5 ops. |
| Mechanical Endurance | Signal Relay: 10^8 ops. Power Relay: 30 x 10^6 ops. |
| Power on Value | Yes |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 1.2 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
