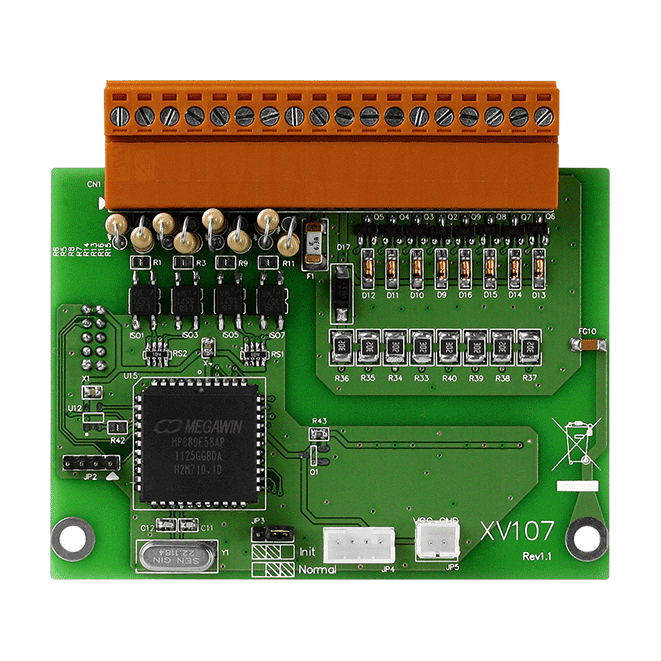

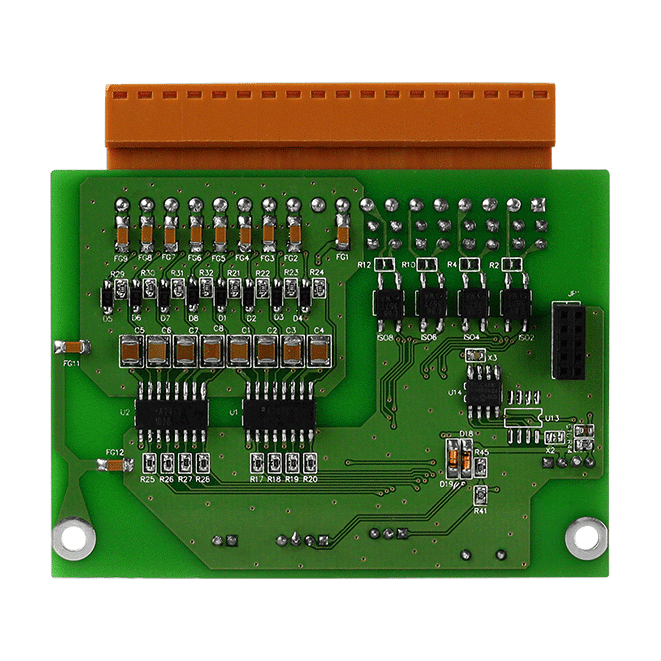

XV107 Expansion Board, 8-ch Isolated DI (Source) and 8-ch DO (Sink)
XV107 CR expansion board with 8 photocoupler-isolated wet-contact inputs usable as 32-bit counters and 8 NPN sink outputs rated 3.5 ~ 50 VDC, with RS-232 Modbus/RTU.
- 8 isolated source-type (wet contact) digital inputs with 70 VDC overvoltage protection
- All input channels can be used as 32-bit counters, with a 10 ms minimum pulse width
- 8 isolated sink-type NPN digital outputs, 3.5 ~ 50 VDC, 700 mA per channel
- Overload and short-circuit protection on digital outputs
- Programmable power-on output values
- 3750 VDC intra-module isolation and ±4 kV ESD protection on each terminal
727,20 kr per stk.
| 1–9 stk. | 727,20 kr | |
|---|---|---|
| 10–30 stk. | 706,42 kr | −3 % |
| 31+ stk. | 685,64 kr | −6 % |
Produktinformasjon "XV107 Expansion Board, 8-ch Isolated DI (Source) and 8-ch DO (Sink)"
XV107 CR is an 8-channel digital input and 8-channel digital output expansion board for PAC I/O applications. Each channel is photocoupler-isolated. The inputs are source-type wet contacts, while the outputs are sink-type NPN drivers that switch loads from 3.5 to 50 VDC at up to 700 mA per channel.
All eight input channels can be configured as 32-bit counters, which suits pulse and event counting. Output power-on values are programmable, so outputs can be set to a defined state at start-up. The outputs are protected against overload and short circuit, and the inputs tolerate up to 70 VDC.
The board communicates through a single RS-232 port using Modbus/RTU at 115200 bps, 8 data bits, no parity and 1 stop bit. The XV107A offers the same specification with the input and output types reversed, so choose the XV107 CR when source-type inputs and sink-type outputs are required.
Applications
- Pulse and event counting on wet-contact inputs
- Switching DC loads from 3.5 to 50 VDC with sink-type outputs
- Expansion of digital I/O on PAC I/O systems
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | +3.5 ~ 50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Digital Output | |
| Channels | 8 |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | 3.5 ~ 50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 0.15 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
