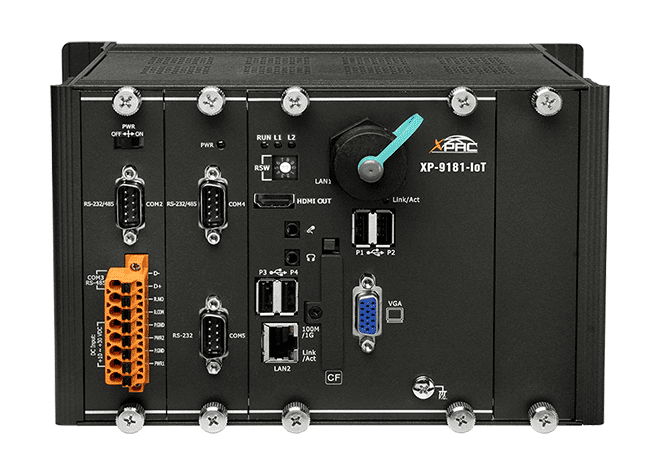

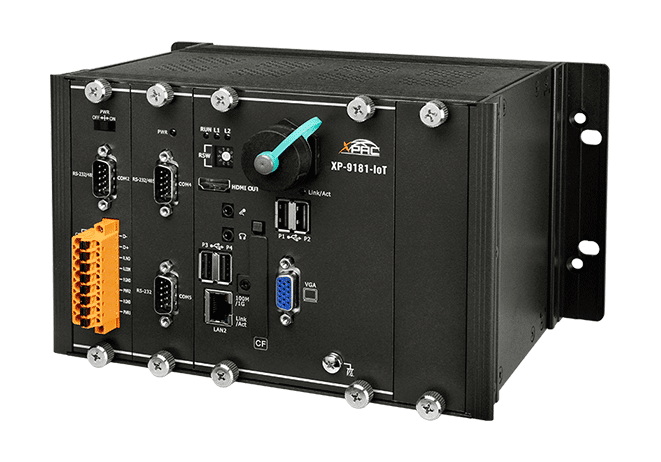

XP-9181-IoT Windows 10 IoT PAC, 1-Slot with Intel E3845 CPU
1-slot Windows 10 IoT Enterprise LTSC PAC that combines computing, I/O and operator interface in one unit, with a quad-core E3845 CPU, dual Gigabit Ethernet and one I-9K/I-97K local I/O slot.
- Windows 10 IoT Enterprise LTSC (64-bit) operating system
- Intel Atom E3845 1.91 GHz 64-bit quad-core CPU with 4 GB DDR3 SDRAM and 64 GB SSD
- One local I/O slot for I-9K and I-97K series modules, with remote I/O expansion via Ethernet or RS-485
- Dual 10/100/1000M Ethernet ports, VGA and HDMI outputs, and four USB 2.0 ports
- Isolated COM ports: 1 x RS-232, 1 x RS-485 and 2 x RS-232/RS-485, each 3000 VDC isolated
- Redundant power inputs, +10 ~ 30 VDC (1 kV isolated), with dual watchdog timer
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "XP-9181-IoT Windows 10 IoT PAC, 1-Slot with Intel E3845 CPU"
The XP-9181-IoT CR is a Windows-based programmable automation controller for engineers who need HMI, data acquisition and control in a single compact unit. It runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3845 1.91 GHz quad-core processor with 4 GB DDR3 SDRAM and a 64 GB SSD, so standard Windows software and development tools can be used on the controller.
Connectivity covers VGA and HDMI display outputs, two 10/100/1000M Ethernet ports, four USB 2.0 ports and a set of isolated serial ports: one RS-232, one RS-485 and two switchable RS-232/RS-485, each rated at 3000 VDC isolation. A single local slot accepts I-9K or I-97K series I/O modules, and remote I/O expansion is possible through Ethernet or RS-485 I/O modules.
The unit is designed for DIN-rail or wall mounting and has a +10 ~ 30 VDC power input with redundant power inputs for added resilience. Its dual watchdog timer and operating range of -25 ~ +60 °C suit demanding control cabinet installations. The CR ordering code is the RoHS-compliant standard version.
Applications
- HMI and operator interface
- Data acquisition
- Machine and process control
- Integrated PAC for control cabinets
| Product type: | Windows PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet, 4 USB, 4 COM |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC, redundant |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 1 x 64GB SSD, 1 x CF card slot |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 1 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 18.5 W |
| Mechanical | |
| Dimensions (mm) | 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
