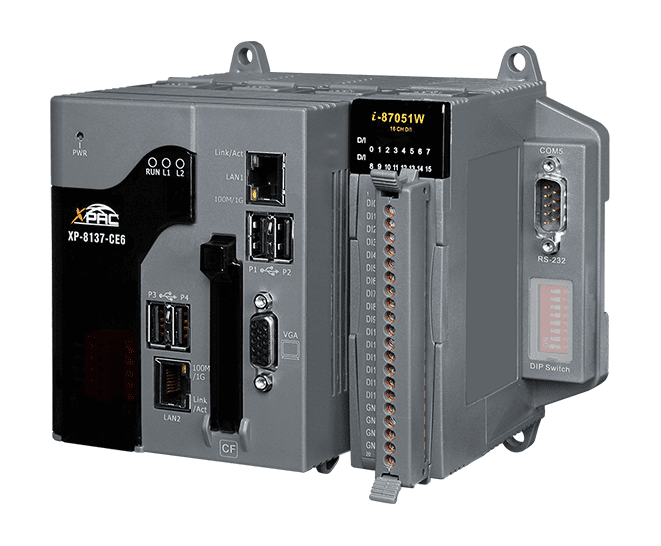

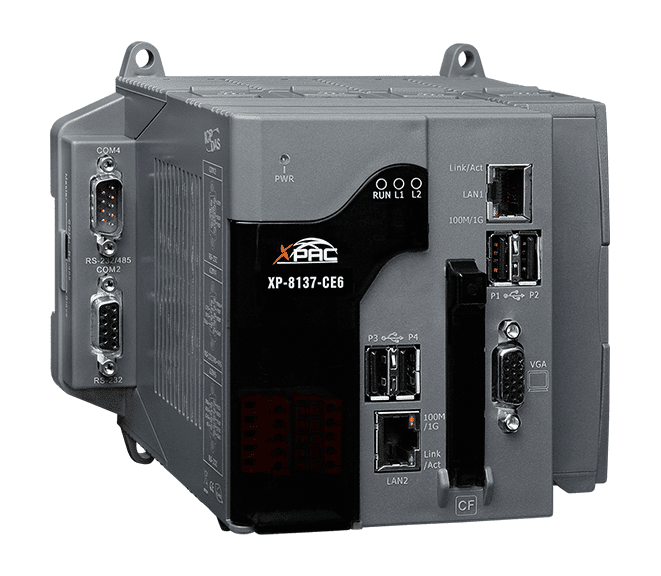

XP-8137-CE6 1-Slot ISaGRAF PAC with x86 Dual-Core CPU and WinCE 6.0
1-slot ISaGRAF PAC with a 1.0 GHz dual-core x86 CPU running Windows CE 6.0, IEC 61131-3 soft logic, eLogger HMI and redundant power inputs.
- x86 dual-core CPU at 1.0 GHz with 2 GB DDR3 SDRAM and 32 GB Flash
- Windows CE 6.0 platform with hard real-time capability
- Embedded ISaGRAF Ver.3 SoftLogic supporting IEC 61131-3 programming
- eLogger HMI runs control logic and HMI in the same PAC
- One slot for I-8K or I-87K series I/O modules, with motion control via I-8094F/8094/8092F
- Modbus RTU/TCP master and slave support
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "XP-8137-CE6 1-Slot ISaGRAF PAC with x86 Dual-Core CPU and WinCE 6.0"
The XP-8137-CE6 is a programmable automation controller that combines IEC 61131-3 control logic with a Windows CE 6.0 platform. Its 1.0 GHz dual-core x86 CPU, 2 GB DDR3 SDRAM and 32 GB Flash give engineers room for control, data handling and visualisation on one device.
Control programs are written in Embedded ISaGRAF Ver.3 using the standard IEC 61131-3 languages. The eLogger HMI runs alongside the control logic in the same unit, so operator screens do not need a separate panel PC. The single slot accepts I-8K or I-87K series I/O modules, and the controller supports Modbus RTU/TCP master and slave communication.
Connectivity includes VGA output, two 10/100/1000 Base-TX Ethernet ports, four RS-232/RS-485 serial ports and four USB 2.0 ports. Redundant power inputs at +10 ~ 30 VDC and a dual watchdog timer support dependable installations, and the unit mounts on DIN-rail or wall.
Applications
- Machine and process control programmed to IEC 61131-3
- Combined control and HMI on a single PAC
- Motion control using I-8094F/8094/8092F modules
- Distributed I/O expansion with I-8K and I-87K modules
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Modbus RTU/TCP |
| Ports: | 4 COM, 2 Ethernet, 4 USB |
| Isolation: | 1 kV power, 3000 VDC RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Protocol | • NET ID • Redundancy Solution • eLogger HMI • Modbus TCP/IP Master • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O • FRnet I/O • Web HMI • Send Email • Ebus • SMS • UDP Server & UDP Client • TCP Client • GPRS/SMS • SQL Client • CAN/CANopen • CANopen Master • HART Solutions • FTP Client |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit | |
| CPU | x86 CPU, 1.0 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, 8 GB CF card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 1 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 16.6 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 169 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
