WP-9428-CE7 Win-GRAF PAC with Cortex-A8 CPU and WinCE 7.0, 4-Slot
4-slot Win-GRAF PAC with a 1.0 GHz Cortex-A8 CPU and Windows CE 7.0, running IEC 61131-3 soft PLC logic and HMI applications with I-9K and I-97K I/O expansion.
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM, 256 MB Flash and 4 GB SD card (up to 32 GB)
- Windows CE 7.0 operating system with embedded Win-GRAF SoftLogic (IEC 61131-3)
- Four expansion slots for High Profile I-9K and I-97K I/O modules
- Modbus RTU/TCP master and slave, Modbus ASCII master, DCON and OPC UA server
- Two 10/100/1000 Base-TX RJ-45 Ethernet ports with auto MDI/MDI-X
- Mixed serial ports: 1 x RS-232, 1 x RS-485 and 2 x RS-232/485 (3000 VDC isolated), plus 2 x USB 2.0
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WP-9428-CE7 Win-GRAF PAC with Cortex-A8 CPU and WinCE 7.0, 4-Slot"

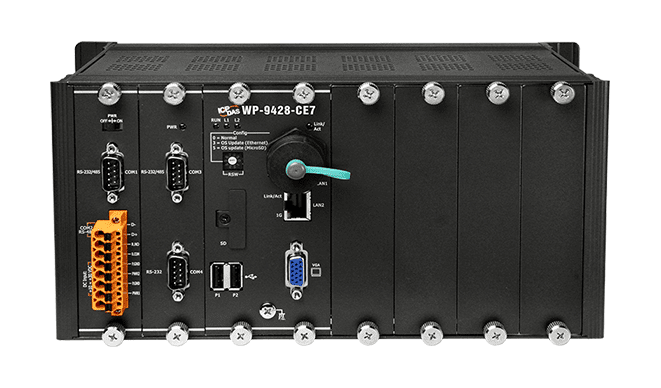

The WP-9428-CE7 CR is a 4-slot programmable automation controller built around a 1.0 GHz Cortex-A8 processor and Windows CE 7.0. Control logic is developed in the embedded Win-GRAF SoftLogic environment following IEC 61131-3, while VB .NET or C# HMI and data management applications can exchange data with that logic.
Four slots accept High Profile I-9K (parallel-type) and I-97K (serial-type) I/O modules. Connectivity includes two RJ-45 10/100/1000 Base-TX Ethernet ports, one RS-232 and one RS-485 port, two RS-232/485 ports with 3000 VDC isolation, and two USB 2.0 ports. Modbus RTU/TCP master and slave and an OPC UA server are supported, and a VGA output drives 800 x 600 or 1024 x 768 displays.
Power is supplied at +10 ~ 30 VDC with redundant power inputs and 1 kV isolation, with typical consumption of 16.8 W (0.7 A @ 24 VDC). The metal enclosure is specified for -25 ~ +75°C operation and mounts on DIN-rail or wall. This code is the 4-slot model; the 2-slot WP-9228-CE7 CR and 8-slot WP-9828-CE7 CR share the same platform.
Applications
- Logic control applications developed in IEC 61131-3 Win-GRAF
- HMI and data management applications on a Windows CE platform
- Data logging and file access with I/O expansion
- Serial and Ethernet device communication over Modbus and OPC UA
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Modbus RTU/TCP, OPC UA |
| Ports: | 2 x Ethernet, 4 x serial, 2 x USB |
| Isolation: | 1 kV (power), 3000 VDC (serial) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB SD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | WP-9228-CE7: 2 WP-9428-CE7: 4 WP-9828-CE7: 8 *Note: For High Profile I-9K and I-97K Modules Only |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485, 2 x RS-232/485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | WP-9228-CE7: 16.6 W (0.69 A @ 24 VDC) WP-9428-CE7: 16.8 W (0.7 A @ 24 VDC) WP-9828-CE7: 18 W (0.75 A @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | WP-9228-CE7: 239 x 133 x 164 (W x L x H) WP-9428-CE7: 300 x 133 x 164 (W x L x H) WP-9828-CE7: 422 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
