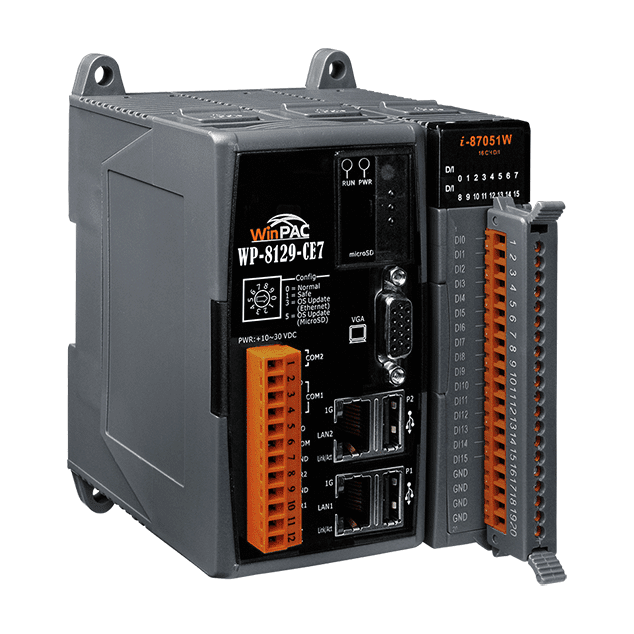

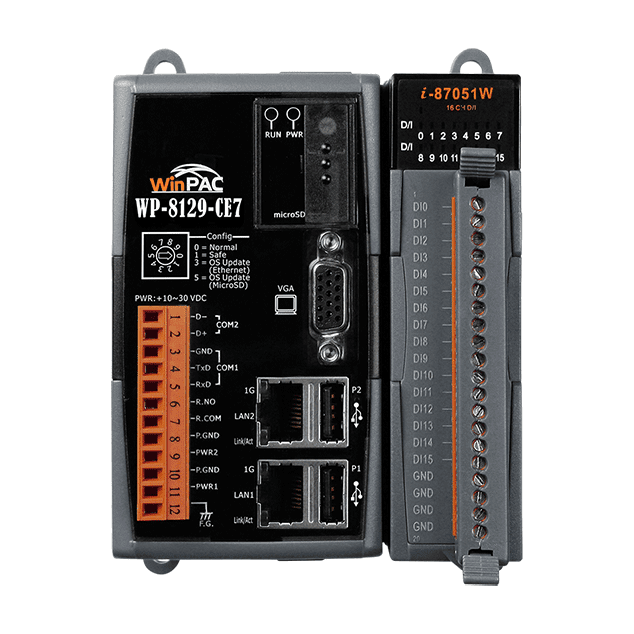

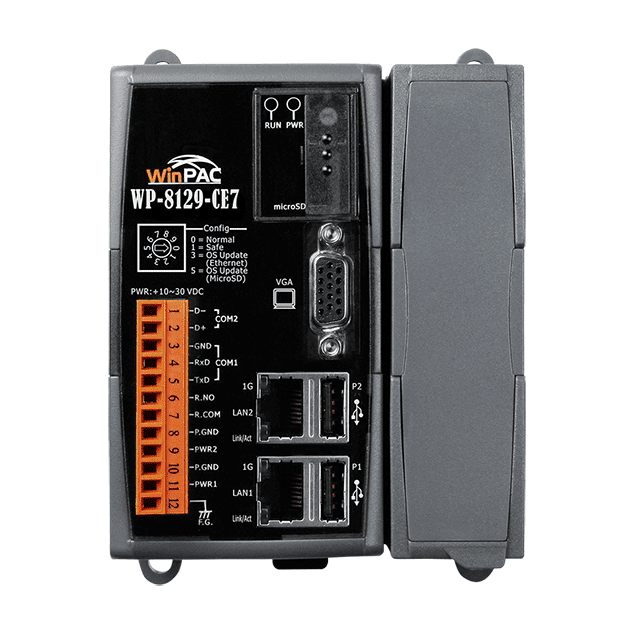

WP-8129-CE7 InduSoft WinPAC 1-Slot Windows CE 7.0 PAC (300 tags)
Windows CE 7.0 WinPAC controller with InduSoft Runtime pre-installed, a 1 GHz Cortex-A8 CPU and one expansion slot for I-8K or I-87K I/O modules.
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 Professional with InduSoft Runtime (300 tags) pre-installed
- One I/O expansion slot for I-8K (parallel-type) or I-87K (serial-type) modules
- Two RJ-45 10/100/1000Base-TX Ethernet ports
- 1 x RS-232 (non-isolated) and 1 x RS-485 (3000 VDC isolated) serial ports
- Redundant power inputs with one power relay (1 A @ 24 VDC) for alarm
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WP-8129-CE7 InduSoft WinPAC 1-Slot Windows CE 7.0 PAC (300 tags)"
WP-8129-CE7 CR is a single-slot WinPAC controller running Windows CE 7.0 Professional, with the InduSoft Runtime (300 tags) already installed. It suits engineers who need an HMI or SCADA front end on a compact DIN-rail or wall-mounted controller.
The unit is built around a 1 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB of Flash, plus a microSD slot for storage expansion. Hard real-time capability and a 64-bit hardware serial number for software protection are included.
Connectivity covers two 10/100/1000Base-TX Ethernet ports, one non-isolated RS-232 port, one RS-485 port with 3000 VDC isolation and two USB connectors. The single expansion slot accepts I-8K (parallel-type) or I-87K (serial-type) I/O modules, and a redundant power input with an alarm relay is provided.
Applications
- HMI (Human Machine Interface) development and operation
- SCADA (Supervisory Control and Data Acquisition) systems
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet |
| Isolation: | RS-485 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 1 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 7.3 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 95 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
