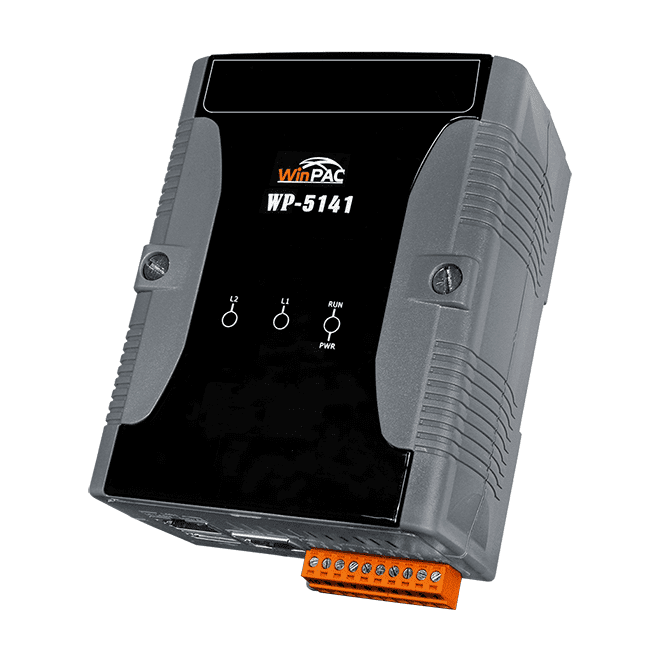

WP-5141-TC WinCE PAC, PXA270 520 MHz, Windows CE 5.0, 1 I/O Expansion Bus
Windows CE 5.0 programmable automation controller with a PXA270 520 MHz CPU, VGA output, dual Ethernet and an I/O expansion bus for one XW-board. Traditional Chinese version.
- PXA270 CPU at 520 MHz running Windows CE 5.0 for PC-based control software
- Hard real-time capability with dual watchdog timers
- 128 MB SDRAM, 64 MB Flash and 16 KB EEPROM, with optional microSD up to 32 GB
- Two 10/100 Ethernet ports with auto-negotiation and auto MDI/MDI-X
- Serial RS-232/RS-485 ports, RS-485 isolated at 2500 VDC
- Built-in VGA port and real-time clock
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WP-5141-TC WinCE PAC, PXA270 520 MHz, Windows CE 5.0, 1 I/O Expansion Bus"
WP-5141-TC is a Programmable Automation Controller that combines a PXA270 processor running at 520 MHz with Windows CE 5.0. It suits engineers who want PC-based control software, such as Visual Basic .NET, Visual C# or SCADA packages, running on a DIN-rail controller that is designed for industrial environments.
The unit offers 128 MB SDRAM, 64 MB Flash, 16 KB EEPROM for data retention and optional microSD storage of up to 32 GB. Connectivity includes two 10/100 Ethernet ports, serial RS-232/RS-485 ports with the RS-485 port isolated at 2500 VDC, a USB port, a built-in VGA output and a real-time clock.
Expansion is handled through a single I/O expansion bus that accepts one XW-board. The manufacturer states that more than 10 boards are available for the WinPAC-5000 series. This ordering code is the Traditional Chinese version of the standard WP-5000 unit.
Applications
- PC-based machine and process control
- SCADA-based supervision and control
- Applications requiring deterministic control on a Windows CE platform
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB, VGA |
| Ports: | 2 Ethernet |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 64 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
| LED Indicators | |
| Status | 1 x Power/System, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 (Aluminum) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
