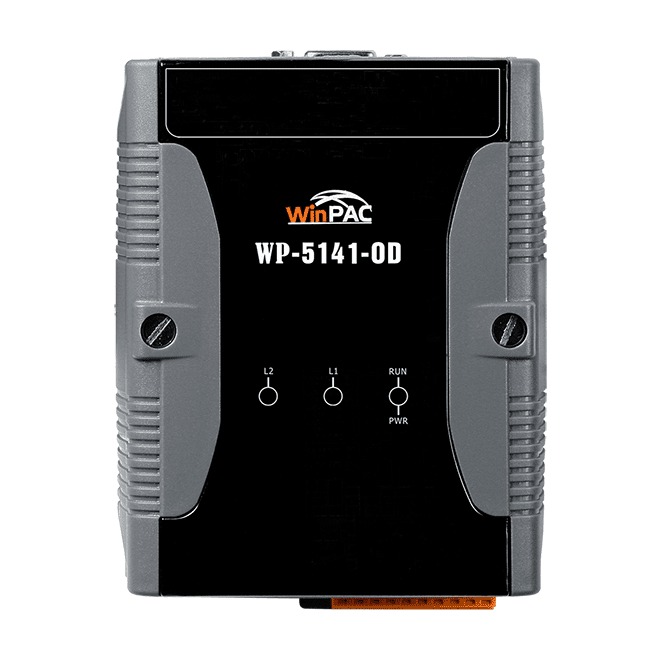

WP-5141-OD-SC WinCE PAC, PXA270 520 MHz, Windows CE 5.0
Windows CE 5.0 PAC with a PXA270 520 MHz CPU, VGA, dual Ethernet, serial ports and an I/O expansion bus, in the Simplified Chinese version for PC-based control and SCADA.
- PXA270 520 MHz CPU running Windows CE 5.0
- 128 MB SDRAM, 64 MB Flash, 16 KB EEPROM and microSD support up to 32 GB
- 2 x 10/100 Ethernet ports, RS-232/485 serial ports, USB host port and VGA output
- I/O expansion bus supporting one XW-board
- Dual watchdog timer, real-time clock and 64-bit hardware serial number
- Microphone-in and earphone-out audio, buzzer and 10-position rotary switch (0 ~ 9)
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WP-5141-OD-SC WinCE PAC, PXA270 520 MHz, Windows CE 5.0"
The WP-5141-OD-SC CR pairs a PXA270 processor running at 520 MHz with Windows CE 5.0, giving engineers a DIN-rail controller that can host PC-based control and supervisory software. Hard real-time capability and deterministic control suit applications where timing matters.
Connectivity includes two 10/100 Ethernet ports, RS-232/485 serial ports, a USB host port and a VGA output for a local display. One XW-board can be fitted to the I/O expansion bus, so the controller can be matched to a specific digital, analogue or timer/counter requirement.
This is the Simplified Chinese version of the WP-5000 standard unit, rated for -25 ~ +75 °C and powered from +10 ~ 30 VDC with redundant inputs. The English and Traditional Chinese variants are separate ordering codes.
Applications
- PC-based control and SCADA front ends
- Machine and process control with one I/O expansion board
- Local operator display through the VGA port
- DIN-rail mounted control cabinets
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB host, VGA |
| Ports: | 2 |
| Isolation: | 1 kV (power), 2500 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 64 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
| LED Indicators | |
| Status | 1 x Power/System, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 (Aluminum) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
