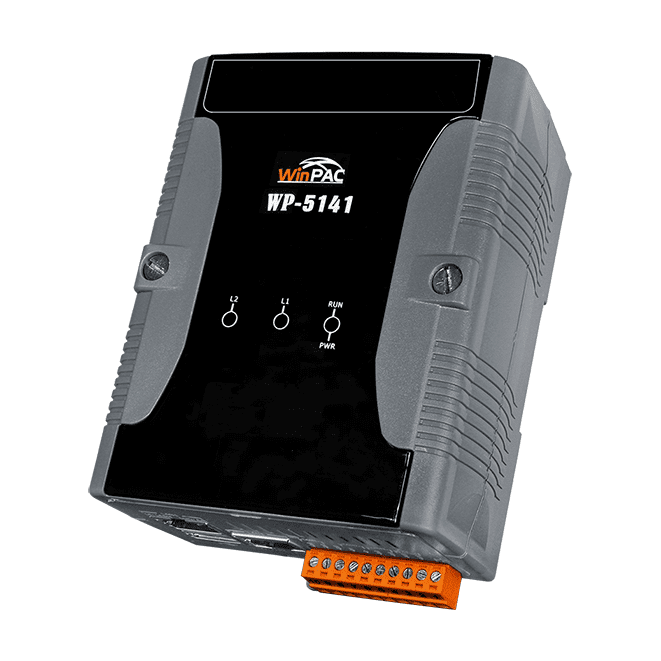

WP-5141-EN PAC, PXA270 520 MHz WinCE 5.0 Controller with 1 I/O Expansion Bus
WP-5141-EN is a WinCE 5.0 programmable automation controller with a PXA270 520 MHz CPU, dual Ethernet, RS-232/485 serial ports, VGA and one I/O expansion bus slot.
- PXA270 520 MHz CPU running Windows CE 5.0 for PC-based control software
- Hard real-time capability with a dual watchdog timer for supervised operation
- 128 MB SDRAM, 64 MB Flash, 16 KB EEPROM for data retention and optional microSD up to 32 GB
- 2 x 10/100 Mbps Ethernet ports with auto MDI/MDI-X
- RS-232 and RS-485 serial ports, with the RS-485 port isolated at 2500 VDC
- 1 x USB 1.1 host and 1 x USB 1.1 client, plus built-in VGA
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "WP-5141-EN PAC, PXA270 520 MHz WinCE 5.0 Controller with 1 I/O Expansion Bus"
The WP-5141-EN is a Windows CE 5.0 programmable automation controller built around a PXA270 520 MHz processor. It suits engineers who want PLC-style deterministic control alongside the flexibility of a PC-class operating system, with 128 MB SDRAM and 64 MB Flash on board for application and data storage.
Connectivity covers two 10/100 Mbps Ethernet ports, RS-232 and RS-485 serial links, USB host and client ports, and a built-in VGA output for local display. A single I/O expansion bus slot lets you add digital, analogue, timer/counter or UART functions using one of the XW-board modules from the WinPAC-5000 range.
Software support includes .NET Compact Framework 3.5, an FTP server, a web server and an embedded SQL server, with SDK libraries for eVC and Visual Studio .NET 2003/2005/2008. The unit is supplied as the multilanguage version, with interface languages including English, German, French, Spanish and Simplified and Traditional Chinese.
Applications
- Machine control and factory automation
- SCADA and HMI systems with local VGA display
- Serial device integration over RS-232/485
- Embedded control applications requiring Windows CE software tools
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB, VGA |
| Ports: | 2 x Ethernet |
| Isolation: | 2500 VDC (RS-485), 1 kV (power) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 64 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
| LED Indicators | |
| Status | 1 x Power/System, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 (Aluminum) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
