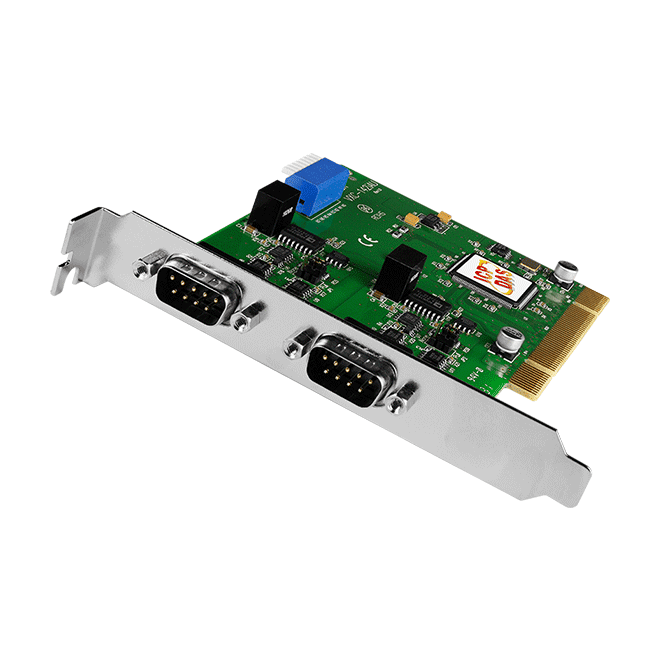

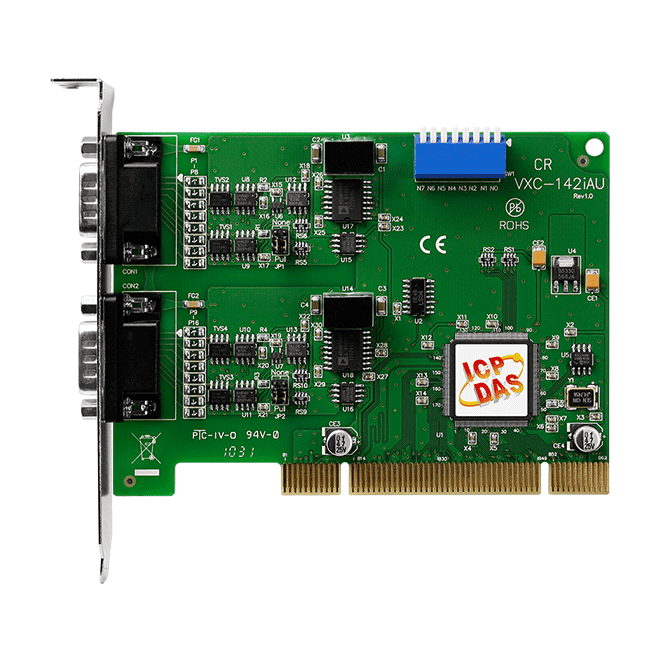

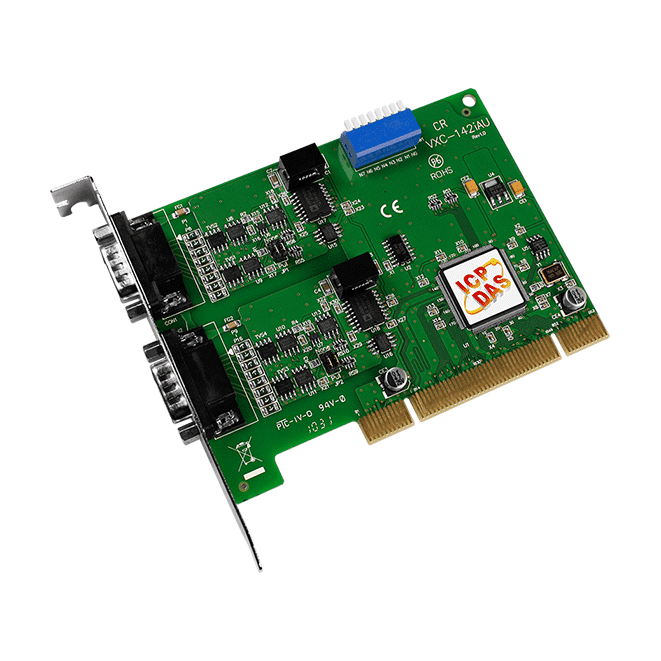

VXC-142iAU PCI Serial Board, 2 Isolated RS-422/485 Ports
Universal PCI serial communication card with two isolated RS-422/RS-485 ports, up to 115200 bps, 2500 VDC isolation and ±4 kV ESD protection (i version).
- Two isolated RS-422/RS-485 ports on a single PCI card
- Per-port choice of RS-485 half-duplex or RS-422 full-duplex operation
- Baud rates from 50 to 115200 bps with 5 to 8 data bits and 1, 1.5 or 2 stop bits
- 2500 VDC isolation and ±4 kV ESD protection on the i version
- 128-byte hardware FIFO per port and up to 128 KB software buffer under Windows
- 8-bit DIP switch COM-Selector for manual COM port numbering
1 610,22 kr per stk.
| 1–9 stk. | 1 610,22 kr | |
|---|---|---|
| 10–30 stk. | 1 558,28 kr | −3 % |
| 31+ stk. | 1 527,11 kr | −5 % |
Produktinformasjon "VXC-142iAU PCI Serial Board, 2 Isolated RS-422/485 Ports"
The VXC-142iAU CR adds two RS-422/RS-485 serial ports to a PC through a universal PCI slot. Each port can be set to RS-485 for half-duplex or RS-422 for full-duplex operation, with speeds up to 115200 bps.
The i version isolates the data lines with on-board photocouplers, keeping the serial channels electrically separated from the host. This helps reduce ground loops and common-mode voltage problems, and the 2500 VDC isolation and ±4 kV ESD protection add robustness where electrical noise and voltage spikes are a concern.
COM port numbers can be fixed with an 8-bit DIP switch or left to the driver, which assigns an available number automatically. Under Windows the driver provides up to 128 KB of software buffer per port, backed by a 128-byte hardware FIFO, which suits large file transfers.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | PCI serial board |
|---|---|
| Interface: | PCI |
| Ports: | 2 x RS-422/485 |
| Isolation: | 2500 VDC |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | 2 x DB9 (Male) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 2 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND / RS-485: Data+, Data-, GND) |
| Baud Rate | 50 - 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Isolation | 2500 VDC |
| Power | |
| Consumption | 480 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 90 x 134 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
