VXC-112AU Universal PCI Serial Board, 2-Port RS-232 Communication Card
Short universal PCI card providing two RS-232 serial ports with 128-byte hardware FIFO per port, COM port selection by DIP switch or driver, and rates up to 115200 bps.
- Two RS-232 ports on a short universal PCI card
- Supports 3.3 V/5 V PCI bus
- Built-in COM-Selector (8-bit DIP switch) or automatic COM number assignment by the driver
- 128-byte hardware FIFO for each port
- Up to 128 KB software buffer per COM port under Windows
- Full-duplex communication at 50 ~ 115200 bps
810,30 kr per stk.
| 1–9 stk. | 810,30 kr | |
|---|---|---|
| 10–30 stk. | 789,53 kr | −3 % |
| 31+ stk. | 768,75 kr | −5 % |
Produktinformasjon "VXC-112AU Universal PCI Serial Board, 2-Port RS-232 Communication Card"

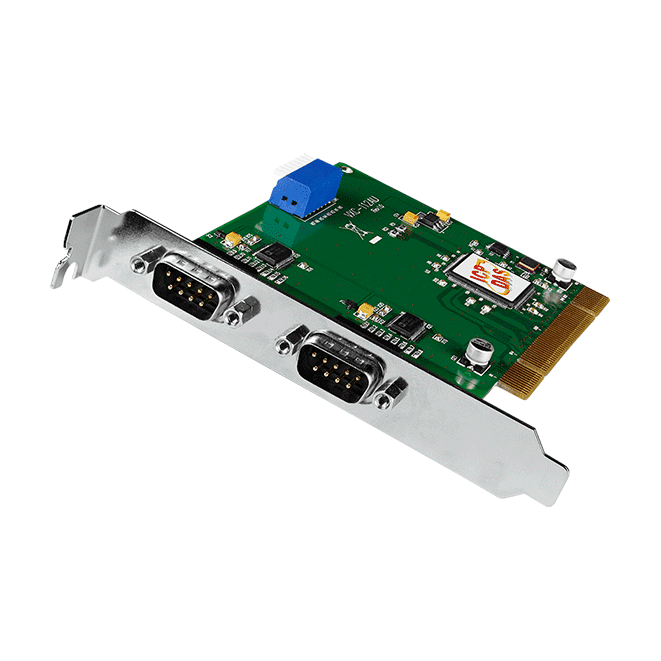

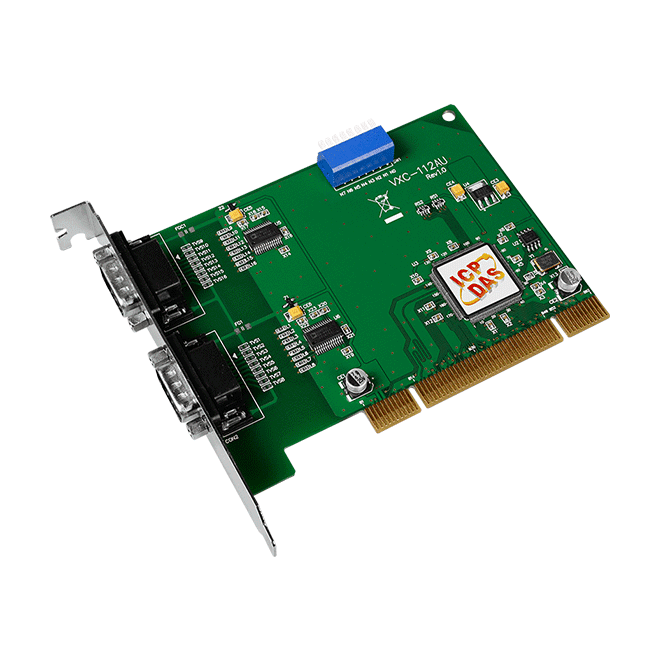

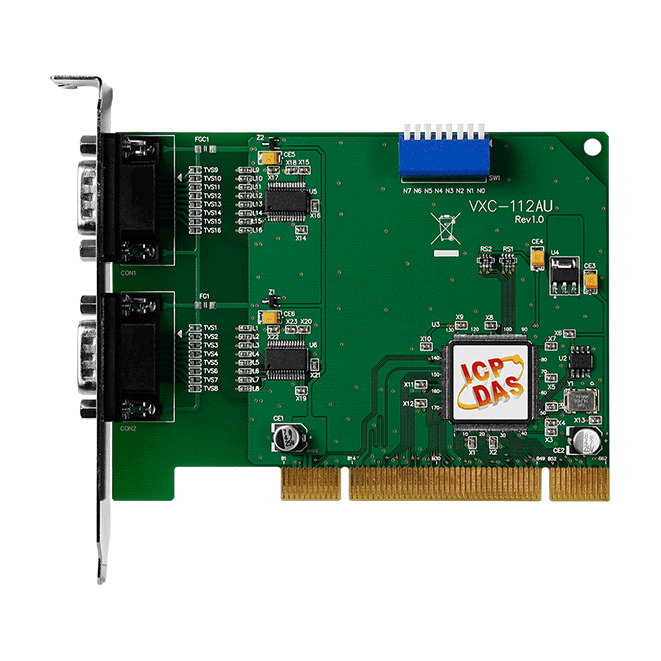

The VXC-112AU CR is a short-card universal PCI board that adds two RS-232 serial ports to a host PC. It suits engineers who need dedicated serial connections for bar code readers, serial printers, intelligent sensors and instrumentation that communicate over RS-232.
Each port has a 128-byte hardware FIFO and supports full-duplex communication at up to 115200 bps. The card works with both 3.3 V and 5 V PCI bus signalling. COM port numbers can be set manually using the built-in 8-bit DIP switch COM-Selector, or the driver can assign an available number automatically. Under Windows, the driver provides up to 128 KB of software buffer per COM port, which helps with large file transfers.
Each port's data lines are standard RS-232 with no isolation on this variant. For isolated and ESD-protected data lines, the i versions of the VXC-112 series, such as the VXC-112iAU, should be considered. The board is rated for 0 ~ +60°C operation and is CE, UKCA, FCC, RoHS and WEEE listed.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | PCI serial board |
|---|---|
| Interface: | RS-232 |
| Ports: | 2 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | 2 x DB9 (Male) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 2 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Power | |
| Consumption | 100 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 90 x 134 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
