VPD-142N-H Touch HMI Device, 4.3-inch TFT, 2 x RS-232/RS-485, RTC

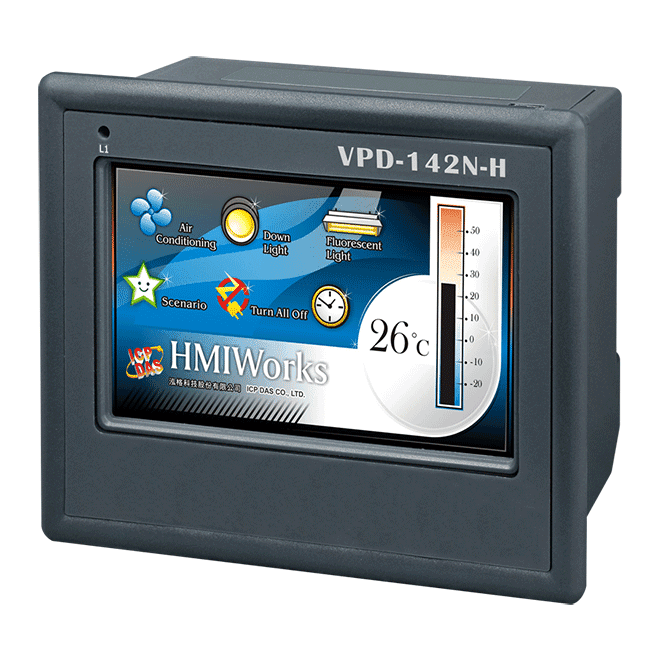

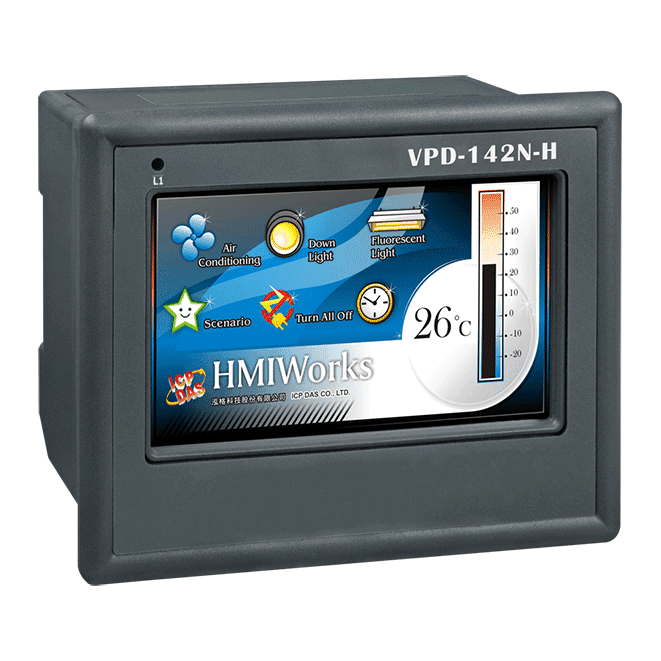

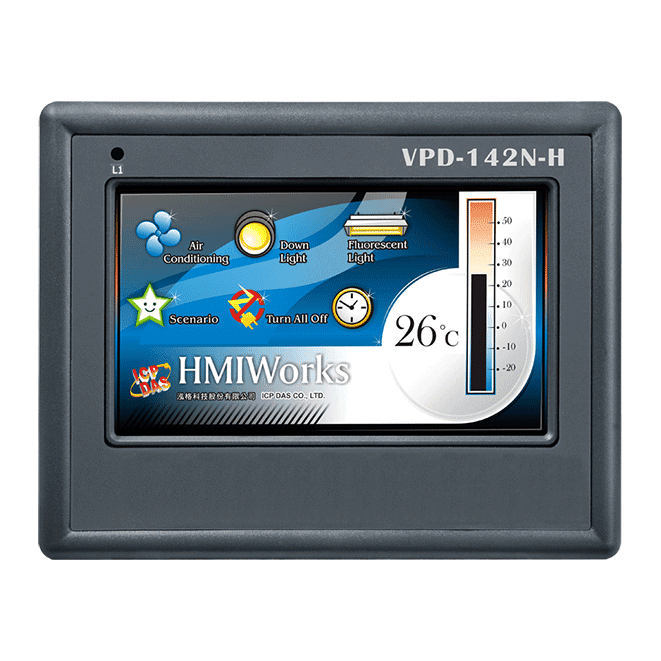

VPD-142N-H is a 4.3-inch colour touch HMI with two RS-232/RS-485 serial ports, a real-time clock and an IP65 front panel, powered from 12 to 48 VDC.
- Two RS-232/RS-485 serial ports, including Self-Tuner
- 4.3-inch TFT touchscreen, 480 x 272 resolution, 65535 colours
- Real-time clock (RTC) on board
- IP65 rated front panel
- Powered from +12 ~ 48 VDC, 2.5 W consumption

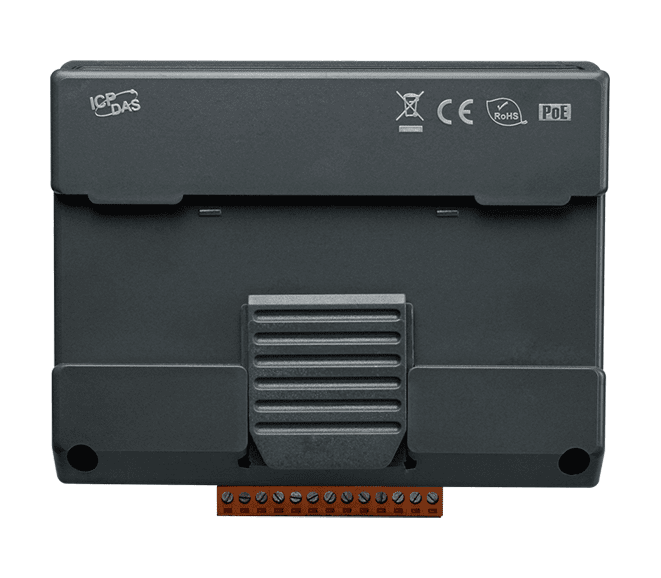

- DIN-rail or panel mounting, 131 mm x 105 mm x 54 mm
2 991,89 kr per stk.
| 1–9 stk. | 2 991,89 kr | |
|---|---|---|
| 10–30 stk. | 2 898,39 kr | −3 % |
| 31+ stk. | 2 846,45 kr | −5 % |
Produktinformasjon "VPD-142N-H Touch HMI Device, 4.3-inch TFT, 2 x RS-232/RS-485, RTC"
VPD-142N-H is a compact 4.3-inch touch HMI from the TouchPAD VPD series, combining a 480 x 272 colour TFT touchscreen with a 32-bit RISC CPU and 16 MB SDRAM/16 MB Flash. It is intended for operator panels that need to be added to existing automation systems or fitted into new installations without a large hardware budget.

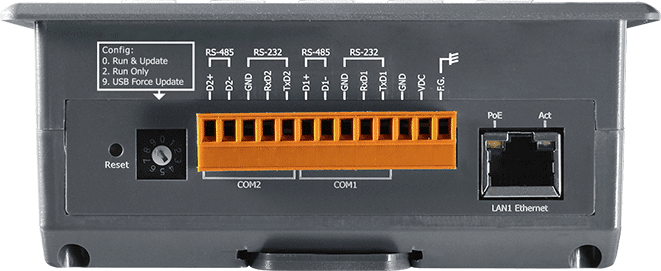

Two serial ports, each switchable between RS-232 and RS-485, allow the unit to exchange data with controllers and remote I/O. A real-time clock, buzzer, rotary switch, reset button and status LED support timestamping and basic local interaction. The front panel is rated IP65, and the unit mounts on a DIN rail or a panel.
Application programs are developed with the free HMIWorks tool, which offers graphical screen design and both Ladder Designer and C language environments. Expansion is possible through XV-Boards, and the USB 1.1 client port is used for firmware updates.
Applications
- Operator panels and machine control interfaces
- Retrofit of existing automation systems
- Monitoring and control of remote I/O over serial links
- Rugged industrial environments with a -20 ~ +50 °C operating range
| Product type: | HMI touch panel |
|---|---|
| Interface: | RS-232/RS-485, USB |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
Spesifikasjoner
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |
| Ports | 2 x RS-232/RS-485 including Self-Tuner |
| USB | |

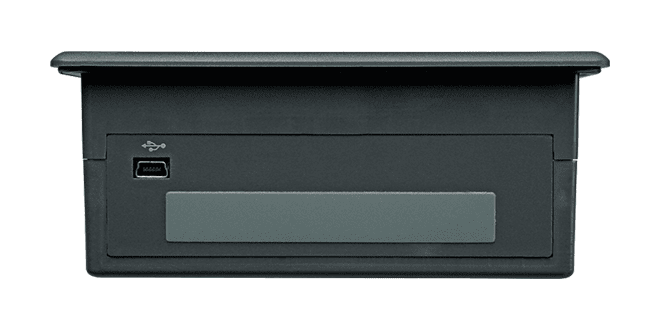

| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 131 mm x 105 mm x 54 mm |
| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
