VPD-142-H 4.3" Touch HMI Device with 2 x RS-232/RS-485 and RTC
4.3" 480 x 272 colour touch HMI with two RS-232/RS-485 serial ports, real time clock, IP65 front panel and free HMIWorks development software.
- 4.3" TFT colour touchscreen, 480 x 272 resolution, 65535 colours, 400 cd/m2 brightness
- Two RS-232/RS-485 serial ports, including Self-Tuner
- Real time clock (RTC) on board
- Rubber keypad with 5 programmable keys, rotary switch and buzzer
- Front panel IP65 ingress protection
- USB 1.1 client port for firmware updates only
3 168,49 kr per stk.
| 1–9 stk. | 3 168,49 kr | |
|---|---|---|
| 10–30 stk. | 3 075,00 kr | −3 % |
| 31+ stk. | 3 012,67 kr | −5 % |
Produktinformasjon "VPD-142-H 4.3" Touch HMI Device with 2 x RS-232/RS-485 and RTC"

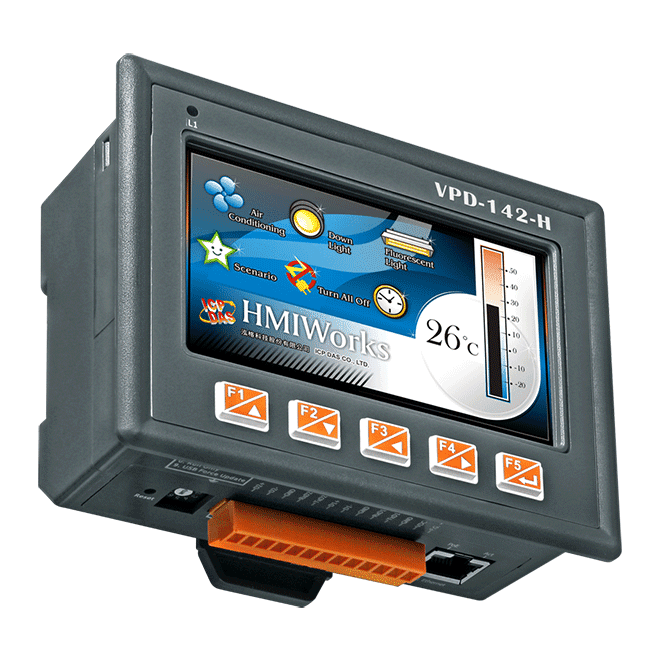

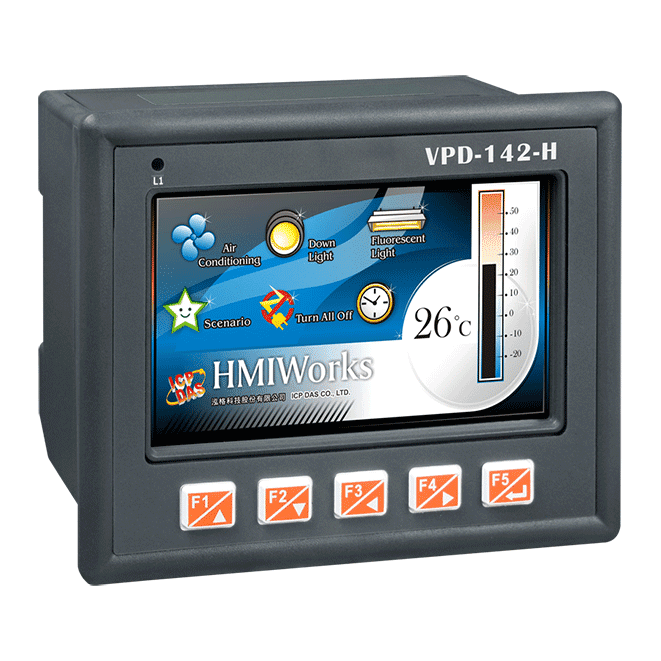

VPD-142-H CR is a 4.3" touch HMI device for operator control and monitoring in industrial automation. It combines a high-resolution colour TFT touchscreen with a rubber keypad, so it suits both touch-driven graphical screens and key-based operation on the machine floor.
Two configurable RS-232/RS-485 serial ports allow the unit to communicate with controllers and remote devices. The real time clock supports time-stamped data handling, and firmware can be updated through the USB 1.1 client port. Ethernet is not fitted on this model; the VPD-143-H and VPD-143N-H variants provide it.
- Designed for DIN-rail or panel mounting, with a front panel rated IP65
- Powered from a terminal block at +12 ~ 48 VDC, consuming 2.5 W
- Operating range -20 ~ +50 °C
Applications
- Operator interfaces for industrial automation systems
- Retrofits of existing machines and control systems
- Local control and monitoring of I/O at remote sides via serial links
| Product type: | HMI |
|---|---|
| Interface: | RS-232/RS-485 |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
| Housing: | IP65 front panel |
Spesifikasjoner
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |

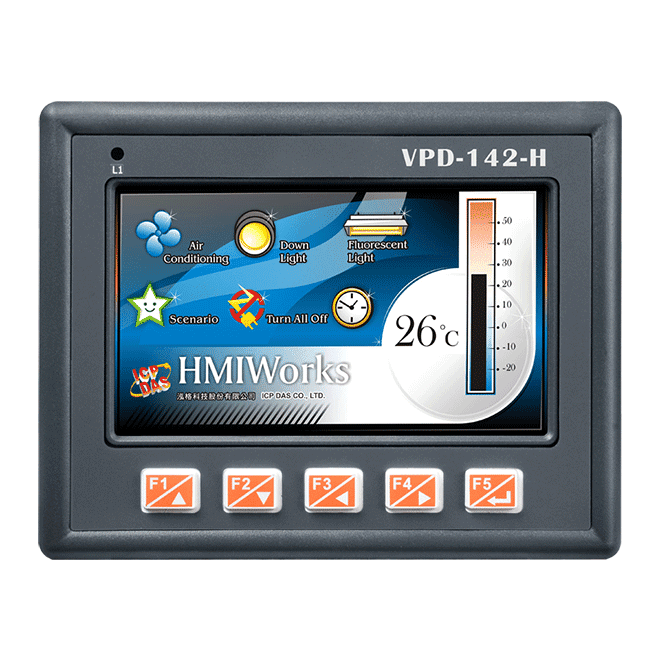

| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Rubber Keypad | 5 keys (Programmable) |
| Reset Button | Yes |
| COM Ports | |

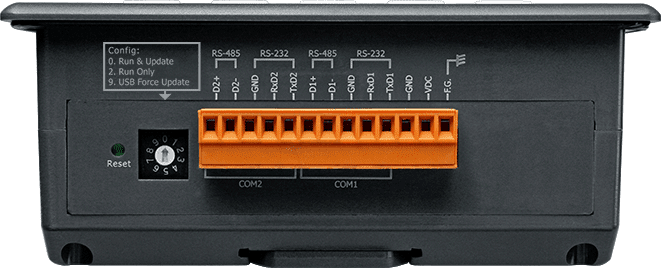

| Ports | 2 x RS-232/RS-485 including Self-Tuner |
| USB | |

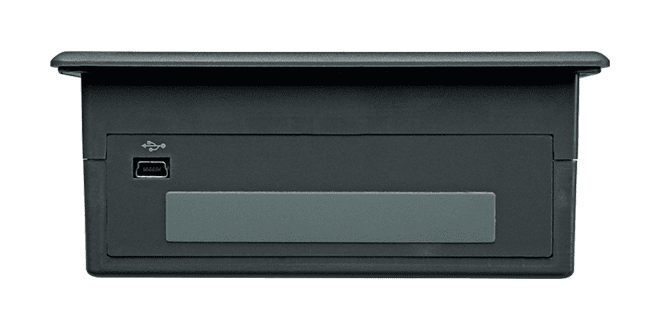

| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 131 mm x 105 mm x 54 mm |

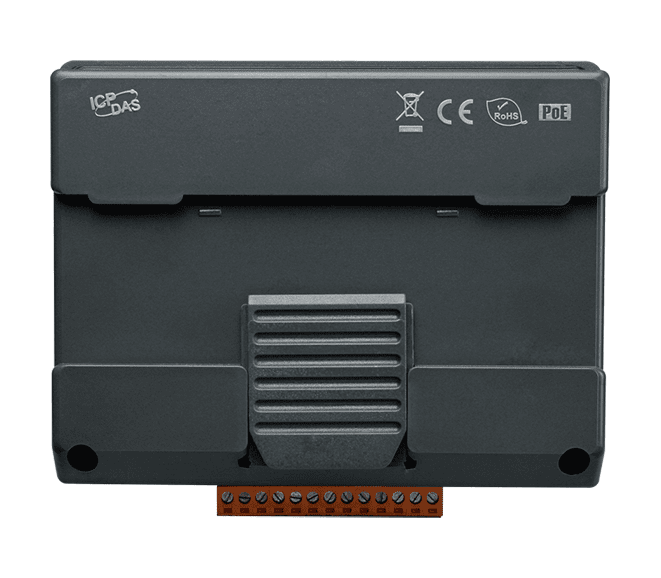

| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
