VP-6239-CE7 15-inch InduSoft ViewPAC, WinCE 7.0 with 3 I/O Slots
15-inch touch ViewPAC combining a 1 GHz Cortex-A8 WinCE 7.0 controller, graphic display and keypad, with three I/O expansion slots and InduSoft Web Studio Runtime pre-installed.
- 1 GHz 32-bit Cortex-A8 CPU running Windows CE .NET 7.0
- 15-inch TFT display, 1027 x 768 resolution, with touch panel
- Three slots for high-profile I/O modules
- IP65-rated front panel with six-key rubber keypad
- Ethernet, RS-232, 2500 VDC isolated RS-485, CAN bus, FRnet and 3 x USB
- InduSoft Web Studio Runtime pre-installed, 300 tags
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-6239-CE7 15-inch InduSoft ViewPAC, WinCE 7.0 with 3 I/O Slots"

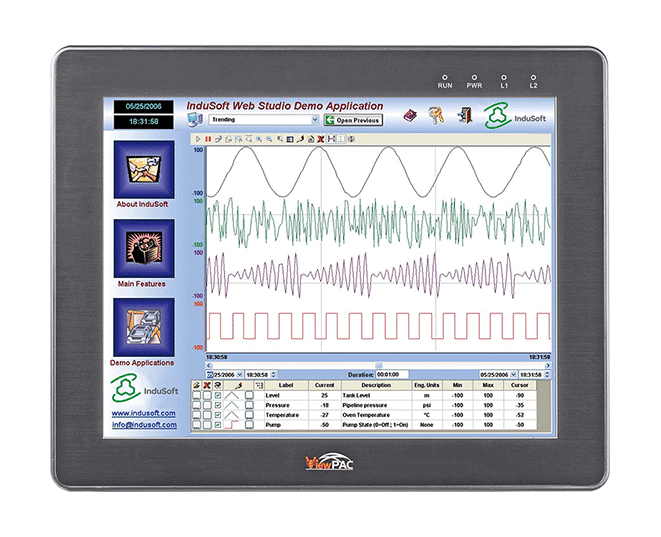

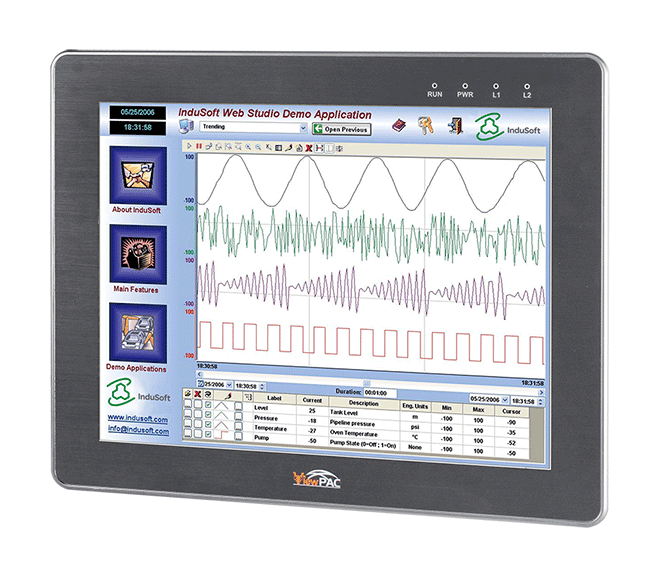

The VP-6239-CE7 CR is a ViewPAC that brings a programmable controller, a 15-inch touch display and a six-key rubber keypad into one enclosure. It runs Windows CE .NET 7.0 on a 32-bit Cortex-A8 processor at 1 GHz, with the InduSoft Web Studio Runtime already installed, so it can serve as both the control logic and the operator interface on the machine.

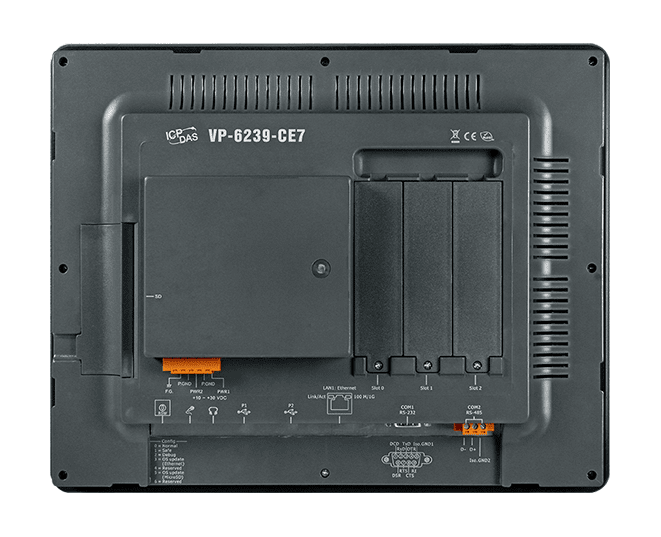

Three slots accept high-profile I/O modules, and the unit offers one 10/100/1000Base-TX Ethernet port, one non-isolated RS-232 port, one 2500 VDC isolated RS-485 port and three USB connectors. The source also lists CAN bus and FRnet among the expansion options. Its IP65-rated front panel, -20 ~ +70 °C operating range and +10 ~ +30 VDC power input suit demanding panel-mounted installations.
This ordering code is the 15-inch, 300-tag InduSoft variant of the series. The 5.7-inch and 10.4-inch members are sold under separate codes. The ViewPAC is aimed at HMI, SCADA and embedded control projects where combining an IPC and a PLC would add cost and space.
Applications
- Human Machine Interface (HMI) panels
- SCADA systems
- Embedded instrumentation and control
| Product type: | ViewPAC |
|---|---|
| Interface: | CAN bus, Ethernet, FRnet, RS-232, RS-485, USB |
| Protocol: | Web HMI |
| Ports: | 1 Ethernet, 2 serial, 3 USB |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -20 ~ +70 °C |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE.NET 7.0 |
| Protocol | Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem. |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (32-bit and 1 GHz) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | SDRAM 128 MB |
| Storage | Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| Watchdog Timer | Yes |
| Display | |
| Size | 15" TFT (Resolution 1027 x 768) |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 x Power and Communication |
| I/O Expansion | |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 3 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 0.65 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 381 x 305 x 139 (W x L x H) |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
