VP-6208-CE7 Win-GRAF ViewPAC, 15-inch HMI with Cortex-A8 1 GHz CPU and WinCE 7
15-inch Win-GRAF SoftLogic ViewPAC combining a WinCE 7 HMI and PAC in one panel-mount unit, with a 1 GHz Cortex-A8 CPU, Gigabit Ethernet and PoE.
- 15-inch 1024 x 768 TFT LCD with 5-wire resistive touch panel
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB flash
- Embedded Win-GRAF SoftLogic (IEC 61131-3) with eLogger HMI and Visual Studio 2008 HMI development support
- Gigabit Ethernet, 2 x USB 2.0, 1 x RS-485 and 2 x RS-232/RS-485 with 2500 VDC isolation
- Modbus RTU/TCP master and slave, Modbus ASCII master, OPC UA server and DCON
- Powered from PoE or +12 ~ 48 VDC input
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-6208-CE7 Win-GRAF ViewPAC, 15-inch HMI with Cortex-A8 1 GHz CPU and WinCE 7"

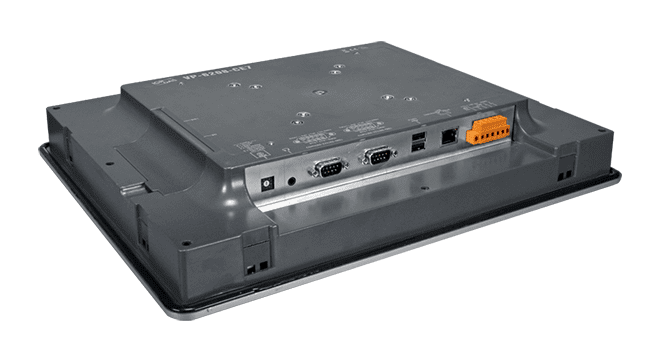

The VP-6208-CE7 CR is the 15-inch member of the Win-GRAF ViewPAC series. It combines a Windows CE 7 computing platform, an operator display and an embedded Win-GRAF SoftLogic controller in a single panel-mount unit, so HMI, data acquisition and control can run in one device rather than across separate PLC and panel PC hardware.
The 1024 x 768 TFT display has a 5-wire resistive touch panel and sits behind a NEMA 4/IP65 rated front panel. The unit uses a fanless design rated for -10 ~ +60°C operation. Logic can be written in IEC 61131-3 languages with Win-GRAF, while the HMI can be built with the bundled eLogger tool or with Visual Studio 2008 (VB .NET, C#), and both can exchange data.
For connectivity, the unit provides a Gigabit Ethernet port, two USB 2.0 ports and three isolated serial ports (one RS-485 and two RS-232/RS-485). It supports Modbus RTU/TCP, OPC UA and DCON, and it can be powered from PoE or a +12 ~ 48 VDC supply. The ordering description identifies this variant as RoHS.
Applications
- Operator panels combining HMI, data acquisition and control in one PAC
- Machine and process control where a touch display is needed at the equipment
- Data logging and file access with SQL Compact Edition 3.5 and FTP/web services
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0 |
| Protocol: | DCON, Modbus RTU, Modbus TCP, OPC UA |
| Ports: | 1 Ethernet, 2 USB, 3 serial |
| PoE: | Yes |
| Isolation: | 2500 VDC (COM ports) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic, NEMA 4/IP65 front |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocol • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | LCD |
| Size | 15" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 500 : 1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 (2500 VDC Isolated) 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC (1 kV Isolated ) |
| Consumption | 16.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 63 (W x L x H) |
| Panel Cut-out (mm) | 362 x 286, ±1 (W x H) |
| Installation | Panel mounting, VESA wall mounting (75x75, 100x100) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 4.7 Kg |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
