VP-4208-CE7 10.4" Win-GRAF ViewPAC, Cortex-A8 1 GHz with WinCE 7 and PoE
10.4-inch Win-GRAF SoftLogic ViewPAC combining HMI, data acquisition and control in one panel-mount unit, with a Cortex-A8 1 GHz CPU, Windows CE 7 and PoE.
- 10.4-inch 800 x 600 TFT LCD with 5-wire resistive touch panel
- Cortex-A8 1.0 GHz CPU, 512 MB DDR3 SDRAM and Windows CE 7.0 operating system
- Embedded Win-GRAF SoftLogic programming to IEC 61131-3
- NEMA 4/IP65 rated front panel with fanless design
- Modbus RTU/TCP master and slave, OPC UA server and DCON protocol support
- Gigabit Ethernet with PoE, two USB 2.0 ports and three isolated COM ports
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-4208-CE7 10.4" Win-GRAF ViewPAC, Cortex-A8 1 GHz with WinCE 7 and PoE"

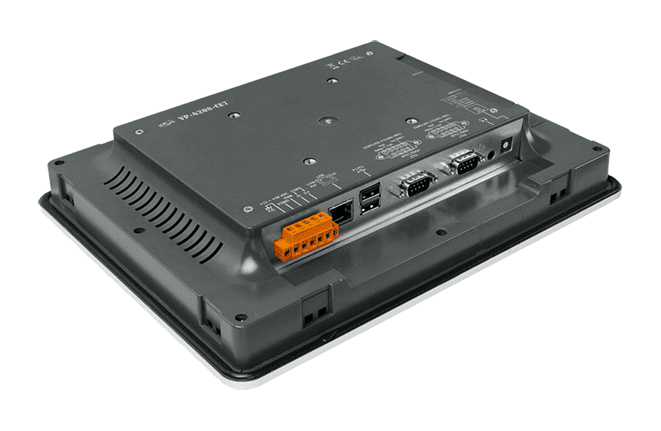

The VP-4208-CE7 CR is a 10.4-inch ViewPAC that runs Win-GRAF SoftLogic control logic and a Windows CE 7 operator interface on one platform. It suits engineers who want the HMI, data acquisition and control handled in a single panel-mounted device rather than separate PC and PLC hardware.
The unit is built around a Cortex-A8 1.0 GHz processor with 512 MB DDR3 SDRAM and an 800 x 600 TFT LCD with a 5-wire resistive touch panel. Logic is programmed to IEC 61131-3 using the embedded Win-GRAF environment, and the HMI can be built with the free eLogger editor using drag-and-drop objects, or developed in Visual Studio 2008 (VB .NET or C#) with data exchange to Win-GRAF applications.
Connectivity includes a 10/100/1000 Base-TX Ethernet port with PoE power, two USB 2.0 ports, one RS-485 and two RS-232/RS-485 ports, all isolated. Modbus RTU/TCP master and slave, OPC UA server and DCON are supported. The front panel is rated NEMA 4/IP65 and the fanless design operates from -10 to +60 °C.
Applications
- Panel-mounted operator interfaces combining HMI, data acquisition and control
- Machine and process control in areas exposed to water spray, humidity and dust
- Data logging and file-based data management at the machine level
| Product type: | ViewPAC |
|---|---|
| Interface: | Gigabit Ethernet, RS-232/RS-485, USB 2.0 |
| Protocol: | DCON, Modbus RTU/TCP, OPC UA |
| Ports: | 1 Ethernet, 2 USB, 3 COM |
| PoE: | Yes |
| Isolation: | 2500 VDC (COM), 1 kV (power) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel |
| Housing: | Plastic, NEMA 4/IP65 front |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocol • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | LCD |
| Size | 10.4" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 500 : 1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 (2500 VDC Isolated) 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC (1 kV Isolated ) |
| Consumption | 13.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 291 x 229 x 54 (W x L x H) |
| Panel Cut-out (mm) | 277 x 215, ± 1 (W x H) |
| Installation | Panel mounting, VESA wall mounting (75x75) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 3.4 Kg |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
