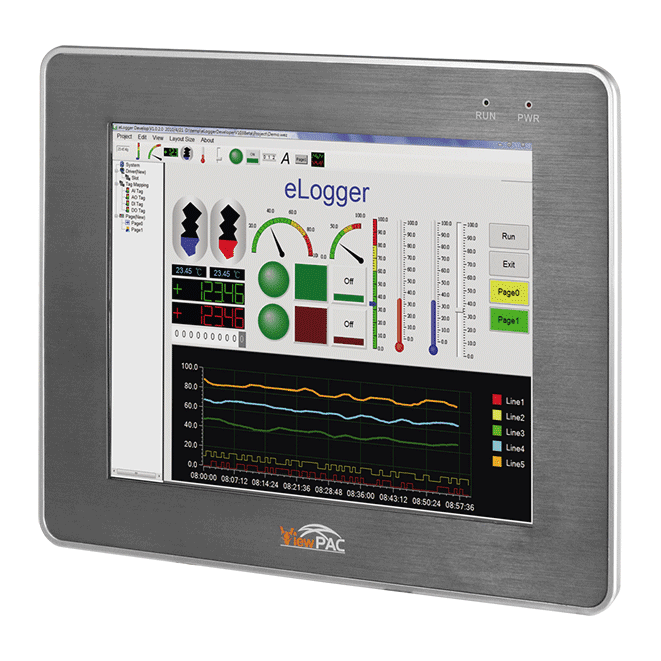

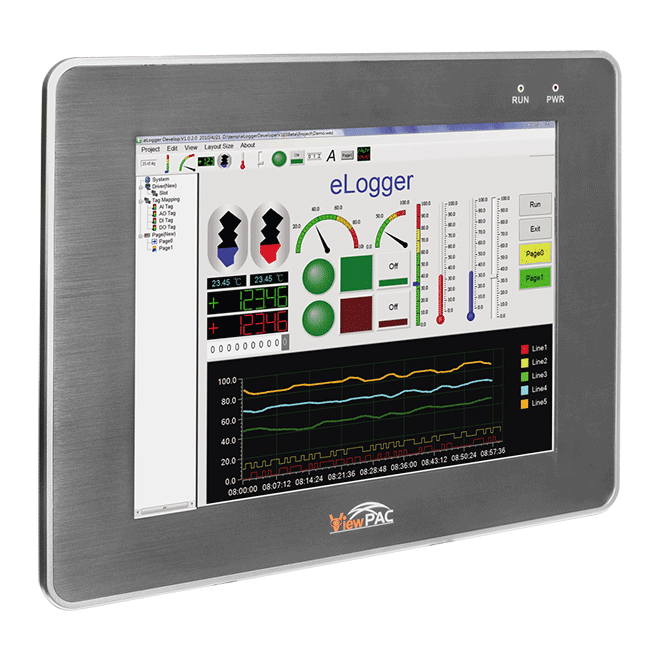

VP-4201-CE7 10.4" WinCE 7.0 ViewPAC with Cortex-A8 CPU and Touch Panel
Panel-mount 10.4-inch touch ViewPAC that combines a 1 GHz Cortex-A8 controller, operator display and serial, Ethernet and USB connectivity under Windows CE 7.0.
- 1.0 GHz Cortex-A8 CPU running Windows CE 7.0 with hard real-time capability
- 10.4-inch 800 x 600 TFT LCD with 5-wire resistive touch panel
- One 10/100/1000BASE-T Ethernet port plus three RS-232/RS-485 serial ports (2500 VDC isolated)
- Two USB 2.0 host ports and earphone-out audio jack
- 512 MB DDR3 SDRAM, 256 MB Flash, 128 KB MRAM and 16 KB EEPROM for data retention
- Built-in real-time clock, dual watchdog timer and 64-bit hardware serial number for software protection
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-4201-CE7 10.4" WinCE 7.0 ViewPAC with Cortex-A8 CPU and Touch Panel"
The VP-4201-CE7 CR is a 10.4-inch ViewPAC that brings control, data acquisition and operator interface into one panel-mounted unit. It runs Windows CE 7.0 on a 1.0 GHz Cortex-A8 processor, with an 800 x 600 TFT LCD and 5-wire resistive touch panel, so an engineer can build the HMI and the control logic on the same device.

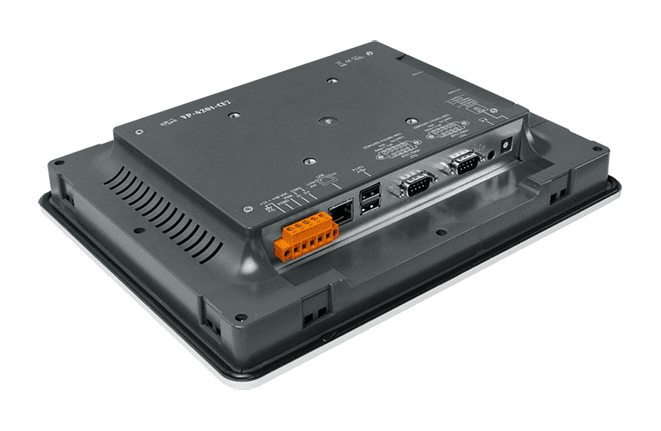

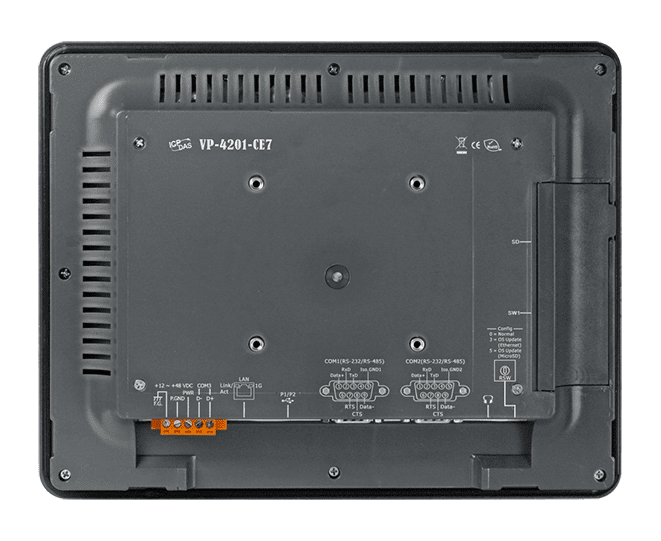

Connectivity includes one 10/100/1000BASE-T Ethernet port, three RS-232/RS-485 serial ports with 2500 VDC isolation, and two USB 2.0 host ports. The unit can be powered from +12 to 48 VDC or over PoE, and I/O can be expanded using Ethernet and RS-485 I/O modules.
The front panel is rated NEMA 4/IP65 and the unit is specified for an operating range of -10 to +60 °C. Memory includes 512 MB DDR3 SDRAM, 256 MB Flash, 128 KB MRAM and 16 KB EEPROM for data retention, plus an SD card slot supporting up to 32 GB. Built-in dual watchdog timers and a real-time clock support reliable unattended operation.
Applications
- Integrated HMI, data acquisition and control in a single panel-mounted PAC
- Operator panels for machine and process control
- Serial and Ethernet I/O expansion with Ethernet and RS-485 I/O modules
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 |
| Ports: | 1 Ethernet, 3 serial, 2 USB |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel |
| Housing: | Plastic, IP65 front panel |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | SD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 10.4" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 (2500 VDC Isolated), 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC (1 kV Isolated ) |
| Consumption | 13.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 291 x 229 x 54 (W x L x H) |
| Panel Cut-out (mm) | 277 x 215, ±1 (W x H) |
| Installation | Panel mounting, VESA Mounting (75 mm x 75 mm) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 1870 g |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
