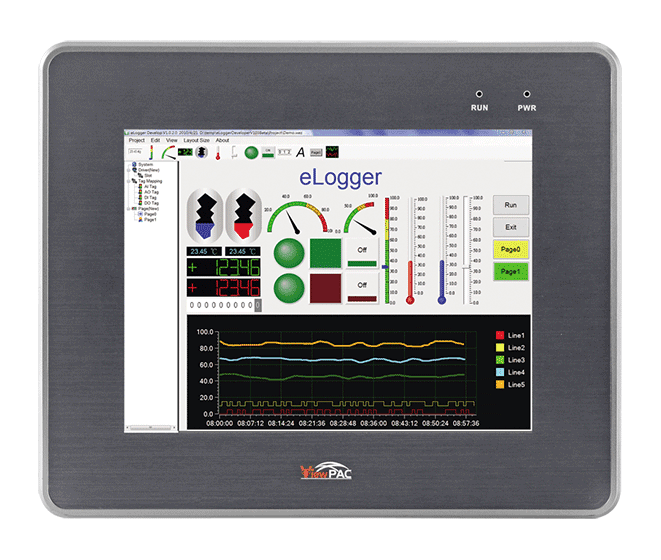

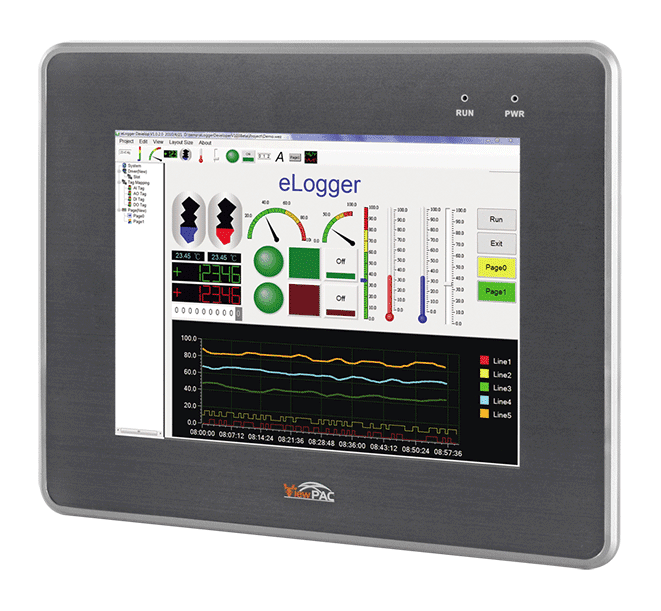

VP-3201-CE7 8.4-inch WinCE 7.0 ViewPAC with Touch Panel
8.4-inch touch-panel ViewPAC combining a 1 GHz Cortex-A8 controller, HMI and I/O expansion on Windows CE 7.0 for panel-mounted control.
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- 8.4-inch 800 x 600 TFT LCD with 5-wire resistive touch panel
- Windows CE 7.0 with hard real-time capability and .Net Compact Framework 3.5 support
- Dual watchdog timer and built-in real-time clock
- 1 x 10/100/1000BASE-T Ethernet, 2 x serial (RS-232/RS-485) and 2 x USB 2.0 host
- Powered from +12 ~ 48 VDC or PoE
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-3201-CE7 8.4-inch WinCE 7.0 ViewPAC with Touch Panel"
The VP-3201-CE7 CR is a Standard ViewPAC that combines computing, I/O and operator interface in a single unit. It suits applications where HMI, data acquisition and control need to sit together in one panel-mounted PAC, with I/O expansion available through ICP DAS Ethernet and RS-485 I/O modules.

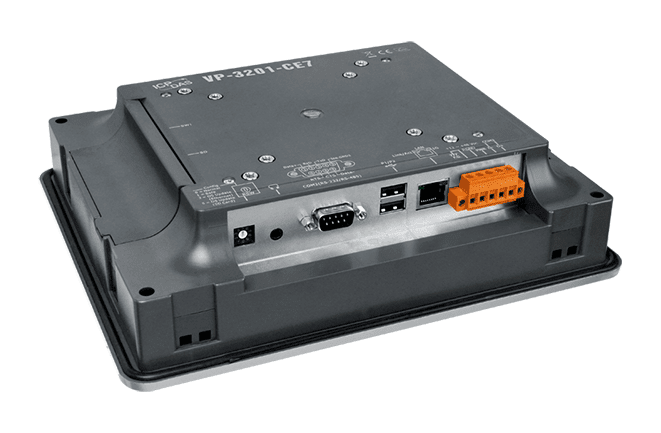

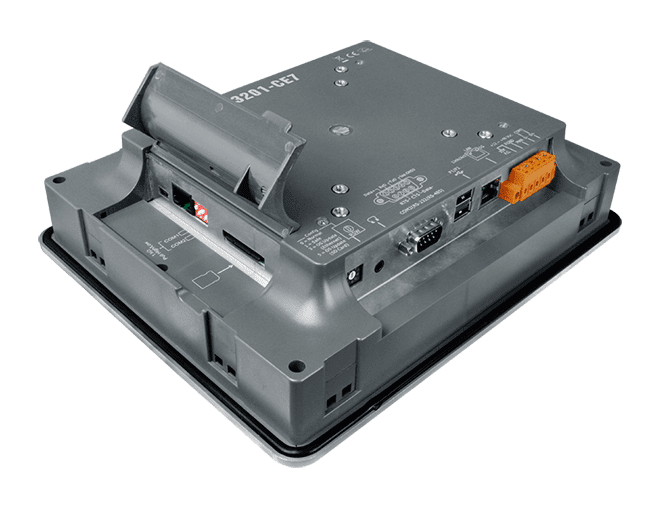

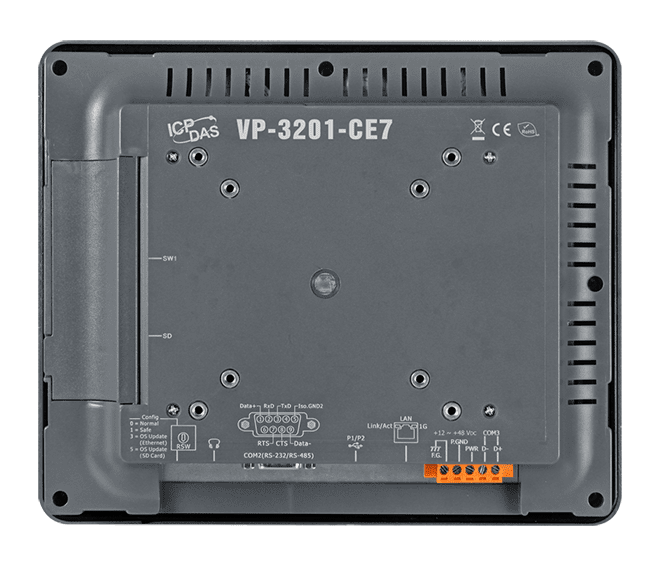

At its core is a 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash. Retained data is stored in 128 KB MRAM and 16 KB EEPROM. Communication is provided by one 10/100/1000BASE-T Ethernet port, one RS-485 port and one RS-232/RS-485 port, both 2500 VDC isolated, plus two USB 2.0 host ports. The unit can be powered from +12 ~ 48 VDC or from PoE.
The 8.4-inch 800 x 600 TFT display has a 5-wire resistive touch panel and runs Windows CE 7.0 with hard real-time capability. The IP65 front panel and fanless design are rated for an operating range of -10 ~ +60 °C, and the unit mounts in a panel cut-out or on a VESA mount.
Applications
- HMI operator panels
- Data acquisition
- Machine control in panel-mounted installations
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| PoE: | Yes |
| Isolation: | 2500 VDC (COM ports), 1 kV (power) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel mount, VESA |
| Housing: | Plastic, IP65 front panel |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | SD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 8.4" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC (1 kV Isolated ) |
| Consumption | 7.5 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 249 x 207 x 64 (W x L x H) |
| Panel Cut-out (mm) | 235 x 193, ±1 (W x H) |
| Installation | Panel mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 1325 g |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
