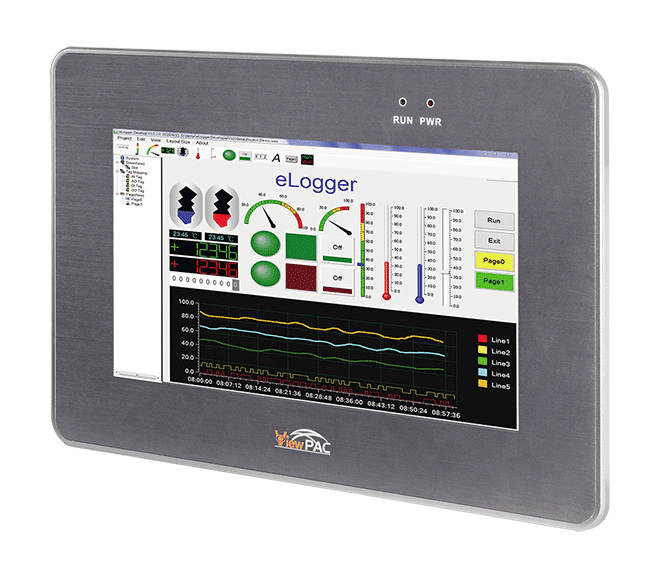

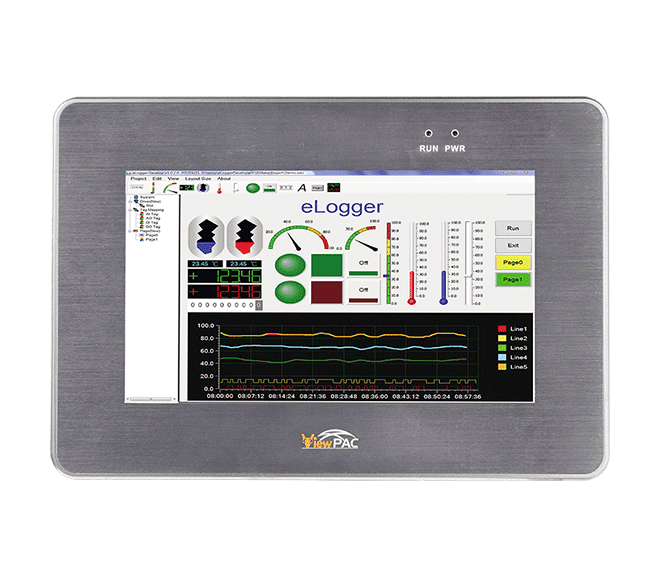

VP-2201-CE7 7-inch WinCE ViewPAC with Cortex-A8 CPU and Touch Panel
7-inch touch ViewPAC combining HMI, control and data acquisition in one panel-mount unit, running Windows CE 7.0 on a 1 GHz Cortex-A8 CPU.
- 1.0 GHz Cortex-A8 CPU running Windows CE 7.0
- 7-inch 800 x 480 TFT LCD with 4-wire resistive touch panel
- 512 MB DDR3 SDRAM, 256 MB flash and 128 KB MRAM plus 16 KB EEPROM for data retention
- 1 x 10/100/1000BASE-T Ethernet, 2 x RS-232/RS-485 (2500 VDC isolated), 2 x USB 2.0 host
- Built-in real-time clock and dual watchdog timer
- 64-bit hardware serial number for software protection
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-2201-CE7 7-inch WinCE ViewPAC with Cortex-A8 CPU and Touch Panel"
The VP-2201-CE7 CR is a 7-inch ViewPAC that brings operator interface, computing and I/O together in a single panel-mount unit. It suits machine and process applications where a local touch screen, control logic and data acquisition need to share one device rather than separate HMI and PAC hardware.
Platform and display: The unit is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB flash, running Windows CE 7.0. The 800 x 480 TFT LCD uses a 4-wire resistive touch panel, and a microSD slot (up to 32 GB) provides additional storage. Non-volatile MRAM and EEPROM support data retention.

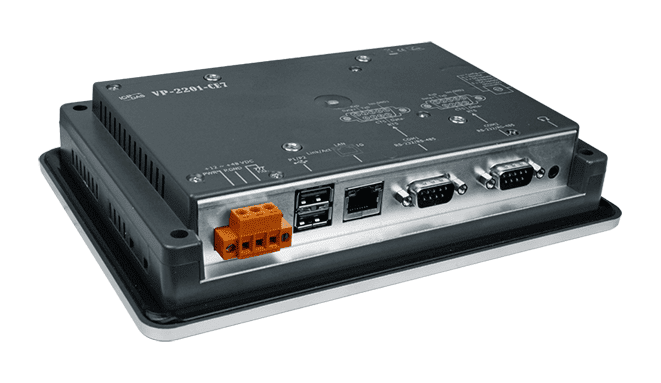

Connectivity includes one 10/100/1000BASE-T Ethernet port, two RS-232/RS-485 serial ports with 2500 VDC isolation and two USB 2.0 host ports. I/O can be expanded using compatible Ethernet I/O modules and RS-485 I/O modules. The front panel is rated NEMA 4/IP65 and the fanless design is specified for -10 ~ +60 °C operation.
Applications
- Integrated HMI, data acquisition and control in a single panel-mount PAC
- Machine and equipment operator panels
- Local process monitoring with touch-screen control
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Ports: | 1 x Ethernet, 2 x serial, 2 x USB |
| PoE: | Yes |
| Isolation: | 2500 VDC (serial ports) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel, VESA 75 mm |
| Housing: | Plastic, IP65 front panel |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | microSD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 7" (16:9) |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 480 |
| Touch Panel | 4-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |

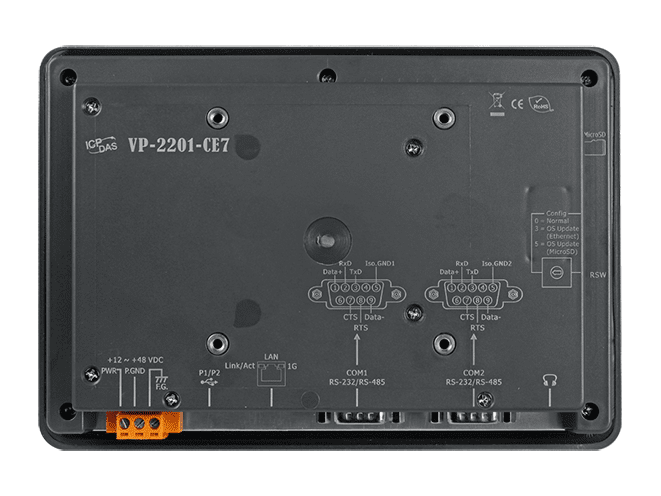

| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 6.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 213 x 148 x 44 (W x L x H) |
| Panel Cut-out (mm) | 197 x 133, ±1 (W x H) |
| Installation | Panel mounting, VESA Mounting (75 mm x 75 mm) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 700 g |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
