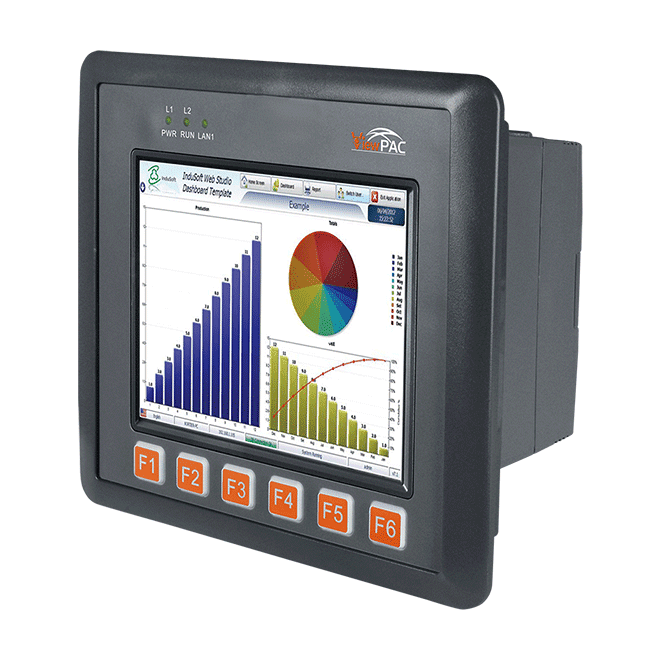

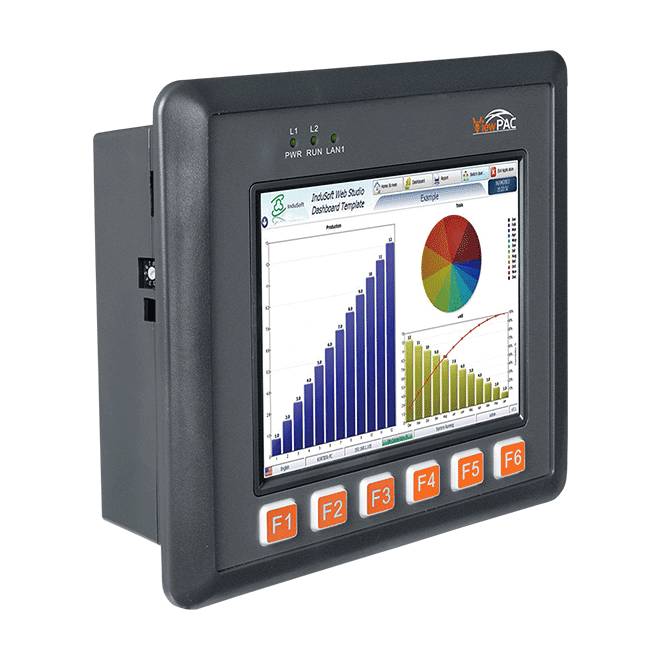

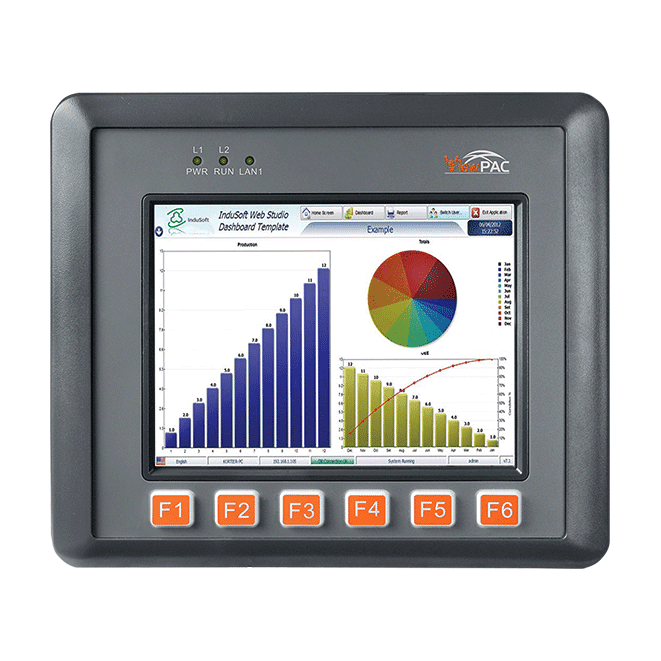

VP-1239-CE7 ViewPAC 5.7-inch Touch HMI/PAC, WinCE 7.0, 3 I/O Slots
VP-1239-CE7 combines a 1 GHz Cortex-A8 controller, 5.7-inch touch display and keypad in one WinCE 7.0 unit, with three slots for I/O modules and InduSoft runtime pre-installed.
- 1 GHz Cortex-A8 CPU running Windows CE .NET 7.0
- 5.7-inch TFT LCD, 640 x 480 resolution, with touch panel
- IP65-rated front panel with rubber keypad of 6 keys
- 3 slots for high-profile I/O modules
- InduSoft Web Studio Runtime pre-installed, 300 tags
- 1 x 10/100/1000Base-TX Ethernet, 1 x RS-232, 1 x RS-485 (2500 VDC isolated)
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-1239-CE7 ViewPAC 5.7-inch Touch HMI/PAC, WinCE 7.0, 3 I/O Slots"
The VP-1239-CE7 is a ViewPAC that brings a programmable controller, graphic display and keypad into a single unit. It suits engineers who want local operator interaction without a separate PC and PLC, combining the functions of a WinPAC, a 5.7-inch touch screen and a six-key rubber keypad.

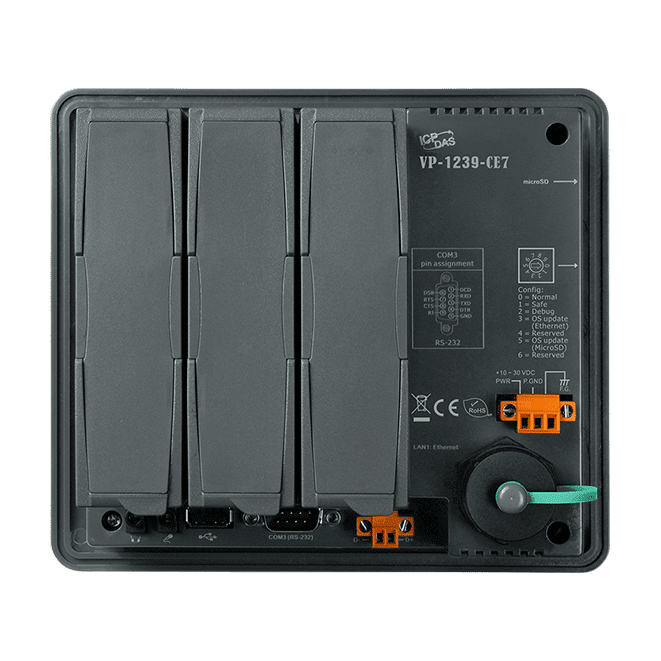

The unit runs a 1 GHz Cortex-A8 CPU under Windows CE .NET 7.0 and comes with InduSoft Web Studio Runtime pre-installed, for HMI, SCADA and embedded control applications. Three slots accept high-profile I/O modules, and the front panel is rated IP65. Connectivity includes one 10/100/1000Base-TX Ethernet port, one non-isolated RS-232 port, one 2500 VDC isolated RS-485 port and two USB connectors.
This ordering code is the 300-tag InduSoft variant with the 5.7-inch display and 3 I/O slots. Its operating range of -20 to +70 °C and 10 to +30 VDC supply make it suitable for panel-mounted installations where a compact, all-in-one controller is required.
Applications
- HMI and operator panels
- SCADA systems
- Embedded instrumentation and control
- Replacing separate IPC and PLC installations in compact systems
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Protocol: | Web HMI |
| Ports: | 1 Ethernet, 2 serial, 2 USB |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -20 ~ +70 °C |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE.NET 7.0 |
| Protocol | Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem. |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (32-bit and 1 GHz) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | SDRAM 128 MB |
| Storage | Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| Watchdog Timer | Yes |
| Display | |
| Size | 5.7" TFT (Resolution 640 x 480) |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 3 x Power and Communication |
| I/O Expansion | |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 7.2 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
