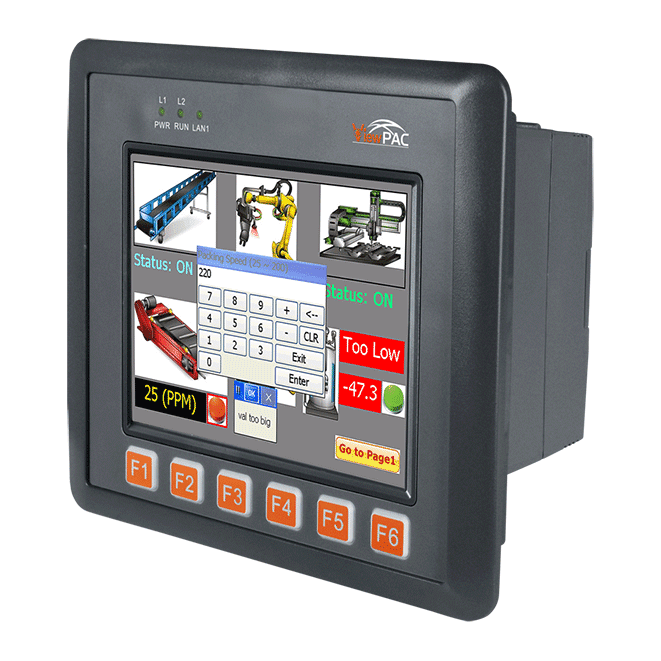

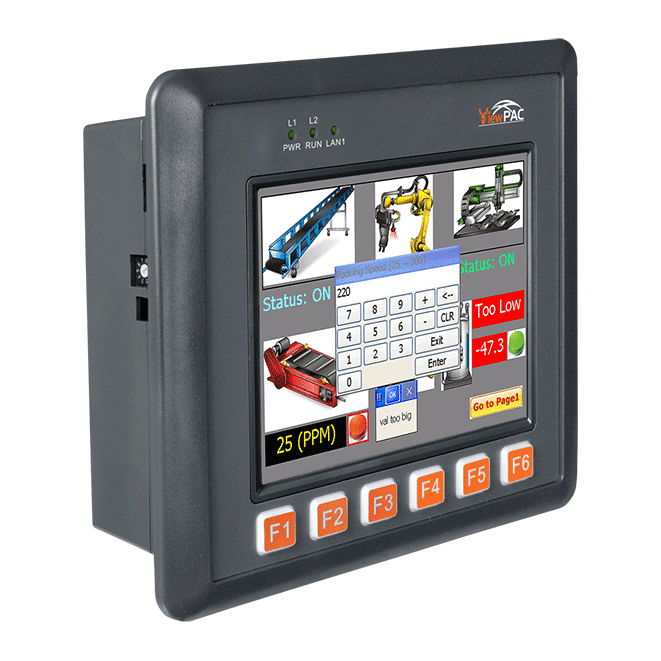

VP-1238-CE7 Win-GRAF ViewPAC, 5.7-inch Touch HMI/PAC with 3 I/O Slots
Win-GRAF ViewPAC with a 5.7-inch TFT LCD, 1 GHz Cortex-A8 CPU and Windows CE 7.0. It runs embedded IEC 61131-3 logic and takes three I-8K or I-87K I/O modules.

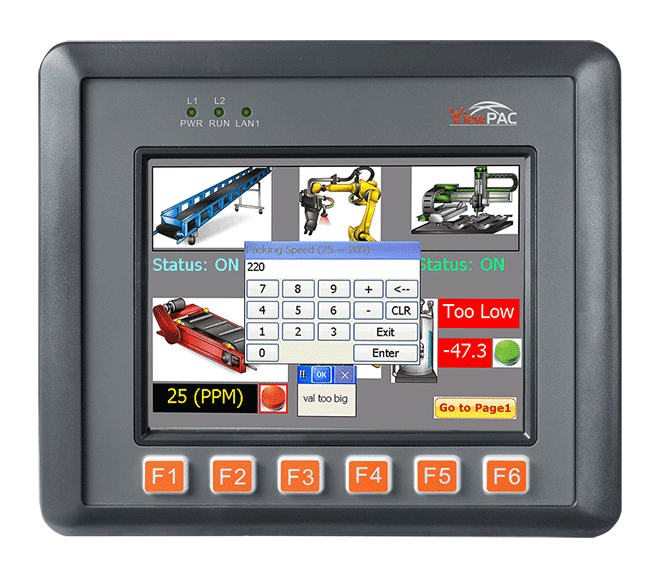

- 5.7-inch TFT LCD (640 x 480) with 4-wire resistive touch panel and 6-key rubber keypad
- Cortex-A8 CPU, 1.0 GHz, running Windows CE 7.0 with 512 MB SDRAM and 256 MB Flash
- Embedded Win-GRAF SoftLogic for IEC 61131-3 logic control, with hard real-time capability
- Three slots for high-profile I-8K or I-87K I/O modules
- Modbus TCP/IP and RTU master/slave, Modbus ASCII master, OPC UA server and DCON protocol support
- Ethernet 10/100/1000 Base-TX, RS-232, RS-485 (2500 VDC isolated) and USB 2.0 ports
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-1238-CE7 Win-GRAF ViewPAC, 5.7-inch Touch HMI/PAC with 3 I/O Slots"
The VP-1238-CE7 combines a 5.7-inch touch display with a programmable automation controller in one panel-mounted unit. Its 1 GHz Cortex-A8 processor runs Windows CE 7.0 and the embedded Win-GRAF SoftLogic environment, so control logic written to IEC 61131-3 can run alongside the operator interface on the same device.

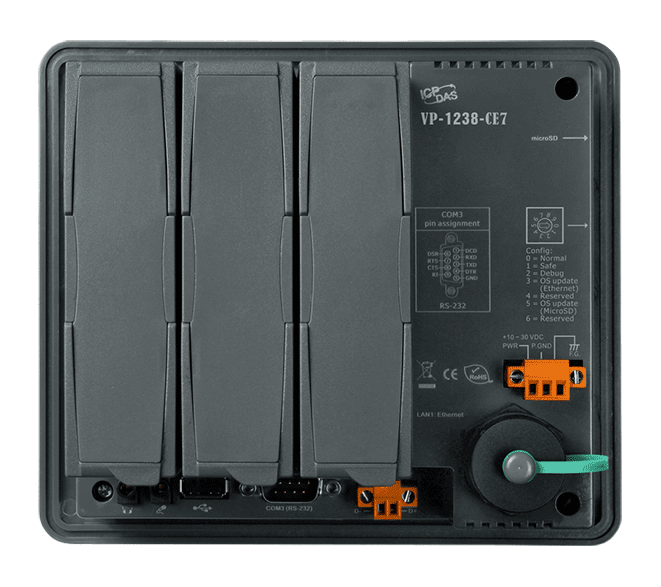

Three slots accept high-profile I-8K parallel or I-87K serial I/O modules, allowing the controller to be configured for the signals an installation needs. Communication options include OPC UA, Modbus TCP/IP and Modbus RTU, together with DCON and user-defined protocols. Engineers can build the HMI with the included eLogger tool or with Visual Studio 2008 (VB .NET or C#).
The front panel is rated NEMA 4/IP65, and the unit is designed for panel mounting with a 153 x 136 mm cut-out. The CR suffix in the ordering code identifies the RoHS-compliant version of this model.
Applications
- Operator panels combining HMI and PLC-style control on one device
- Machine control with local data logging and file access
- Panel-mounted monitoring and control in industrial cabinets
| Product type: | HMI/PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0 |
| Protocol: | Modbus RTU, Modbus TCP, OPC UA |
| Ports: | 4 |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic, IP65 front panel |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocol • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB SDRAM, 256 MB Flash |
| Storage | 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | LCD |
| Size | 5.7" (4:3) |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 640 x 480 |
| Touch Panel | 4-wire, resistive type |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 0.3 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Panel Cut-out (mm) | 153 x 136, ±1 (W x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 1.5 Kg |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
