VP-1231-CE7 5.7" WinCE ViewPAC with Cortex-A8 CPU and 3 I/O Slots
A 5.7-inch WinCE 7.0 ViewPAC combining a 1 GHz Cortex-A8 controller, touch TFT display and three I/O expansion slots for local HMI, data acquisition and control.
- 1 GHz Cortex-A8 CPU running Windows CE 7.0 with hard real-time capability
- 5.7-inch 640 x 480 TFT LCD with 4-wire resistive touch panel
- 512 MB SDRAM, 256 MB Flash, microSD storage up to 32 GB, 128 KB MRAM and 16 KB EEPROM for data retention
- 1 x 10/100/1000BASE-T Ethernet, 1 x RS-232, 1 x RS-485 (2500 VDC isolated), 1 x USB 2.0 host
- 3 x I/O expansion slots for I-8K and I-87K series modules
- Built-in real-time clock, dual watchdog timer and 64-bit hardware serial number
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "VP-1231-CE7 5.7" WinCE ViewPAC with Cortex-A8 CPU and 3 I/O Slots"

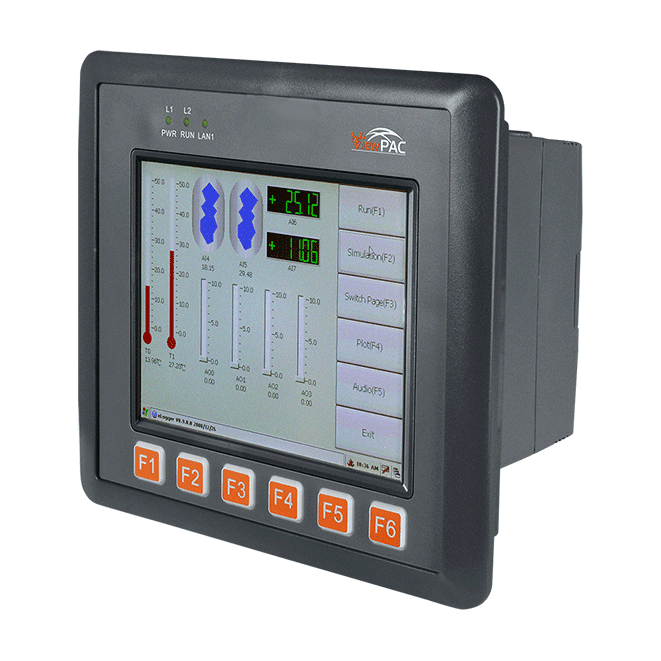

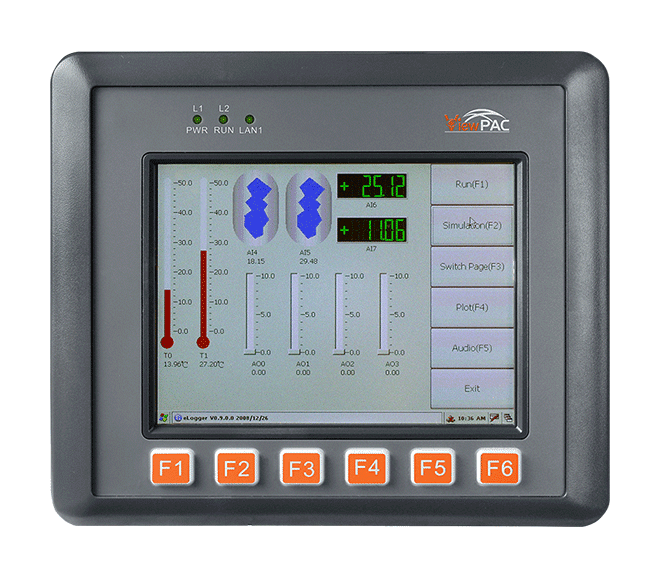

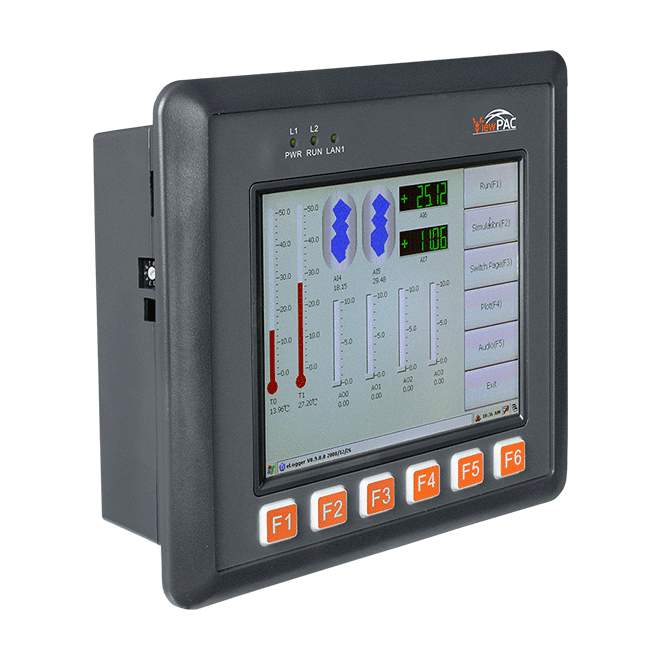

VP-1231-CE7 CR is a ViewPAC that brings computing, I/O and operator interface into one panel-mounted unit. Its 5.7-inch 640 x 480 TFT display with resistive touch panel lets operators work directly on the machine, while the controller handles logic and data acquisition in the same housing.
The 1 GHz Cortex-A8 processor runs Windows CE 7.0, which is a componentised, hard real-time operating system. Memory includes 512 MB SDRAM, 256 MB Flash and a microSD slot for storage of up to 32 GB, with 128 KB MRAM and 16 KB EEPROM for retaining data. The unit also provides a built-in real-time clock, a 64-bit hardware serial number for software protection and a dual watchdog timer.

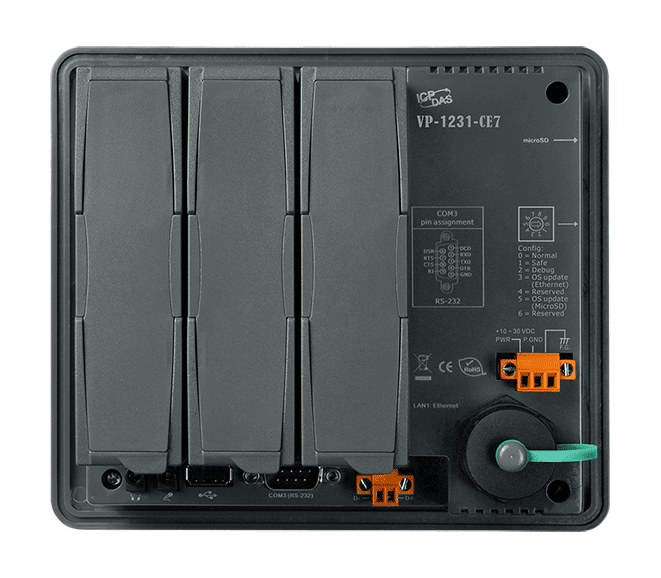

Local expansion uses three I/O slots that accept I-8K and I-87K series modules. Connectivity comprises one 10/100/1000BASE-T Ethernet port, one RS-232 and one RS-485 port (2500 VDC isolated) and one USB 2.0 host port. The fanless design has a front panel rated NEMA 4/IP65 and an operating range of -20 ~ +70 °C.
Applications
- HMI and operator interface on machines and panels
- Data acquisition and local control
- Industrial automation with local and remote I/O expansion
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0 |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic, IP65 front panel |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB SDRAM, 256 MB Flash |
| Storage | microSD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 5.7" (4:3) |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 640 x 480 |
| Touch Panel | 4-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 0.3 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Panel Cut-out (mm) | 153 x 136, ±1 (W x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 675 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
