VEX-112i PCI Express Serial Board, 2-port Isolated RS-232
PCI Express serial communication card with 2 isolated RS-232 ports, a 128-byte hardware FIFO per port and speeds up to 115200 bps for connecting industrial serial devices.
- PCI Express x1 card with 2 RS-232 ports
- 128-byte hardware FIFO per port and full-duplex operation
- Baud rates from 50 to 115200 bps with 5 to 8 data bits, 1 to 2 stop bits and five parity options
- 2500 VDC isolation on each serial port (i version)
- ±4 kV ESD protection (i version)
- 8-bit DIP switch COM-Selector for manual COM port numbering or automatic assignment by the driver
1 464,78 kr per stk.
| 1–9 stk. | 1 464,78 kr | |
|---|---|---|
| 10–30 stk. | 1 423,22 kr | −3 % |
| 31+ stk. | 1 392,06 kr | −5 % |
Produktinformasjon "VEX-112i PCI Express Serial Board, 2-port Isolated RS-232"

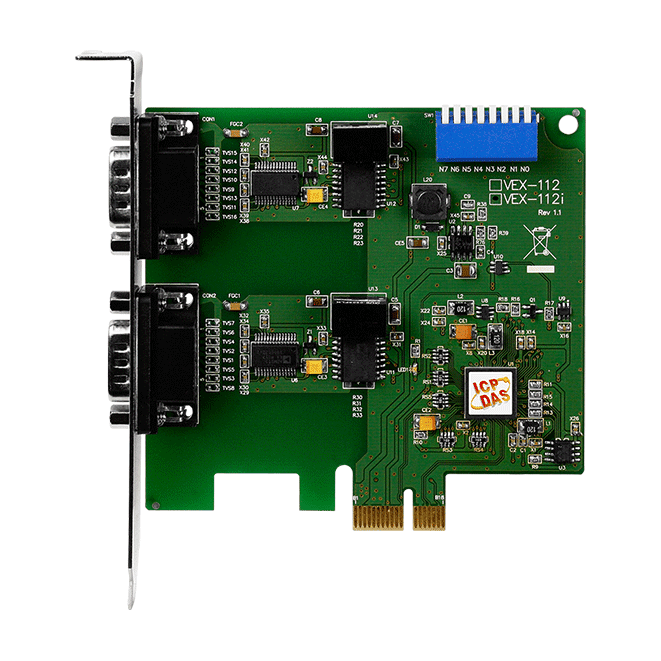

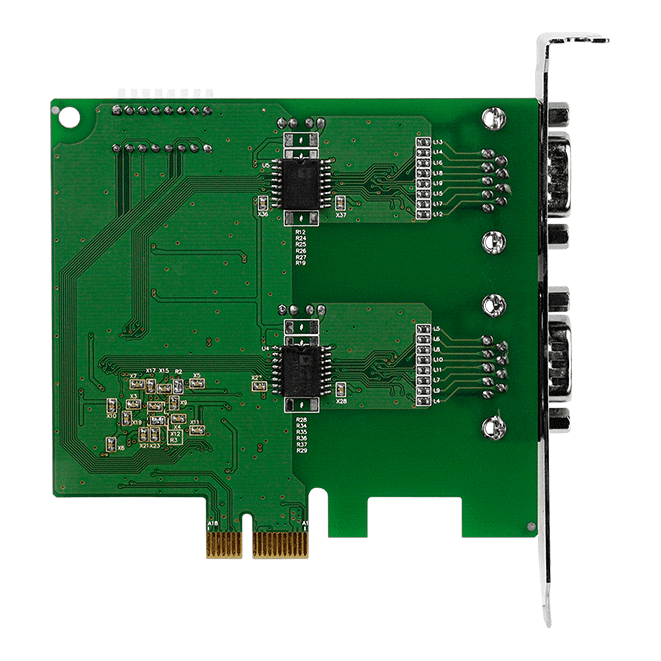

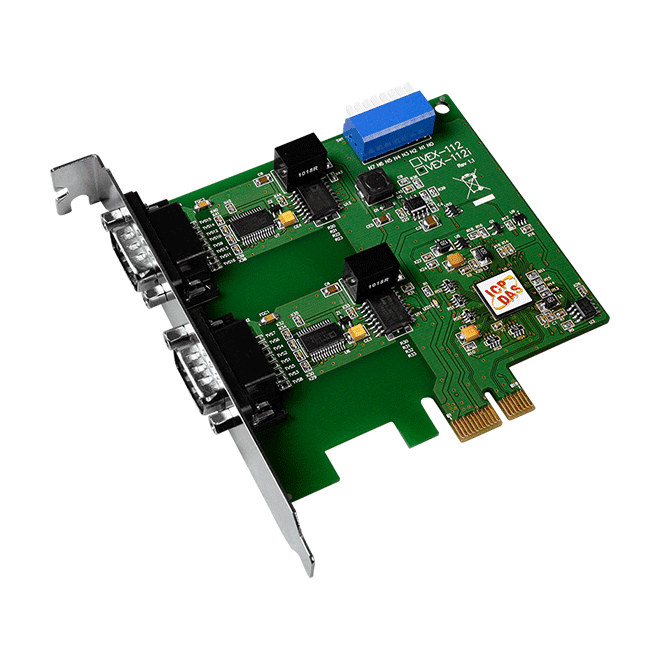

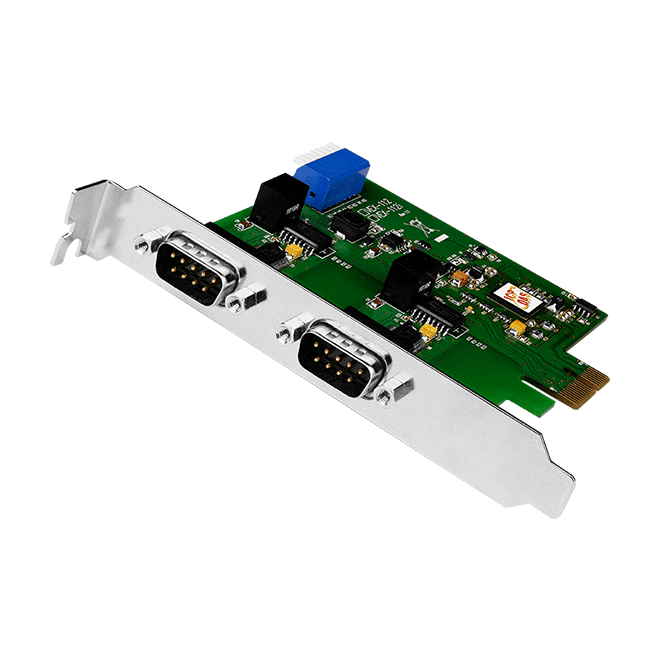

VEX-112i CR is a PCI Express x1 serial communication card that adds two RS-232 ports to a host PC. Each port has a 128-byte hardware FIFO and supports full-duplex communication at up to 115200 bps, which suits engineers connecting bar code readers, serial printers, intelligent sensors and instrumentation to a Windows system.
Port addressing is flexible. A DIP switch lets you assign a specific COM port number manually, or the driver can select a free number automatically. Under Windows the driver provides up to 128 KB of software buffer per COM port, which helps with large file transfers.
The i version isolates the data lines of each serial port with photocouplers rated at 2500 VDC, reducing ground loops and common mode voltage problems. On-board ESD protection rated at ±4 kV diverts damaging static discharge away from sensitive circuitry. The short card design fits compact PCI Express slots.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | Serial communication board |
|---|---|
| Interface: | PCI Express |
| Ports: | 2 x RS-232 |
| Isolation: | 2500 VDC |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | 2 x DB9 (Male) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 2 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Isolation | 2500 VDC |
| Power | |
| Consumption | 440 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 94 x 110 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
