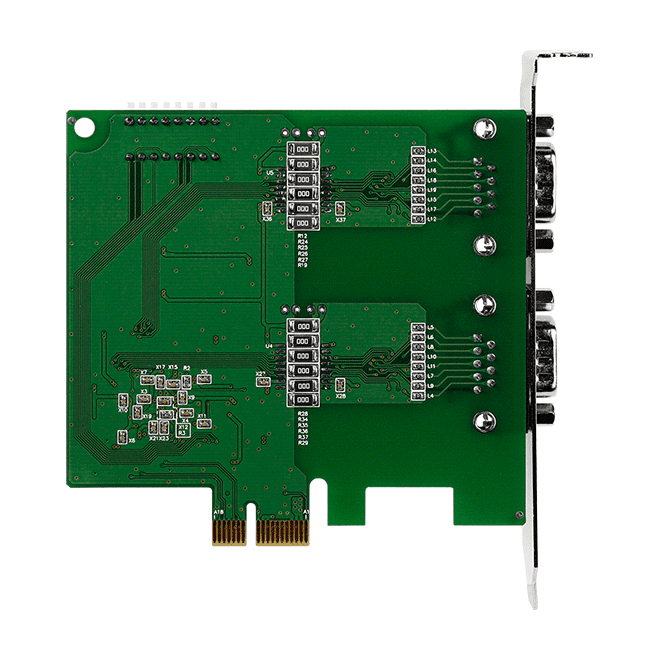

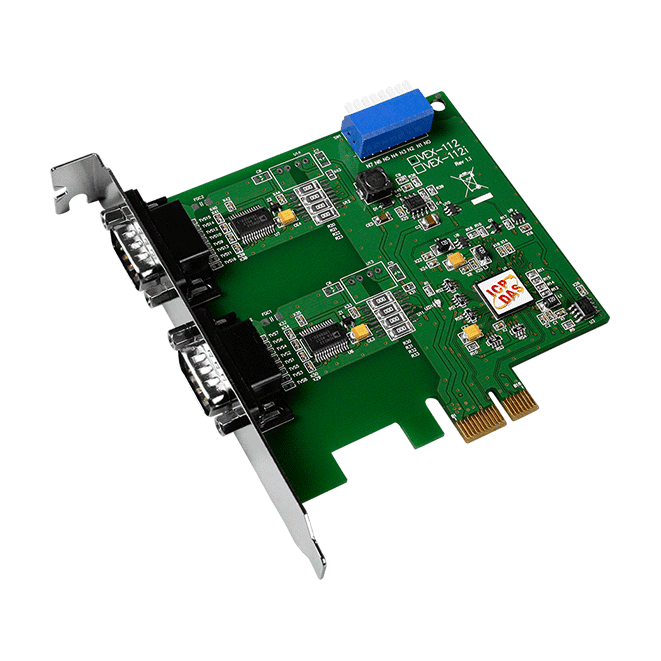

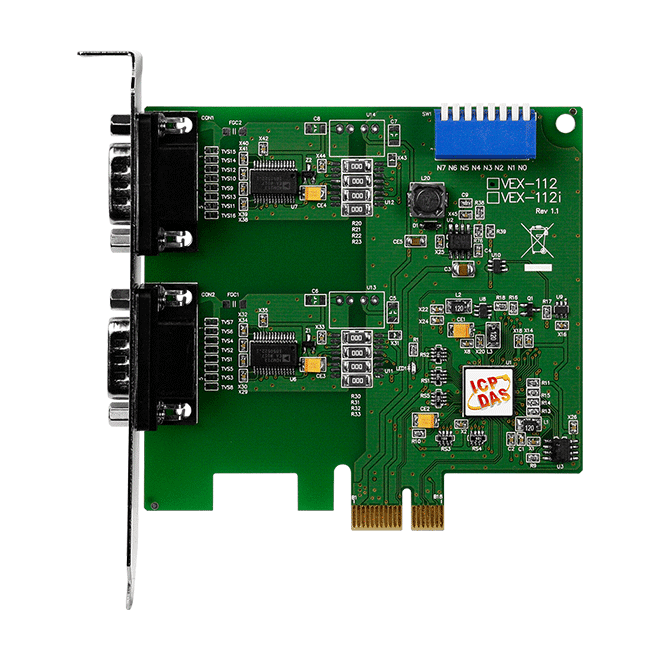

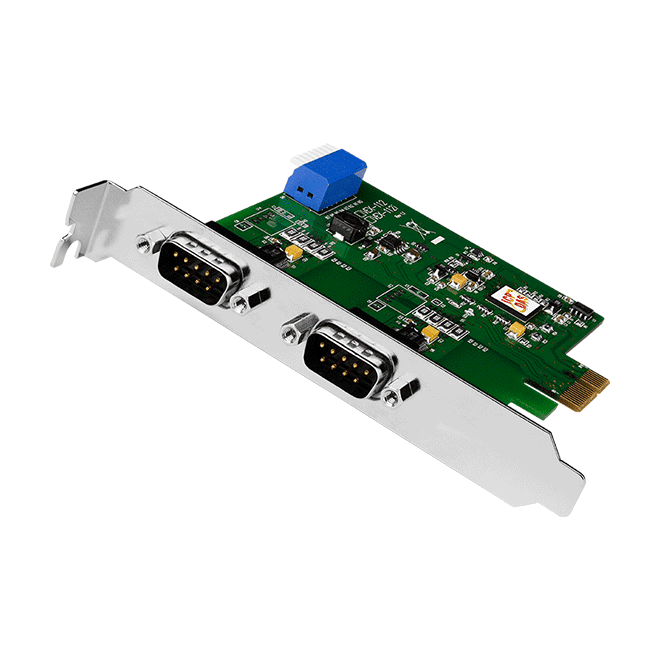

VEX-112 PCI Express Serial Board, 2-Port RS-232
PCI Express x1 serial communication card with 2 RS-232 ports, a 128-byte hardware FIFO per port and speeds up to 115200 bps for PCs.
- PCI Express x1 interface in a short card design
- Two RS-232 ports on DB9 male connectors
- 128-byte hardware FIFO for each port
- Baud rates from 50 to 115200 bps with full-duplex communication
- COM port number set by 8-bit DIP switch or assigned automatically by the driver
- Up to 128 KB software buffer per COM port under Windows
862,25 kr per stk.
| 1–9 stk. | 862,25 kr | |
|---|---|---|
| 10–30 stk. | 841,47 kr | −2 % |
| 31+ stk. | 820,69 kr | −5 % |
Produktinformasjon "VEX-112 PCI Express Serial Board, 2-Port RS-232"
VEX-112 CR adds two RS-232 serial ports to a PCI Express x1 slot, giving PCs a practical way to connect bar code readers, serial printers, intelligent sensors and instrumentation equipment.
Each port has a 128-byte hardware FIFO and runs at up to 115200 bps in full-duplex mode. COM port numbers can be set with the 8-bit DIP switch or assigned automatically by the driver. Under Windows the driver provides up to 128 KB of software buffering per port, which suits large file transfers.
The i-suffixed versions add photocoupler isolation of the data lines and ESD protection, and this ordering code does not include those features. The card uses a short design and lists CE, UKCA, FCC, RoHS and WEEE certifications. The operating temperature range is 0 ~ +60°C.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | PCI Express serial board |
|---|---|
| Interface: | PCI Express x1 |
| Ports: | 2 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | 2 x DB9 (Male) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 2 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 94 x 110 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
