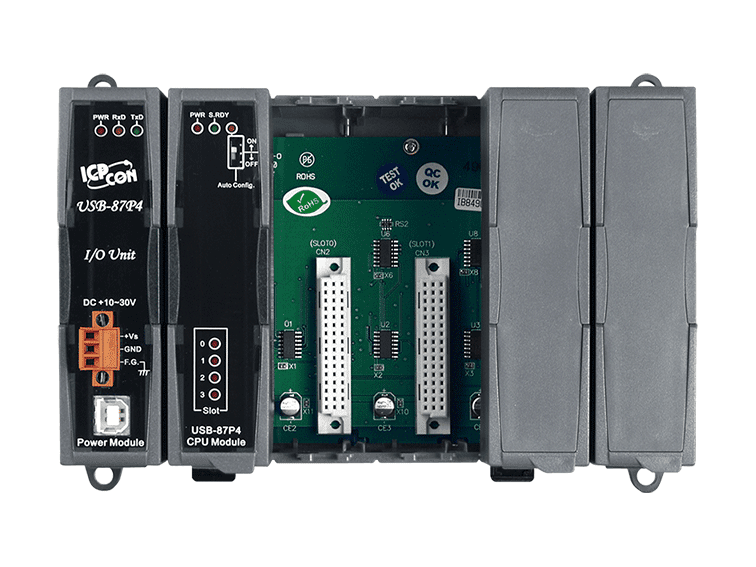

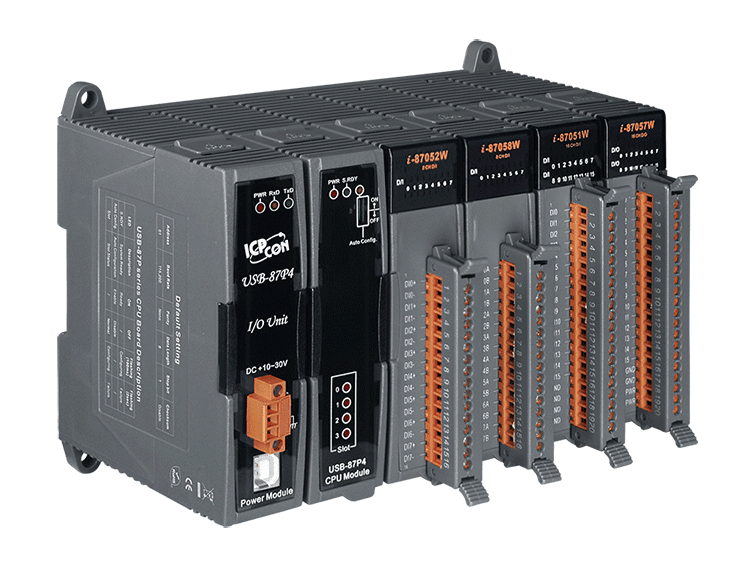

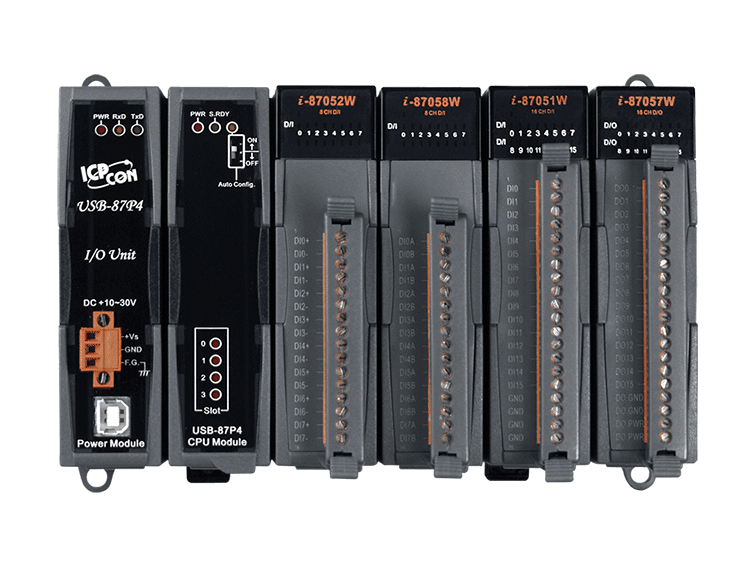

USB-87P4-G USB I/O Expansion Unit, 4-Slot for I-87K I/O Modules
4-slot USB I/O expansion unit for I-87K series modules, with an intelligent CPU and DCON protocol. Gray cover, operating range -25 ~ +75 °C.
- Single USB port for expanding I/O with four slots for I-87K series modules
- DCON ASCII-based protocol handled by an intelligent CPU module
- Hot swap allowed and automatic configuration of plugged-in modules
- LED indicators for power, system, auto configuration and slot status
- Wide 10 ~ 30 VDC power input with isolated power input
- Operating temperature -25 ~ +75 °C, storage -30 ~ +80 °C
2 794,51 kr per stk.
| 1–9 stk. | 2 794,51 kr | |
|---|---|---|
| 10–30 stk. | 2 711,40 kr | −3 % |
| 31+ stk. | 2 659,46 kr | −5 % |
Produktinformasjon "USB-87P4-G USB I/O Expansion Unit, 4-Slot for I-87K I/O Modules"
The USB-87P4-G CR expands I/O over a single USB connection, giving engineers four slots for I-87K series modules. An intelligent CPU module handles communication using the ASCII-based DCON protocol, so modules can be accessed through a simple text command set.
Designed for electrically noisy and harsh sites, the unit accepts a wide 10 ~ 30 VDC input with isolated power, and it operates from -25 ~ +75 °C. Hot swapping, automatic configuration and LED fault indication simplify installation and maintenance, while dual watchdog, programmable power-on and safe-value settings support safe system behaviour.
More than 30 I-87K modules are supported, covering analogue input and output, digital input and output, counter and frequency functions. Software support includes a DLL, LabVIEW driver, InduSoft driver, Linux driver and OPC server.
Applications
- Data acquisition and I/O expansion for USB-connected PCs and systems
- Harsh or electrically noisy industrial environments
- Analogue, digital, counter and frequency I/O monitoring and control
| Product type: | USB I/O expansion unit |
|---|---|
| Interface: | USB |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | Isolated power |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Main Unit | |
|---|---|
| 64-bit Hardware Serial Number | Yes |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 4 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 4 |
| HMI | |
| DIP Switch | 1-bit for auto configuration |
| USB | |
| Connector | 1 x USB (Type B, 3000 VDC) |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 188 x 132 x 111 (W x L x H) |

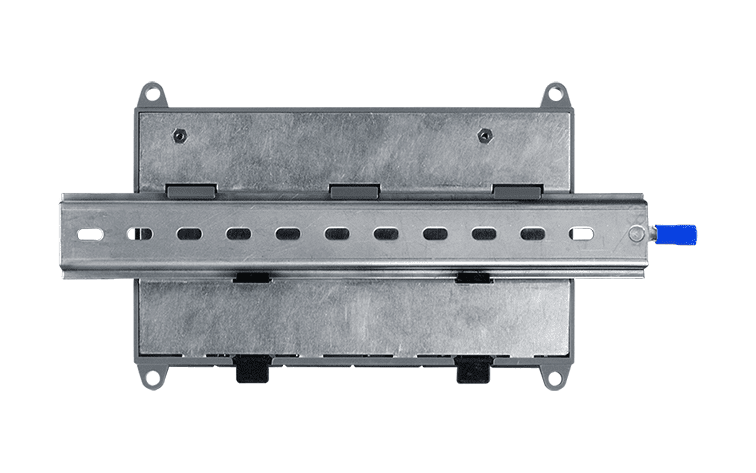

| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
