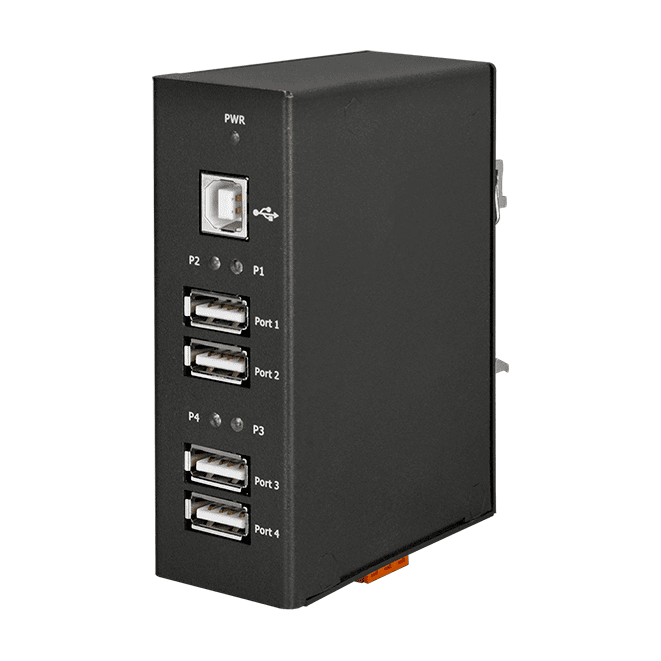

USB-2562M/S Industrial 4-Port USB 2.0 Hub, Metal DIN-Rail Case
Self-powered 4-port industrial USB 2.0 hub in a metal DIN-rail case, supporting 480 Mbit/s high-speed mode. This listing includes the CA-USB18 cable and GPSU06U-6 power supply.
- Four downstream USB 2.0 ports, each supplying up to 500 mA
- High-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) transfer modes
- Self-powered operation only, from a +10 ~ +30 VDC input

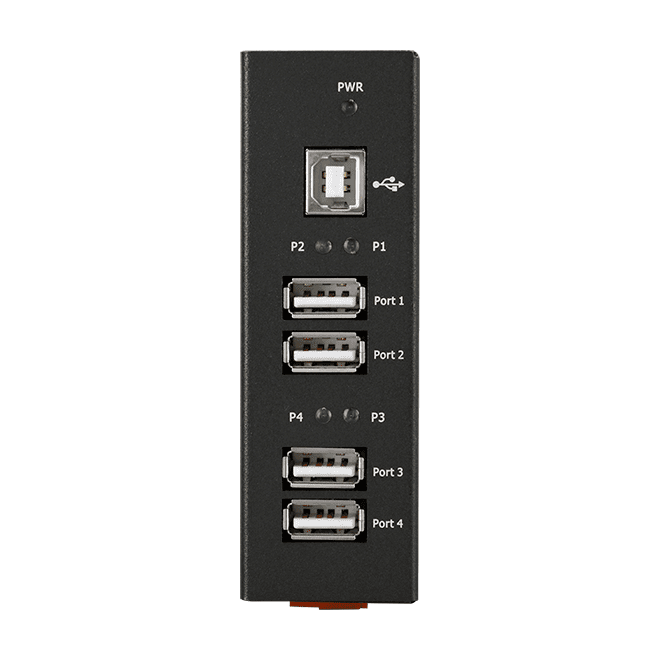

- LED indicators for power and each downstream port

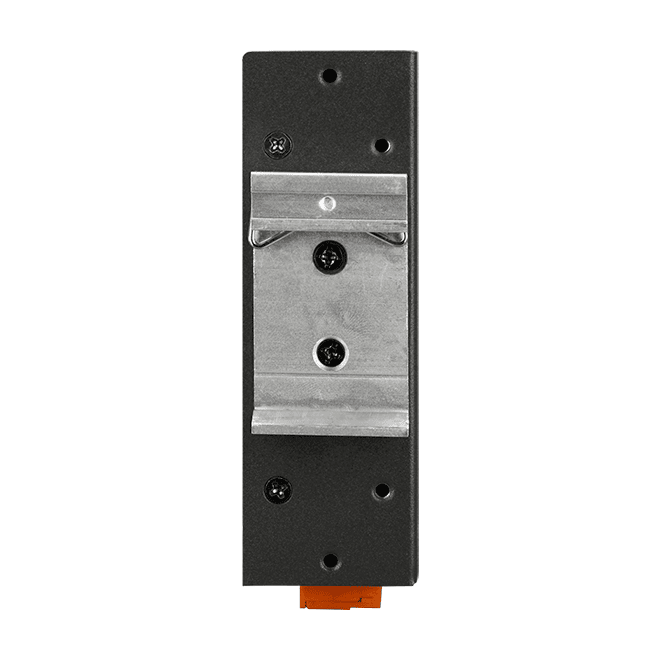

- Metal casing with DIN-rail mounting
- Operating temperature -25 ~ +75 °C, storage -30 ~ +80 °C
1 579,05 kr per stk.
| 1–9 stk. | 1 579,05 kr | |
|---|---|---|
| 10–30 stk. | 1 527,11 kr | −3 % |
| 31+ stk. | 1 495,94 kr | −5 % |
Produktinformasjon "USB-2562M/S Industrial 4-Port USB 2.0 Hub, Metal DIN-Rail Case"
USB-2562M/S is a self-powered 4-port USB 2.0 hub for connecting several USB peripherals to one host in industrial cabinets and control panels. It runs from a +10 ~ +30 VDC supply, so it does not draw power from the host computer, which helps keep connected devices working reliably.
The hub supports high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) transfers, and each downstream port can supply up to 500 mA. LED indicators show the power state and the status of each downstream port, which simplifies commissioning and fault finding.
The metal casing is designed for DIN-rail mounting and is rated for an operating temperature of -25 ~ +75 °C. This listing includes the CA-USB18 USB 2.0 A-male to B-male cable (1.8 m) and the GPSU06U-6 power supply, as stated in the price list description.
Applications
- Connecting multiple USB 2.0 peripherals to an industrial computer in a control cabinet
- Adding USB ports to automation and data acquisition systems mounted on DIN rail
| Product type: | USB Hub |
|---|---|
| Interface: | USB 2.0 |
| Ports: | 4 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 x Power 4 x Downstream Ports |
| USB | |
| Ports | 4 |
| Specification | USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed | 480 Mbit/s-high speed mode 12 Mbit/s- full speed mode 1.5 Mbit/s-low speed mode |
| Supply Current | 500 mA Max. per port |
| Connector | 1 x Upstream (Type B) 4 x Downstream (Type A) |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.25 A @ 24 VDC for 250mA per port. 0.5 A @ 24 VDC for 500mA per port. |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 32 x 108 x 86 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
